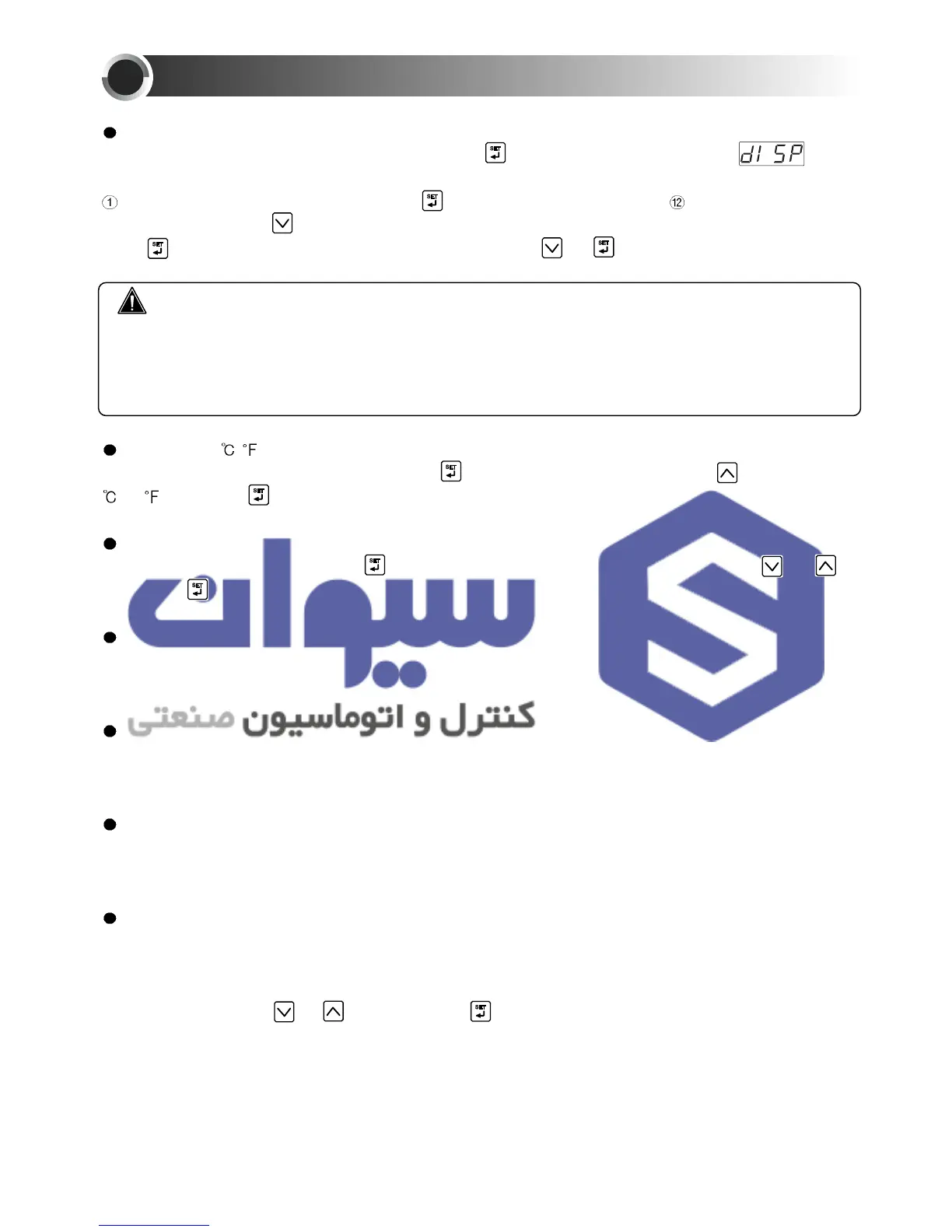

Input type selection
After power ON and when PV is indicating, press key for 3 sec to be displayed at PV
and 3 at SV. (If it is not indicated 3, set again in the level setting mode)
Control group is indicated when press key once more. At the time, input group is
indicated when press key and then “Input type and range selection” is shown at SV when
press . At this time the input and range is selected by or key.
Display unit ( / )
After selecting input type and range, press key to select display unit. Press key to choose
or and press key when finishing selection.
Maximum and Minimum range
After selecting display unit, press key to set Maximum and Minimum range using or
key. Press key once more to finish.
Decimal point
Parameter is not indicated in T.C and R.T.D input, but when selecting voltage input (code
30,32,33), “Decimal point” mode is indicated. (set 1 : 0.0, set 2 : 0.00, set 3 : 0.000)
Maximum and Minimum on scale
It is the same function as Maximum and Minimum range setting when R.T.D or thermocouple
input. This mode is indicated when voltage input ( 30, 32, 33 )
PV filter
When PV value becomes unstable due to effects of noise, the filter helps suppress the unstable
status. (Range: OFF or 1 ~ 120 sec. Initial value: OFF)
PV bias
Use this function to adjust PV value in cases where it is necessary for PV value to agree with
another recorder or indicator, or when the sensor cannot be mounted in correct location.
(Range : -100.0 ~ 100.0 % of SPAN, lnitial value : 0.0 %)
Setting a value using or key and press key to finish.
INPUT GROUP SETTING
When setting, “Input type selection number” must be selected in the input type selection
mode and also “Output type selection number” must be selected in the output type selection
mode before moving to other mode.
If not, data of other group will be changed to prior value.
