Checklist
•
Make certain loudspeakers are Powered
OFF
and Levels
turned down.
•
Connect the Mixer’s Main Left Output to the Left Input of the Left
subwoofer 1.
•
Connect the Output L of Left Subwoofer1 to the L Input of Left
subwoofer 2.
•
Connect the HP Output L of Left Subwoofer1 to the Input of Left
Mainspeaker 1.
•
Connect the HP Output of Left Subwoofer2 to the Input of Left
Mainspeaker 2.
•
Connect the Mixer’s Right Output to the R Input of the Right
subwoofer 1.
•
Connect the Output R of right Subwoofer1 to the R Input of
Right subwoofer 2.
•
Connect the HP Output R of Right Subwoofer1 to the Input of
Right Mainspeaker 1.
•
Connect the HP Output of Right Subwoofer2 to the Input of
Right Mainspeaker 2.
•
Set the Low Cut switch on the Main Speakers to OFF.
•
Power
ON
Mixer, then Power
O
N
Subwoofers, then Power ON
all speakers
•
Bring the Mixer’s volume up to normal operating level.
•
Adjust the Level controls on the HP series loudspeakers.
•
Do not adjust the Level so high that the Red LIMIT LED is
constantly lit.

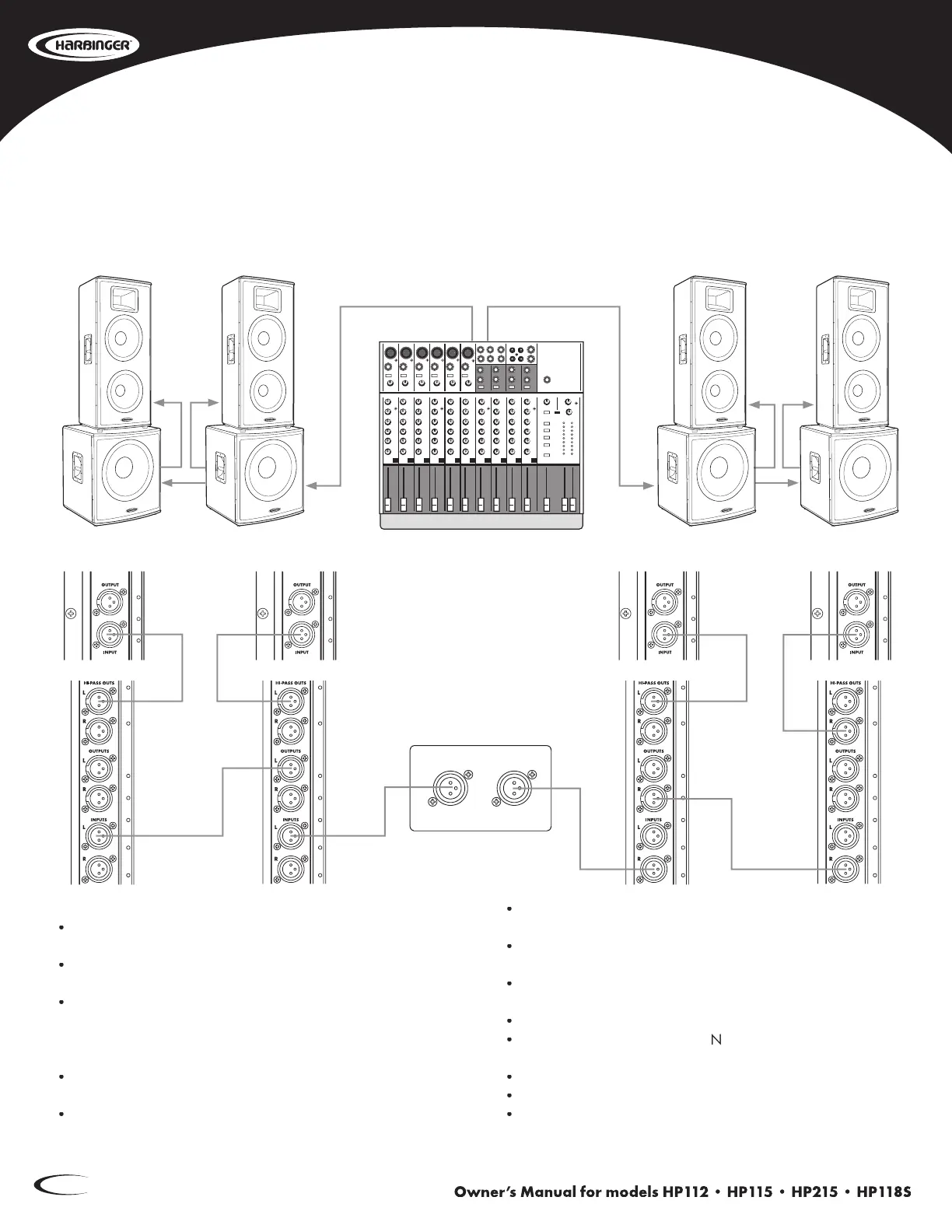

Linking Multiple HP Subwoofers and Main Speakers
MAIN OUTPUT
LR
