SKU 92304 For technical questions, please call 1-800-444-3353. Page 4
Assembly/ Operation
Your Airplane with Radio Controller will require complete assembly. It is important that you read the
entire manual to become familiar with the product BEFORE you use the Airplane. Before assembling the
Airplane be sure that you have all parts described in the Parts List and Assembly Diagram, below.
REV 12/04; 03/05; 04/05; 05/05; 10/05; 12/05
NOTE: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts.

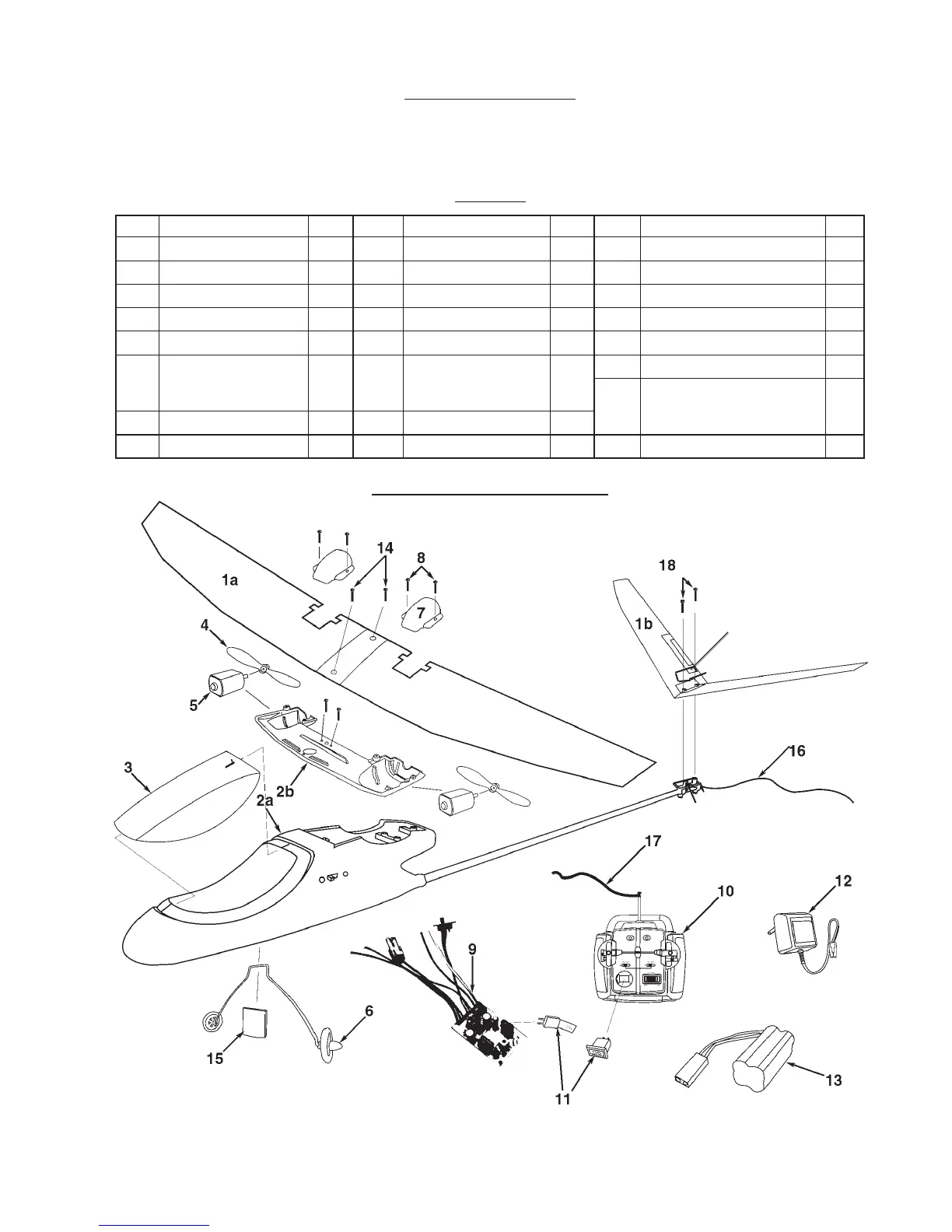

Assembly and Parts Diagram
Parts List
Part Description Qty Part Description Qty Part Description Qty
1a Main Wing 1 6 Landing Gear 1 13 Rechargeable Battery Pack 1
1b Tail Wing 1 7 Motor Housing* 2 14 Wing Mount Screws 2
2a Fuselage 1 8 Motor Housing Screw 4 15 Landing Gear Brace 1
2b Lower Motor Housing* 1 9 Receiver 1 16 Wire Antenna 1
3 Canopy 1 10 Remote Control 1 17 Ribbon 1
4
Propeller
(2 spares included)
4 11
Crystal Set
(Transmitter and
Receiver)
1
18 Tail Wing Screws 2
A
*Motor Housing Set
(Contains Part 2b & Part
7x2)
-
5 Motor 2 12 Charger 1
19 Tail Wing Support Brace 1
19
Tail Wing Bracket
To Next Page
