SKU 92304 For technical questions, please call 1-800-444-3353. Page 5
Landing Gear Assembly
1. Push Landing Gear (6) into the slot located under the front of the Fuselage (2a) - see Figure 2.
2. Insert the Landing Gear Brace (15) into the Fuselage (2a) at the center of the Landing Gear
(6). The Brace (15) has a tab that fits only one way into the Fuselage - see Figure 2, inset.
Battery Charging
1. Plug the Battery Pack (13) into the Charger (12). Plug the Charger (12) into a 120V
electrical outlet. Allow up to three hours for the initial charge. Do not leave unattended
when charging. Disconnect the Battery Pack (13) from the Charger (12) when the charge is
complete-see Figure 4. The batteries will become warm when they are ready for use. If you
feel them becoming overly hot, immediately disconnect the Charger (12).
2. Make certain that the “ON/OFF” Switch for the Airplane is in the “OFF” position. Plug the
Battery Pack (13) into the socket located underneath the Canopy (3). Insert the battery Pack
(13) into the Fuselage (2a) and close the Canopy (3).
3. Remove cover and insert eight “AA” batteries (not included) into the Remote Control (10).
Switch “ON” the “ON/ OFF” Switch on the Remote Control (10).
Wing, Motor and Propeller Assembly
1. Remove the Screws (8) on the Motor Housings (7). Remove the Motor Housings.
2. Attach the Main Wing (1a) to the Fuselage (2a) and thread in Screws (14) - see Figure 1.
3. Insert Motor (5) into each Motor Housing (7). Put the Motor Housing back together again
and replace the Screws (8). Make certain that the assembly is secured and that the Motors
(5) are tightly in place. Make sure that wiring is inside fuselage and does not get pinched
inside any connections or interfere with the proper fit of any parts.
4. Locate both Propellers (4). Place each Propeller (4) onto the shaft of each Motor (5).
5. Set the Tail Wing (1b) into the Tail Wing Bracket (refer to page 4). Place the Tail Wing
Support Brace (19) on top of the Tail Wing (1b) then insert two Screws (18) through the Tail
Wing Support Brace (19) and the Tail Wing (1b) then screw them in.
Set out all parts on a clear and level surface prior to assembly.
REV 12/04; 03/05; 05/05; 10/05; 12/05; 05/06
Motor Housing
Screws (8)
Wing Mount
Screws (14)
Propeller (4)

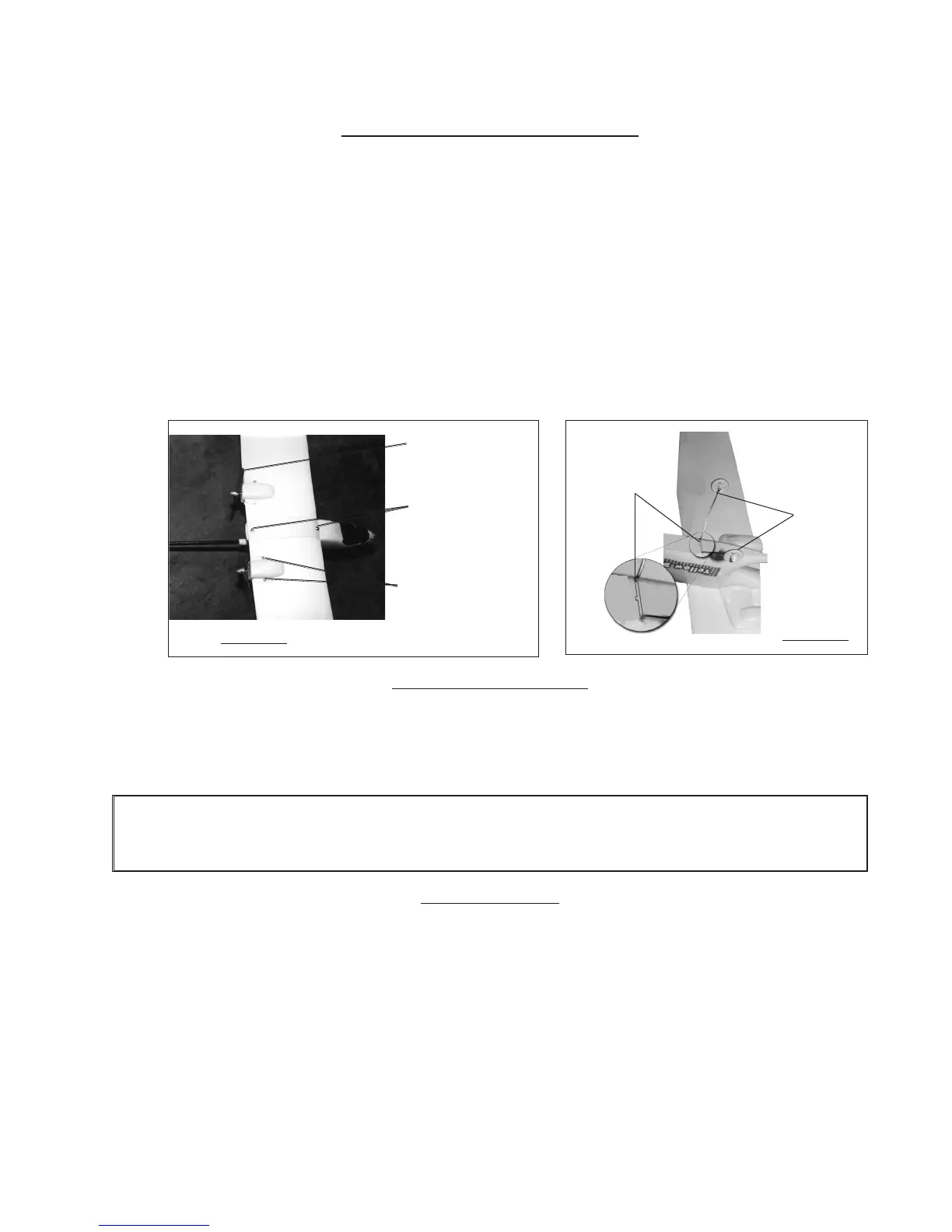

Figure 1
Landing
Gear (6)
Figure 2
Landing
Gear
Brace (15)
IMPORTANT:
If damage is caused due to a crash, your warranty is void.
