4.3 M600 BRASS MANUAL CONTROL OPERATION (SM 50/80)
Spraygun/(Optional Boom) Operation
1. Locate your sprayer in a suitable location to spray water from the
spraygun (and/or optional boom).
2. Fill the tank with clean water.
3. Turn main ON/OFF handle to spraying position 1 (Fig 4).
4. Turn dial 3 (Fig 4) counter clockwise all the way out. This relieves
the pressure on the springs and minimizes start-up problems.
(If optional boom is installed, make sure boom valve 7 (Fig 4) is
closed).
5. Start the engine.
Fluid System Overview
When the 500/600 pump A (Fig 3) is running, pressurized fluid flows
from the tank to the M600 brass manual control B (Fig 3). When the
main ON/OFF valve is “OFF”, fluid is returned to the tank through the
bypass line and agitation nozzle D (Fig 3). When the main ON/OFF
valve is “ON” and the red handle on the spraygun is depressed, fluid
flows to the spraygun C (Fig 3). Optional boom: when main ON/OFF
valve is “ON” and boom valve E* (Fig 4) is open, fluid flows to the
boom F* (Fig 3).

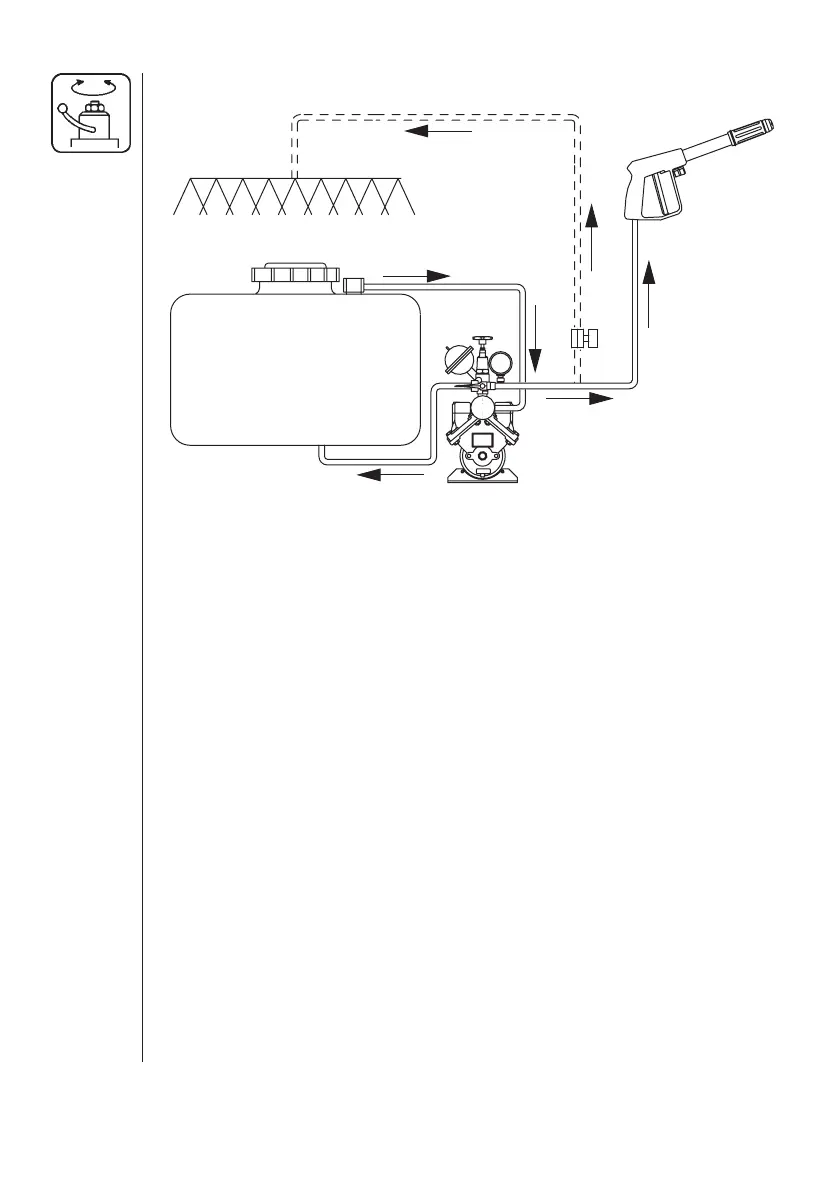

Fig. 3
A
C
F*
TANK
D
B
E*
A. 500/600 Pump
B. M600 Control
C. Spraygun
D. Agitation - (Control Valve Bypass)
E*. Boom Valve (Optional)
F*. Boom (Optional)
