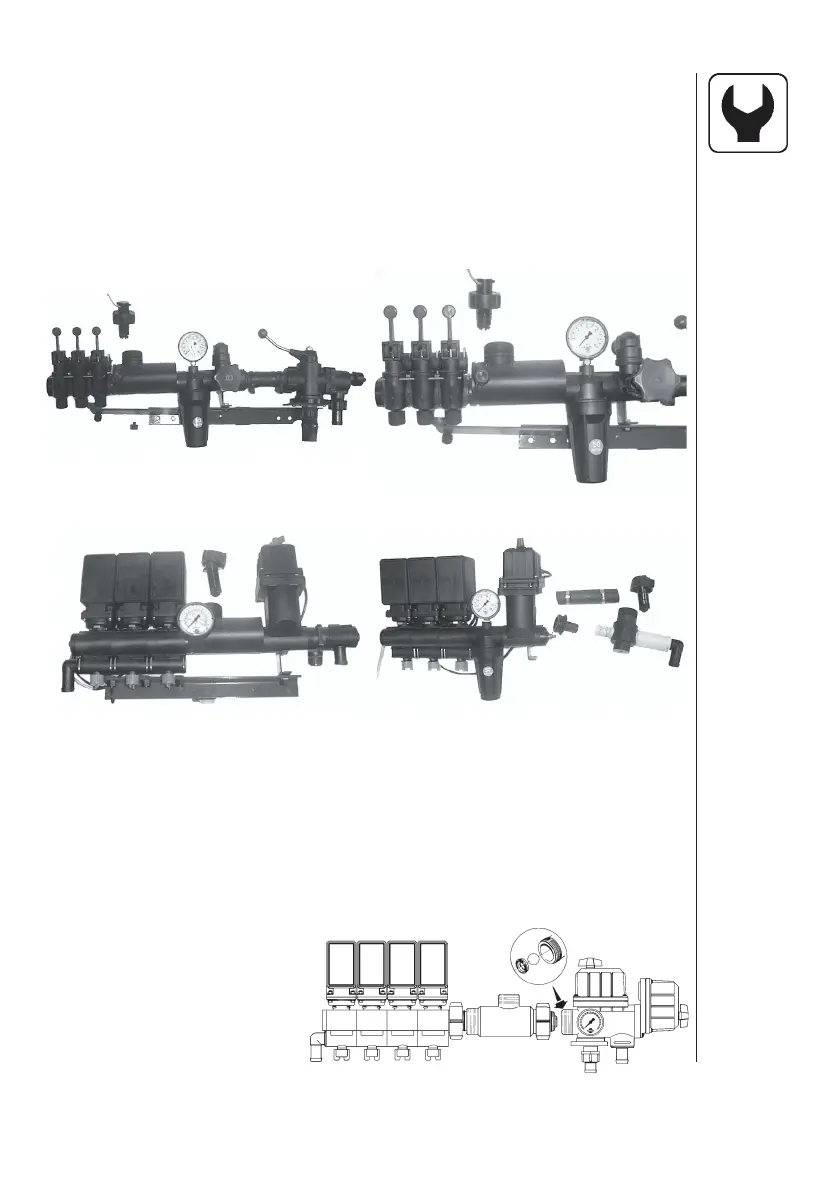

Flow transducer for BK, EVC and ESC control unit
For BK and EVC control unit, the housing is fitted just prior to the
distribution valves. Flow transducer is fitted to the housing and con-
nected to the Scanbox with the a 3 poled plug.
For ESC control unit, the flow housing is fitted just prior to the control
unit on the delivery hose from the pump. Flow transducer is fitted to the
housing and connected to the Scanbox with the a 3 poled plug.
Flow transducer EC control unit
1. The distribution valve unit is detached from the main ON/OFF
valve unit. Note the orientation of the ball seat and remove it from
the distribution valve unit.
2. Mount the flow transducer housing just before the distribution
valves.
3. Attach distribution valves with flow housing with the ball seat on
the end to main ON/OFF valve unit.
4. Flow transducer is fitted
to the housing and
connected to the
Scanbox with the
a 3 poled plug.
BK BK
EVC
ESC
