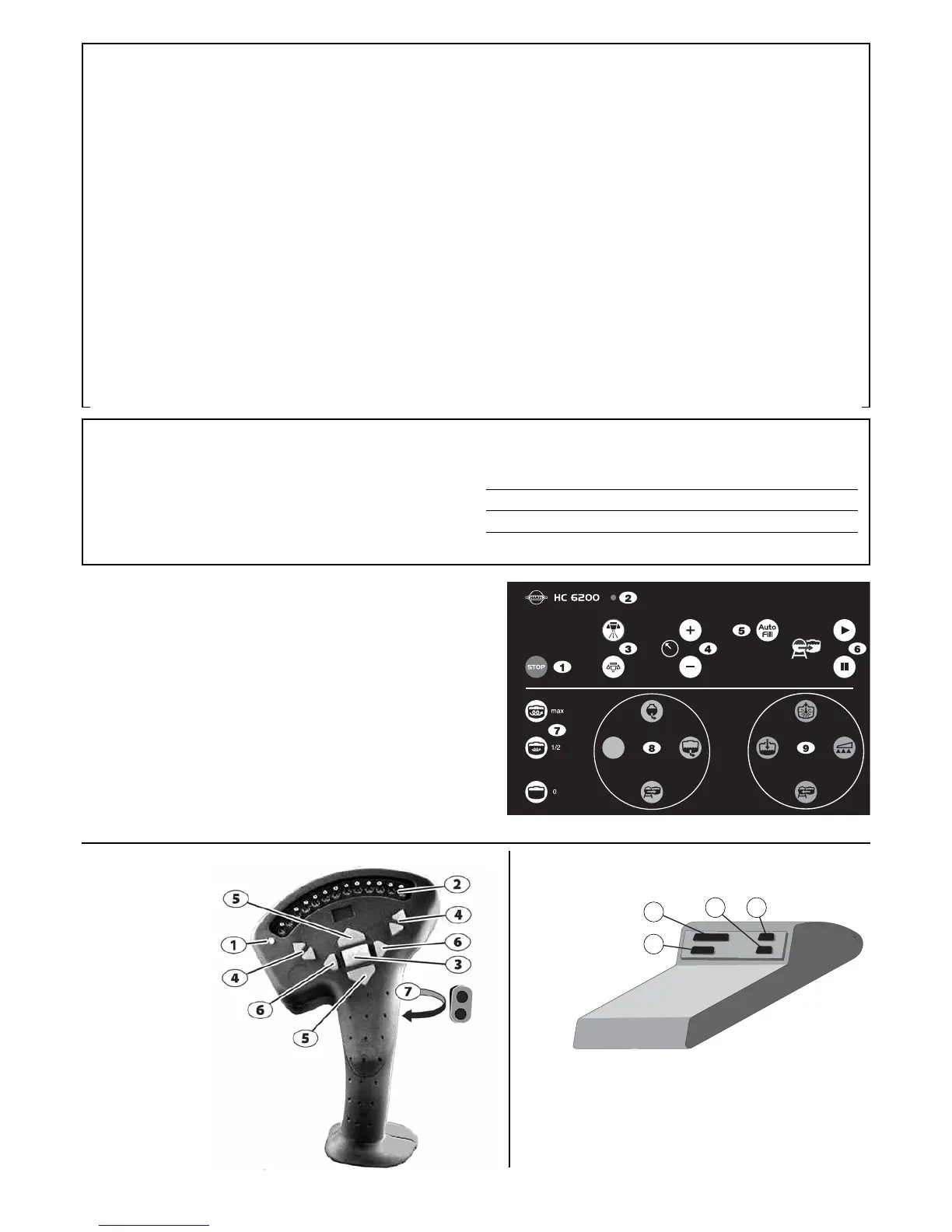

Hardi HC 6500 User Manual

1. Emergency STOP of all functions
2. Status diode
3. Main ON/OFF
4. Spray pressure increase and decrease
5. AutoFill start
6. AutoFill manual start and pause
7. AutoAgitation override control
8. Suction SmartValve override control
9. Pressure SmartValve override control
Basic to get going
Boom data, flow and speed calibration and volume rate
must be entered
Go to the menu on the Controller and find the relevant
section in the instruction book
Boom data
[3.1.1 Width]
[3.3.2 Number of sections]
[3.3.3 Nozzles pr. section]
Flow meter calibration
[3.2.1 FLOW CONSTANT]
The below PPU value is approximate and a practical
calibration is recommended
Volume rate
Press ¥ and hold until
[1.1 VOLUME RATE] is shown
SafeTrack
Hydraulic lever must be activated before the Controller is
turned on
Calibrate before use and when tractor is changed
Speed calibration
Press * and hold until one of the following is shown :
[3.1.1 Sprayer] Sensor on sprayer
[3.1.2 Tractor] Sensor on tractor
[3.1.3 Radar] Sensor is a radar
The practical calibration is recommended
ID Code One outside groove No outside groove
Orifice mm 13.5 20.0
Flow range L /min 5 to 150 10 to 300
Approx. PPU 120.00 60.00
1. Status diode
2. Boom sections
3. Main ON/OFF
4. Tilt
5. Boom height
6. Boom slant
7. TWIN presets
Grip HC 6300
FluidBox HC 6200
C D
A
B
A SetBox 6400
B AUX Cable - 12 Volt (optional)
C Com 1
D Com 2
Grip HC 6300
The standard values for HARDI flow housing is :
