Lubrication
Store lubricants in a clean dry and cool place -
preferably at constant temperature - to avoid contamina-
tion from dirt and condensed water. Keep oil filling jugs,
hoppers and grease guns clean, and clean the lubricat-
ing points thoroughly before lubricating.
Avoid long periods of skin contact with oil products.
Recommended lubrication intervals and lubricants are
as follows:
LUBRICATING POINT LUBRICANT
Ball bearings Universal Lithium grease
NLGI #2 SHELL RETINAX A
CASTROL LM GREASE
Slide bearings Lithium Grease with
Molybdenumdisulphide and
Graphite
SHELL SAS 4000
CASTROL MOLYMAX
Oil lube points Engine Oil
C
B
A

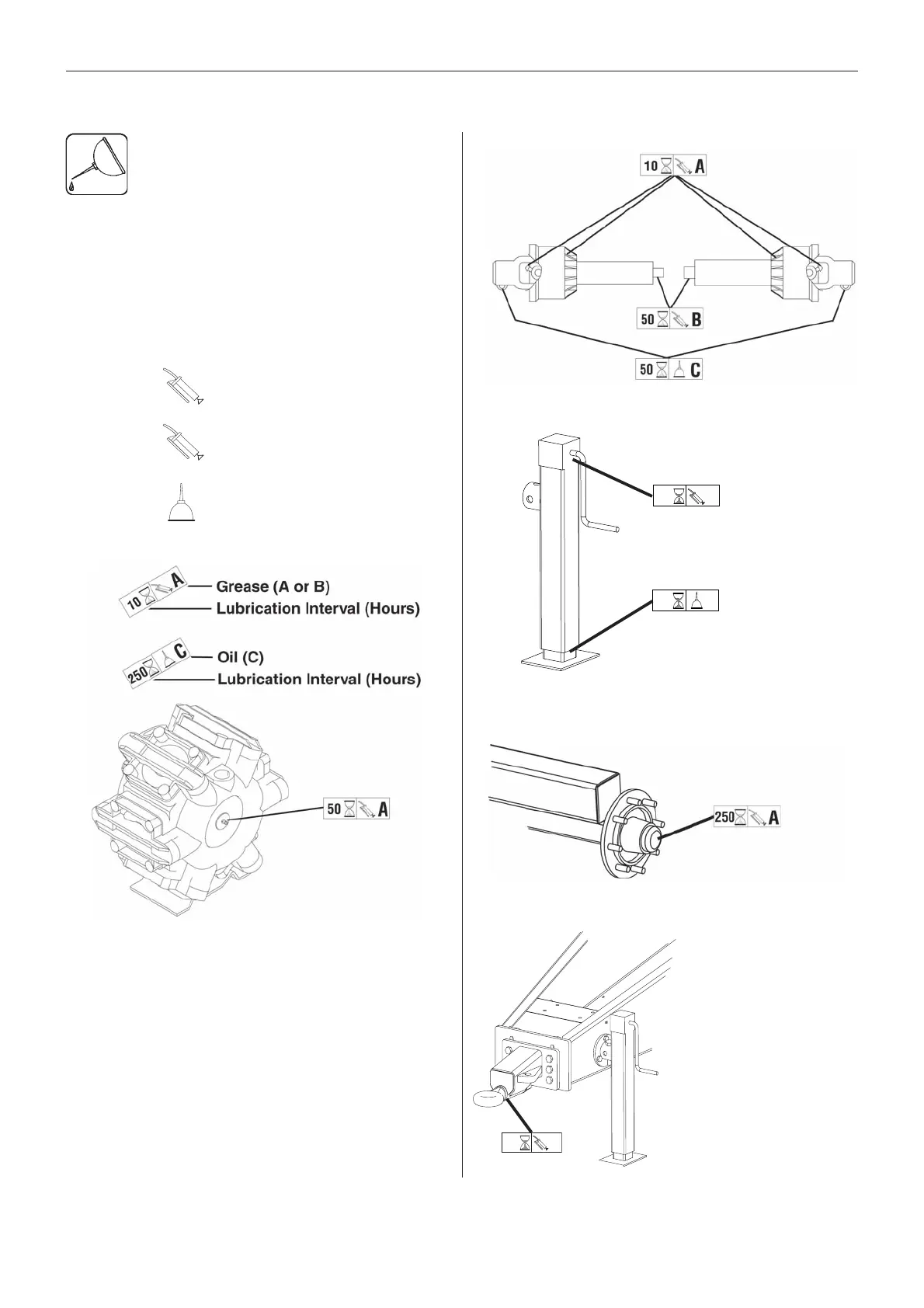

Fig 11
Pump
Transmission shaft
Support leg
Wheel bearings
Hitch
B
250
C
250
B
50
Fig 12
Fig 13
Fig 14
Fig 15
NOTE! Ace Pumps have factory lubricated bearings
and require no further lubrication.

Hardi Navigator Series Specifications

General

Tank Capacity	2400 to 6000 liters (depending on model)
Pump Type	diaphragm pump
Wheel Track Adjustment	Hydraulic or mechanical
Nozzle Spacing	50 cm
Weight	Varies depending on model and options; check specific model specifications
