Hardi Navigator Series User Manual

23

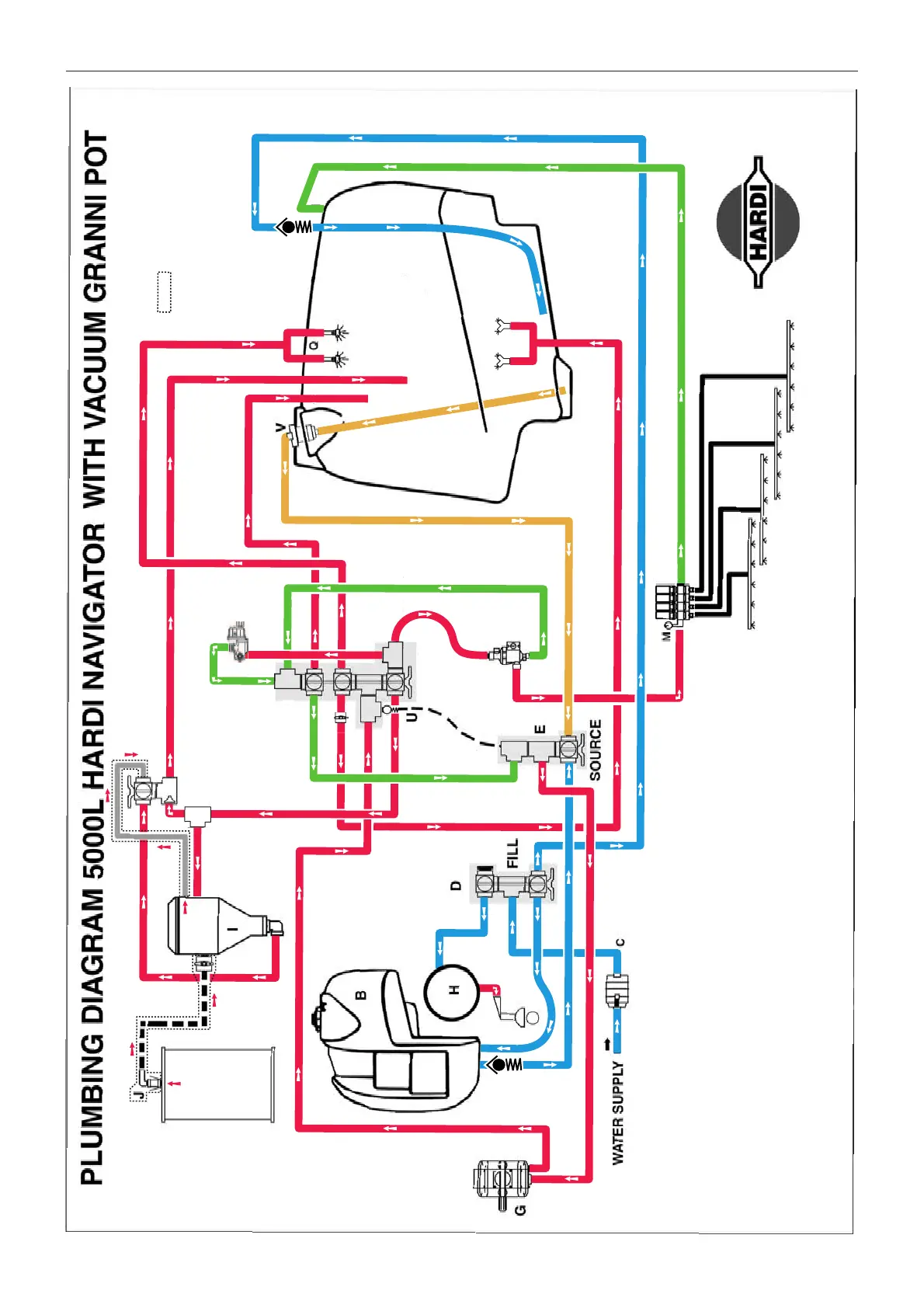

HARDI NAVIGATOR
W
X
Air
X = Vacuum Select Valve
Y = Non-return Valve
A = Main Tank
B = Flush Tank
C = Fill Filter
D = FILL VALVES
E = SOURCE VALVES
F = FUNCTION VALVES
G = Pump
H = Foam Tank
I = Granni Pot
J = Chem Probe / Drum Coupling
K = EVC / Pressure Regulator
L = Pressure Equalisation Return
M = Boom Distribution
N = Self-Cleaning Filter
O = Chemical Fill Inlet
P = Agitators
Q = Tank Rinse
R = Debris Return
S = Main Tank Fill
T = Bypass to Tank
U = Relief Valve
V = In-Line SuctionFilter
W = Venturi
A
P
S
L
Y
Y
Delete for Standard
Granni Pot
R
K
FUNCTION
F
T
O
Z
Z = Service Isolation Valve
N

Hardi Navigator Series Specifications

General

Tank Capacity	2400 to 6000 liters (depending on model)
Pump Type	diaphragm pump
Wheel Track Adjustment	Hydraulic or mechanical
Nozzle Spacing	50 cm
Weight	Varies depending on model and options; check specific model specifications
