8 - Technical Specifications
114

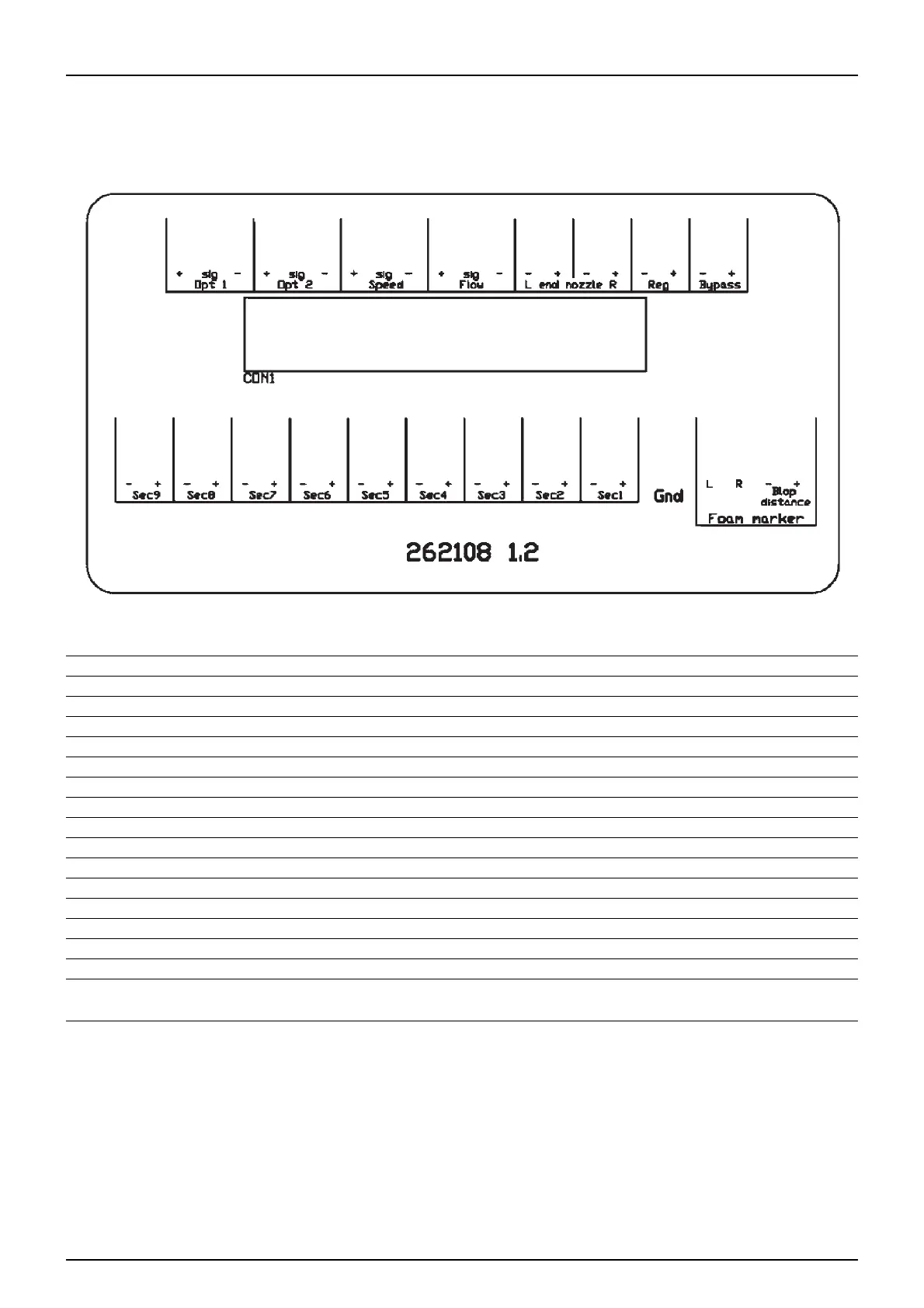

EVC Junction Box
The EVC operating unit fulfils the EC noise reduction standards.
When connecting an optional function, be aware that maximum current for every connector is 2 amps. Total current for the
whole connector box may not exceed 10 amps.
HC 5500 Function + Signal -
Option 1 Pressure sensor Brown Blue -
Option 2 RPM sensor Brown Blue Black
Speed Brown Blue Black
Flow Brown Blue Black
Left end nozzle Pendulum lock at HAY/LPY Brown Blue
Right end nozzle Pendulum lock at HAY/LPY Brown Blue
Regulation (Yellow) Brown Blue
Bypass EC on/off Brown Blue
Section 9 User defined A&B 2 x x
Section 8 User defined A&B 1 x x
Section 7 Twin speed Brown White
Section 6 Twin angle Yellow Grey
Section 5 Brown Blue
Section 4 Brown Blue
Section 3 Brown Blue
Section 2 Brown Blue
Section 1 Brown Blue
Ground Left Right - +
Foam marker No. 4 Not used Black Brown Red Orange
