Harley Benton DNAfx GiT - Stage Connection Configuration

AUX IN INPUT RIGHT USB OTGLEFT/MONO
PHONES
OUTPUT
9V 300MA
Mixer Headphones
Guitar
Amplier

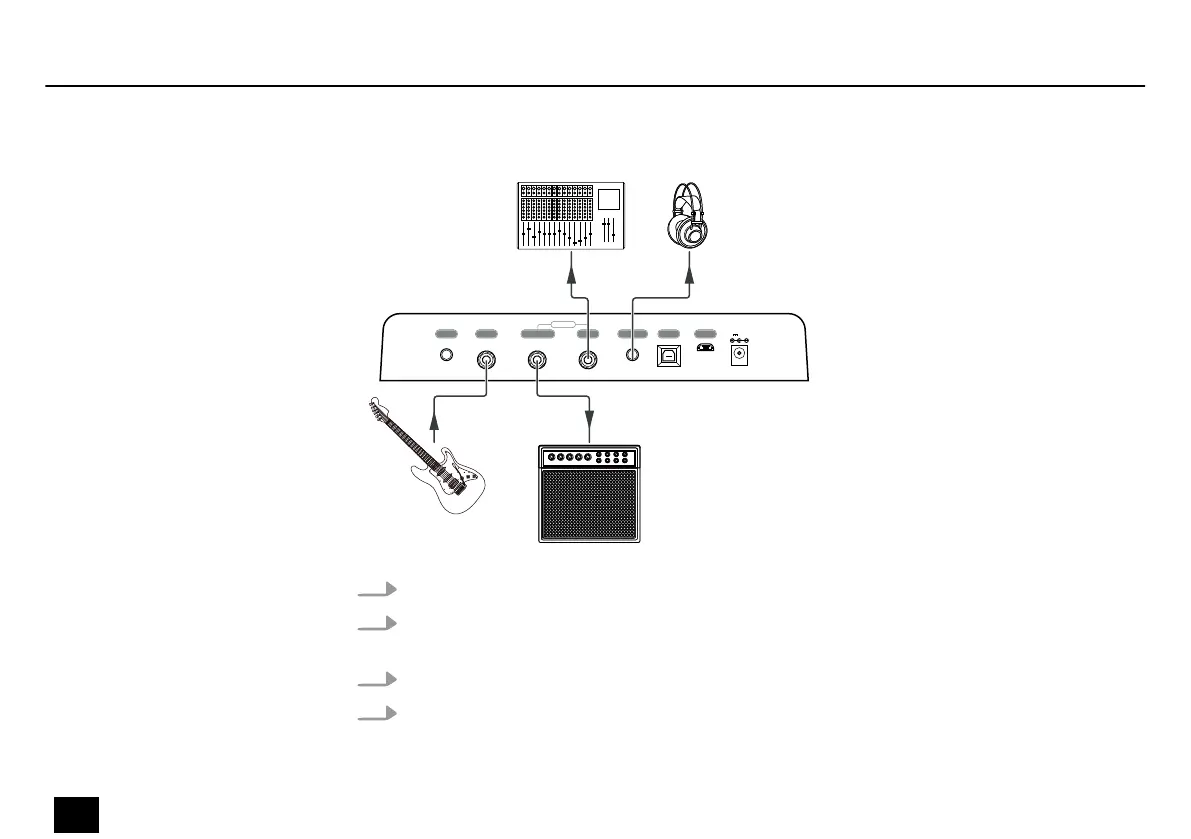

1. Connect the guitar to the input jack [INPUT] of the unit.
2. Connect the RETURN interface of the amplier to the output jack [LEFT MONO] of the
unit.
3. Connect a mixer to the output jack [RIGHT] of the unit.
4. Connect headphones to the [PHONES] jack.
