Harley Benton DNAfx GiT - Rear Panel Ports and Connectors

AUX IN INPUT RIGHT USB OTGLEFT/MONO
PHONES
OUTPUT
9V 300MA
0 4 5
6
71 2 3

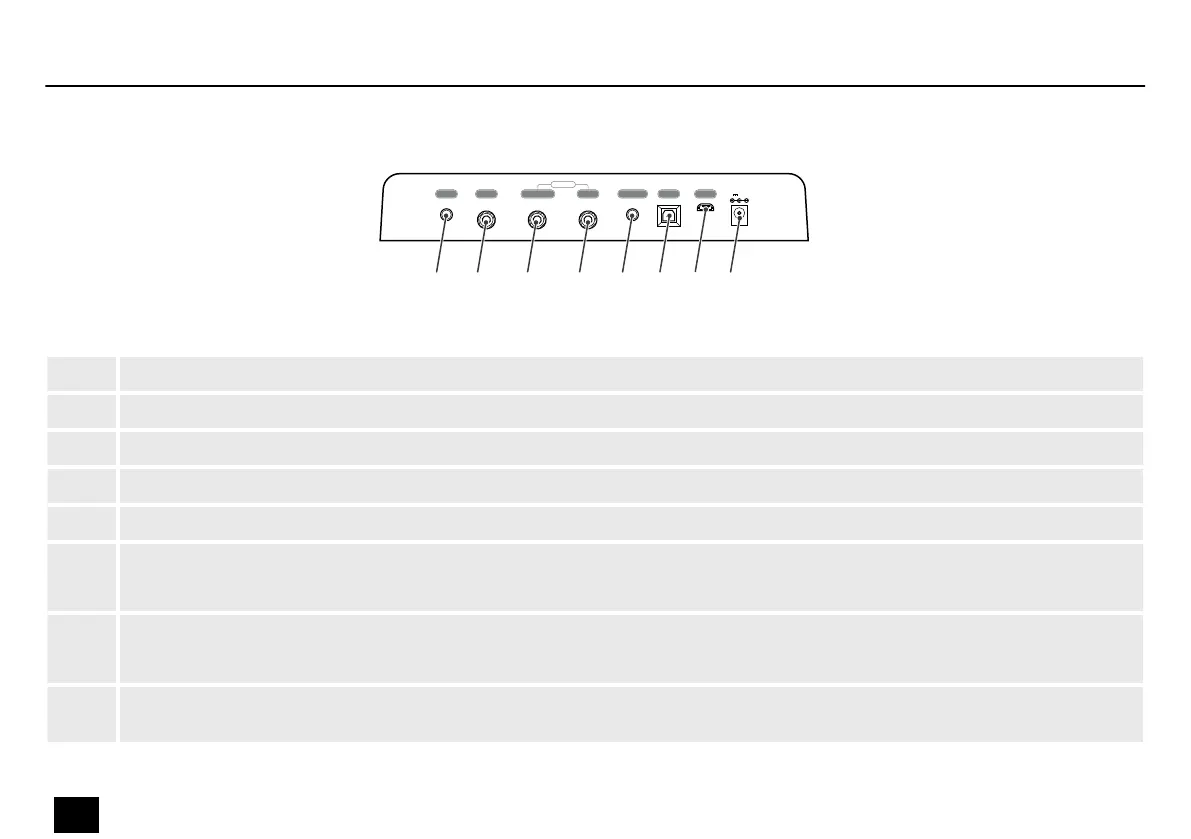

15 [AUX IN] | 3.5 mm input socket (stereo) for connecting an audio device (e.g. MP3 player or mobile phone)
16 [INPUT] | 1/4" phone jack for connecting a guitar or other instrument with a similar output level
17 [OUTPUT][LEFT/MONO] | 1/4" phone jack (mono)
18 [OUTPUT][RIGHT] | 1/4" phone jack (mono)
19 [PHONES] | 3.5 mm jack socket (stereo) to connect headphones.
20 [USB] | USB port type B for connecting the device to a PC
Using the PC, you can update the software.
21 [OTG] | Micro USB port for connecting the device to a compatible smartphone or tablet
A compatible device lets you directly record the songs being played or edit presets with the special editor software.
22 [DC IN] | Connection for the external voltage supply with 9 V DC. When connecting, observe the correct polarity - the inner
pole must be negative.
Rear panel
Connections and operating elements
24
DNAfx GiT
Multi Eects Unit
