1-8 2005 PDI: All Models
FLTR Road Glide
1. See Figure 1-14. Remove two T25 TORX screws at sides
of instrument bezel.
2. Carefully push tab at rear of instrument bezel from slot
above ignition switch. Gently raise free side of bezel until
tabs at front of instrument nacelle disengage from slot at
front of bezel (concealed behind decorative adhesive
strip). Move instrument bezel to one side.
3. See Figure 1-15. Loosen two front screws securing han-
dlebar upper clamps (Instrument bezel has been
removed in drawing for clarity).
4. Raise handlebars to normal riding position. Tighten front
handlebar clamp screws to 12-16 ft-lbs (16.3-21.7 Nm).
5. Verify that left and right sides of instrument nacelle are
properly mated. Pins on left side of nacelle must fully
engage holes on right.
6. Insert tab at rear of bezel into slot of instrument nacelle
just above ignition switch. Holding left and right sides of
nacelle together, place bezel over instrument nacelle
flange. when properly mated, tabs at front of instrument
nacelle engage lip in slot at front of bezel behind decora-
tive adhesive strip.
NOTE
If tabs do not properly engage slot at front of bezel, a loose fit
will result. Remove decorative adhesive strip by gently prying
up outer edges. Using a flat bladed screwdriver, carefully
raise tabs so they engage lip in slot. If damaged, install
new
decorative adhesive strip.

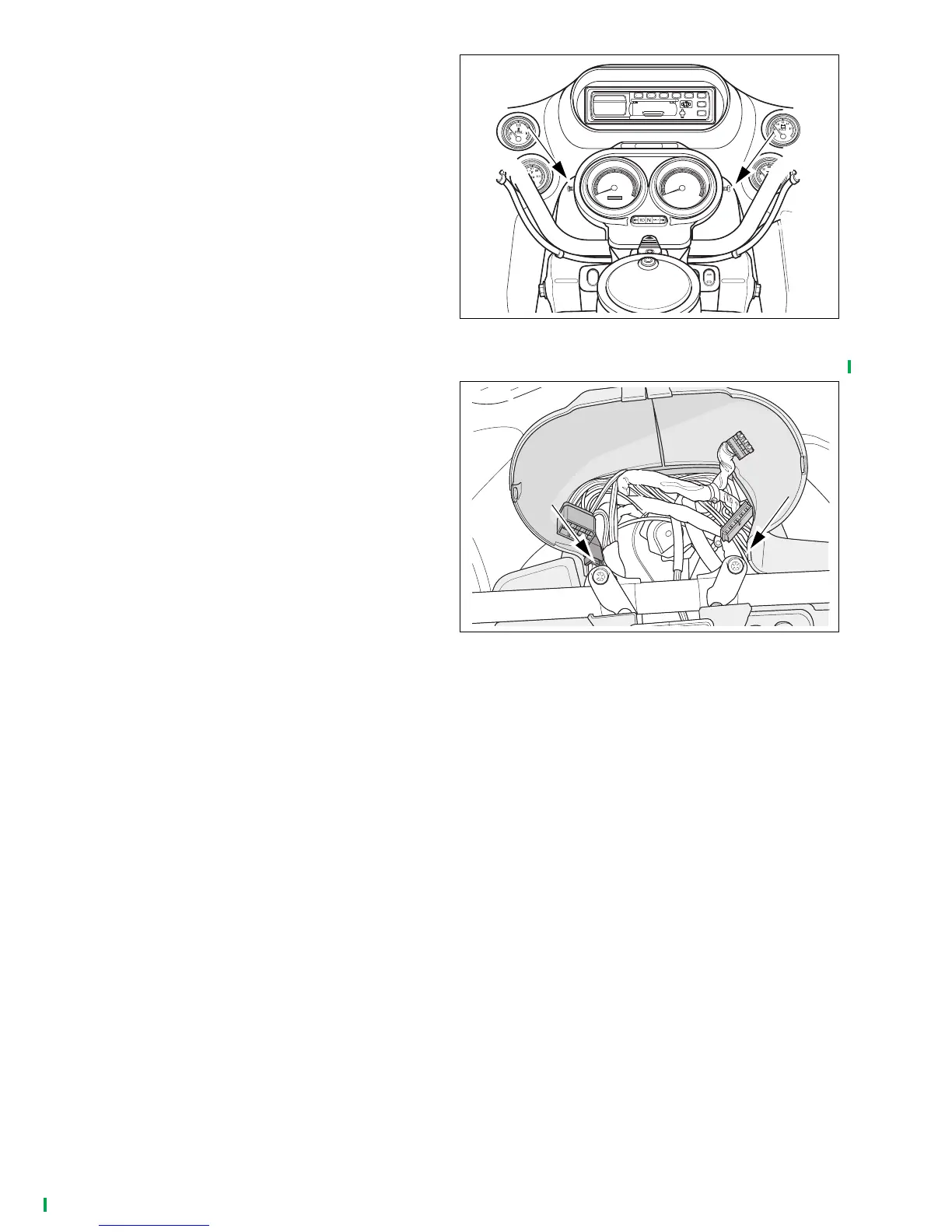

Figure 1-14. FLTR Models-Instrument Bezel Screws
Figure 1-15. FLTR Models-Front Handlebar Clamp Screws
