2005 PDI: Touring Models 2-5

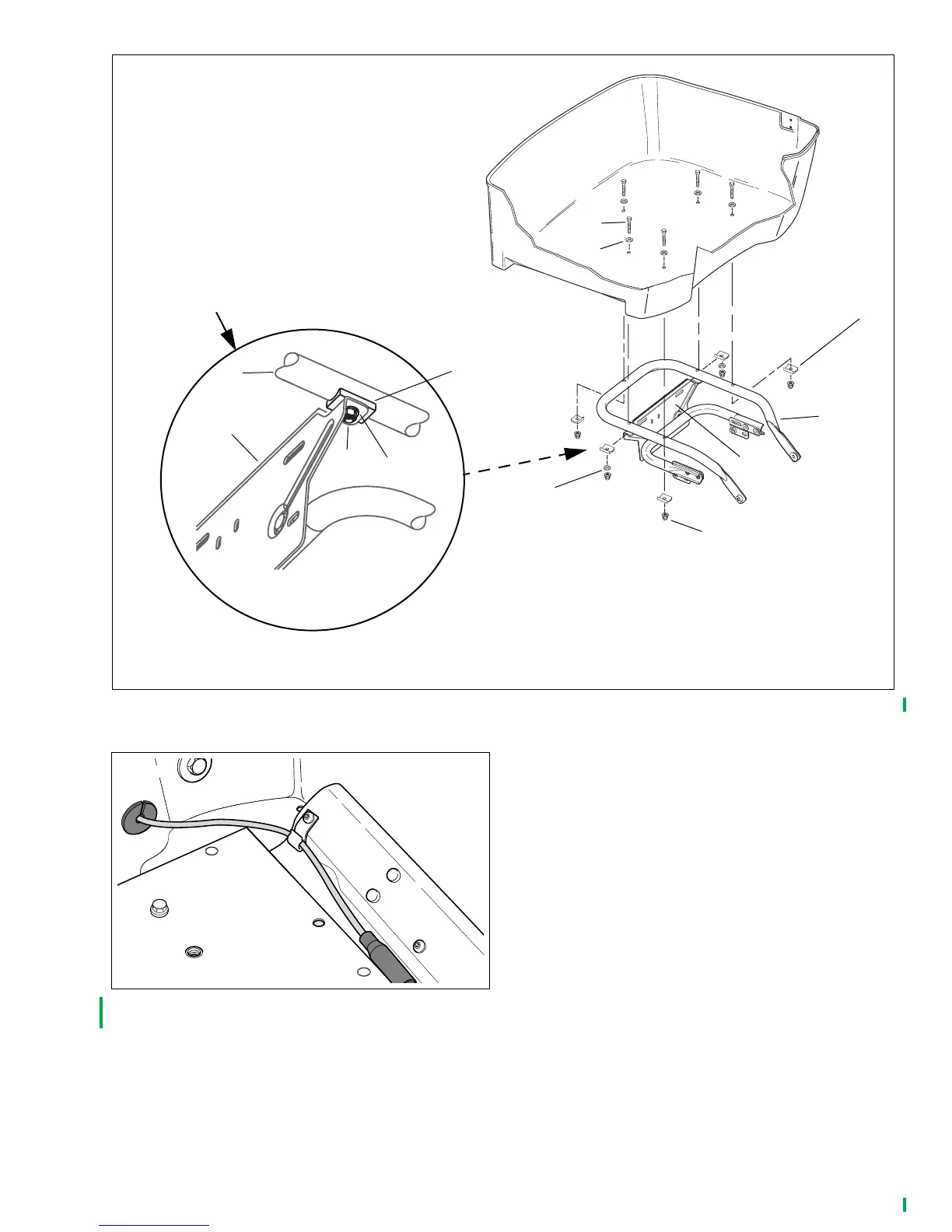

Figure 2-4. Tour-Pak Mounting
Bottom view showing
spacer (4) between license
plate bracket (5) and top
support tube (3).
1. Bolt, 1/4-20 x 2-1/4 in. (5)
2. Washer 1/4 in. inside dia. (7)
3. Top support tube
4. Luggage rack spacer (5)
5. License plate bracket
6. Locknut, Nylon cap, 1/4-20 (5)
pd0187e
5
3
4
2
1
6
4
2
6
3
5
2
Figure 2-5. Antenna Cable Clip
(CB Antenna Cable Shown)
f1467b2x
