2-16 2005 PDI: Touring Models
ELECTRICAL SYSTEM 2.5
HEADLAMP
Check headlamp beam for proper height and lateral align-
ment in accordance with procedures given in Section 8 of the
Touring Models Service Manual.
1WARNING1WARNING
The automatic-on headlamp feature provides increased
visibility of the rider to other motorists. Be sure head-
lamp is on at all times. Poor visibility of rider to other
motorists can result in death or serious injury. (00030b)
AUXILIARY LAMPS
On models equipped with auxiliary lamps, check lamp beam
for proper height and lateral alignment in accordance with
procedures given in the Touring Models Service Manual.
DIRECTIONAL LAMPS
Adjust front directional lamps so lenses are aimed directly for-
ward. Verify that directional lamp fasteners are properly tight-
ened.
FRONT TURN SIGNALS
(FLHRS ONLY)
Adjust and tighten. Ensure that directionals do not contact
fuel tank.
INSTRUMENT PANEL
See Figure 2-20. The instrument panel has a Low Fuel,
Check Engine, Security (if equipped) Battery, Cruise Control
(if equipped) and ABS (if equipped) warning lamps.
● The Low Fuel Warning lamp comes on when approxi-
mately 0.9 gallon (3.4 liter) of gasoline remains.
● The Check Engine lamp illuminates briefly (4 seconds) at
start-up and should then remain off unless an error code
is present.

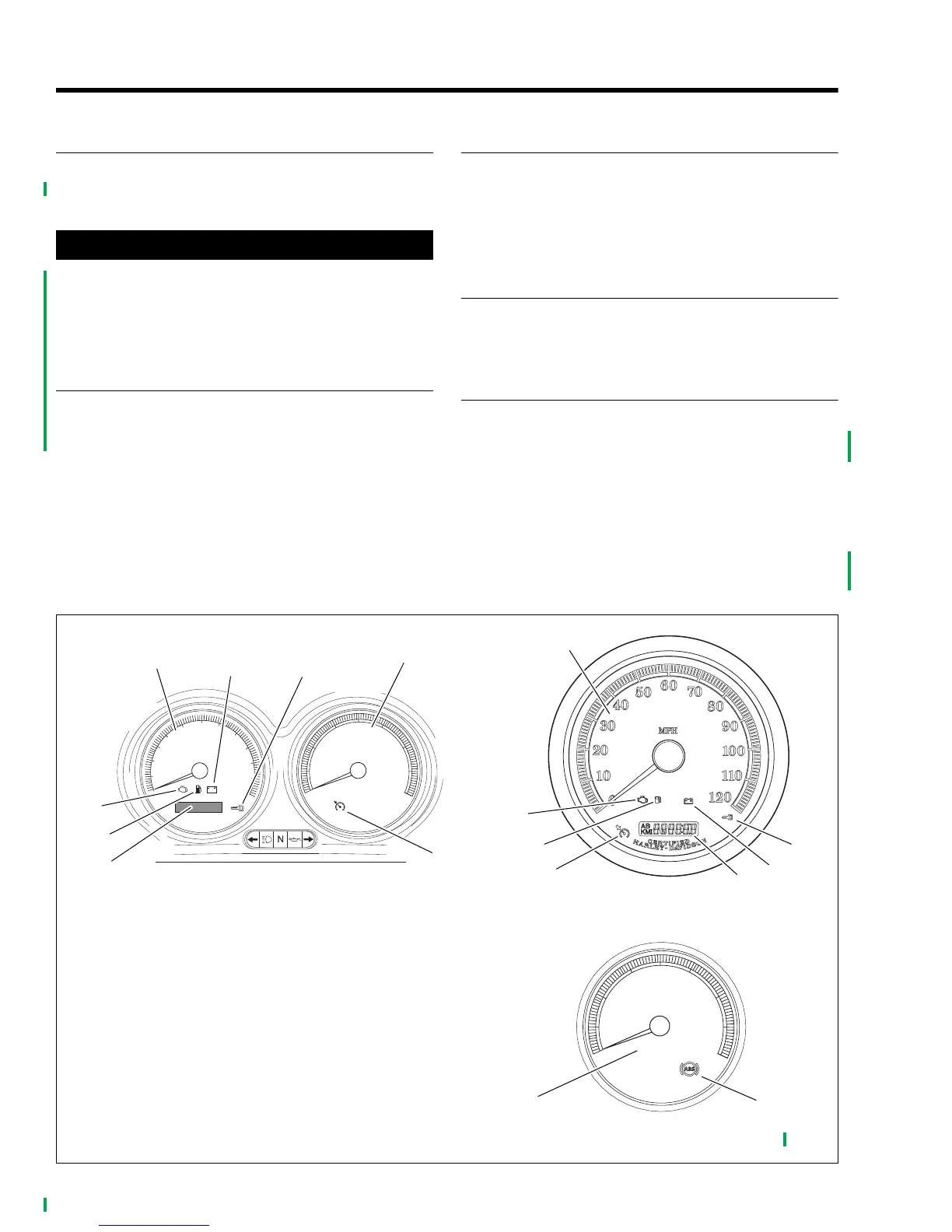

Figure 2-20. Instrument Panel Warning Lamps
0
10
30
20
50
40
110
120
60
70
80
90
100
0
20
30
70
80
40
50
60
10
MPH
H
A
R
L
E
Y
-
D
A
V
I
D
S
O
N
C
E
R
T
I
F
I
E
D
RPM
x100
H
A
R
L
E
Y
-
D
A
V
I
D
S
O
N
0
20
30
70
80
40
50
60
10
RPM
x100
H
A
R
L
E
Y
-
D
A
V
I
D
S
O
N
d0715x8x
FLHT and FLTR Models
FLHR Models
3
5
7
6
4
2
f2185xax
1
1. Speedometer
2. Security system lamp
3. Tachometer
4. Cruise lamp
5. Odometer/trip-odometer
6. Low fuel warning lamp
7. Engine check lamp
8. Battery discharge lamp
9. ABS lamp (optional police equipment)
10. Pursuit lamp indicator (police)
2
4
6
7
8
5
1
8
FLHTP/FLHP Models Tachometer
10
pd0221
P
P
9
