7. Replace wire terminal.
1
2
sm02614
1. Fuel filter retainer clip
2. End cap

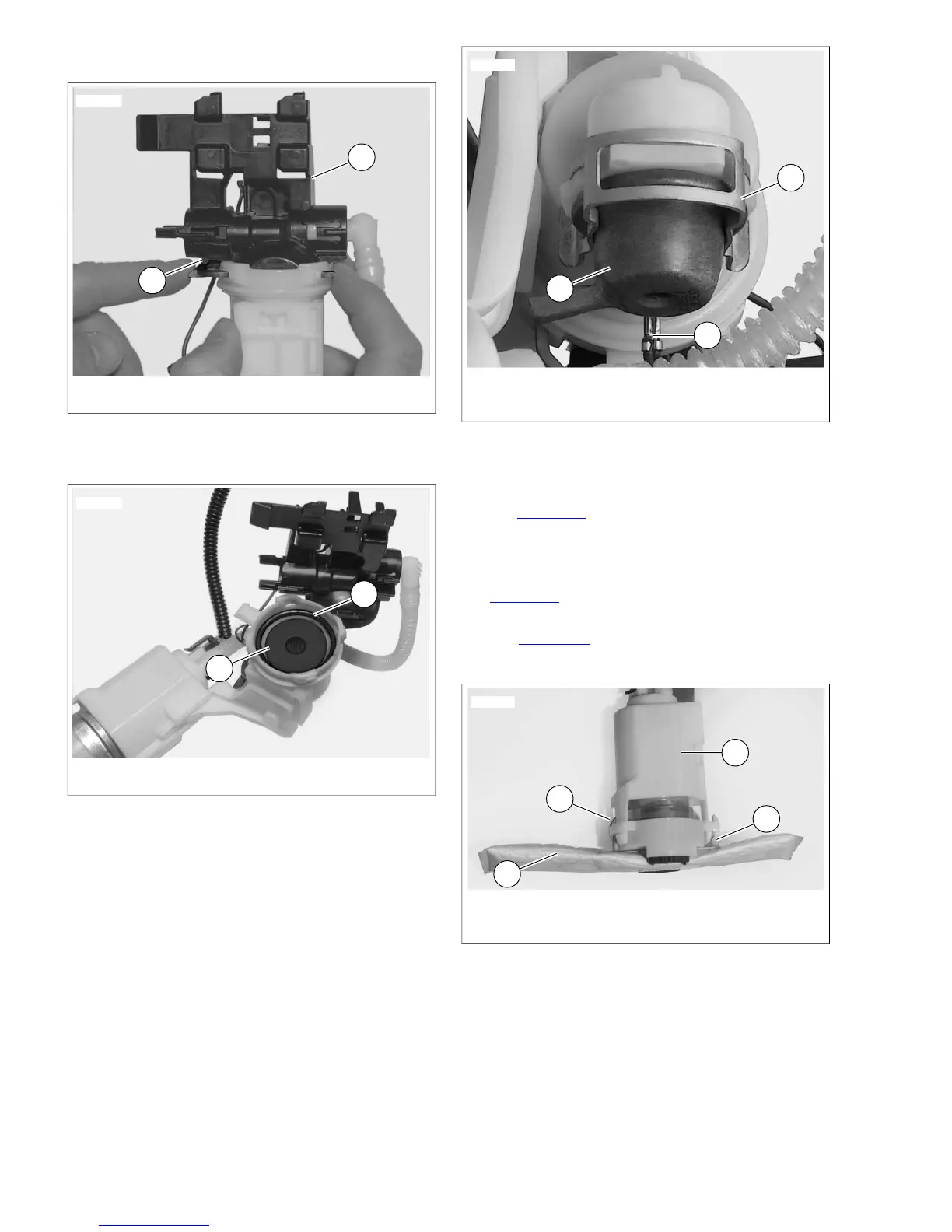

Figure 4-41. Filter Retainer Clip
1
2
sm02615
1. Fuel pump filter
2. O-ring
Figure 4-42. Bail Bracket
1
2
3
sm02616
1. Regulator
2. Clip
3. Wire terminal
Figure 4-43. Regulator
Inlet Sock
1. See Figure 4-44. Depress tabs (2) securing inlet sock (1)
to upper retainer (3).
2. Remove inlet sock from upper retainer.
NOTE
See Figure 4-45. In next step, be sure inlet sock engages fuel
pump inlet.
3. See Figure 4-44. Install inlet sock (1) on upper retainer
(3). Be sure tabs (2) engage slots in body.
1
2
3
2
sm02617
1. Inlet sock
2. Tab (2)
3. Upper retainer
Figure 4-44. Fuel Sock
4-24 2008 Dyna Service: Fuel System
