1. Fuel pump inlet
2. Inlet sock

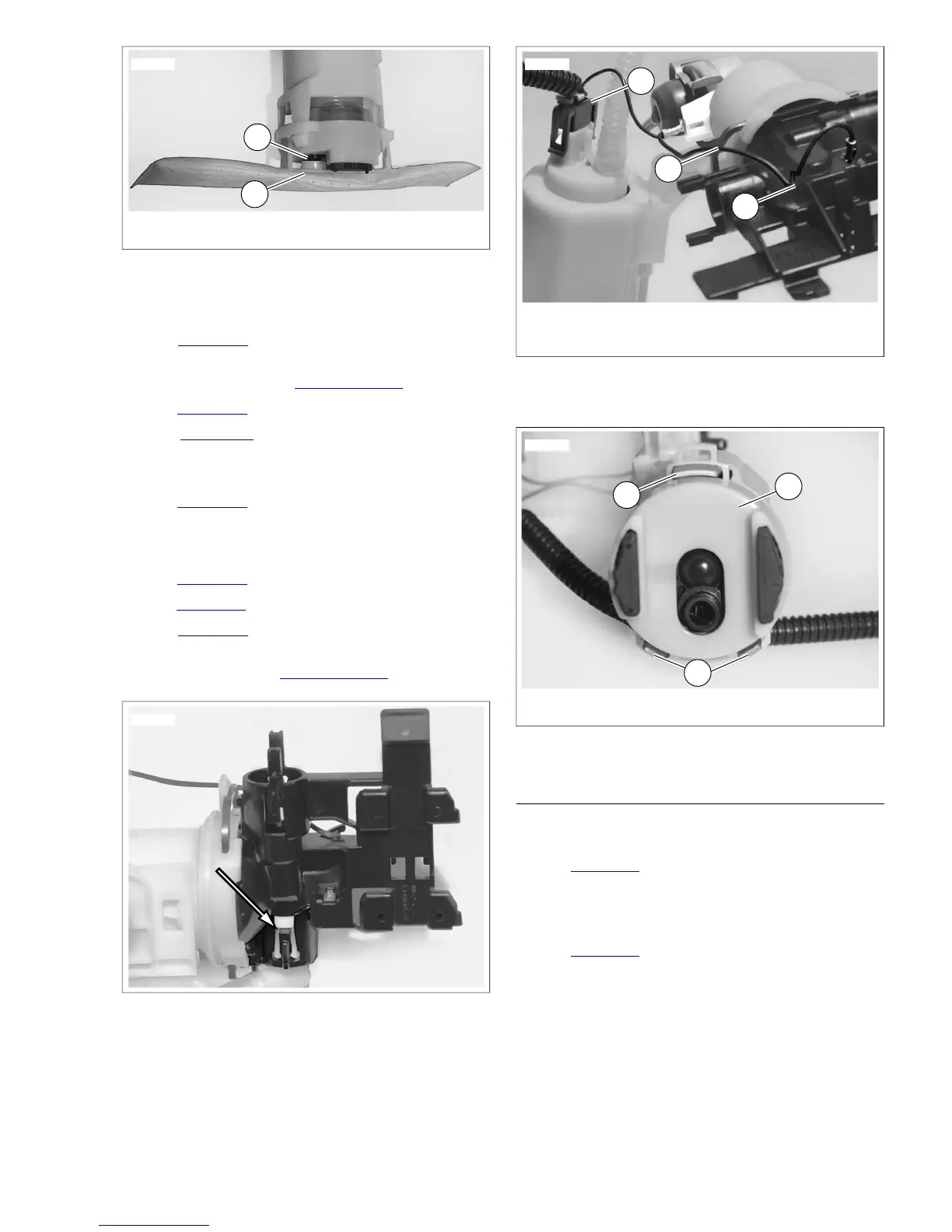

Figure 4-45. Fuel Sock Installation
Fuel Pump
1. See Figure 4-46. Using screwdriver, break tabs securing
fuel pump hose to end cap.
2. Remove inlet sock. See 4.14 FUEL PUMP.
3. See Figure 4-47. Disconnect fuel pump connector (1).
4. See Figure 4-48. Depress tabs (1) and remove lower
retainer (2) from upper retainer.
5. Remove fuel pump from fuel pump body.
6. See Figure 4-40. Install lower isolator in lower retainer.
7. Install upper isolator into upper retainer.
8. Install fuel pump into upper retainer.
9. See Figure 4-48. Install lower retainer.
10. See Figure 4-46. Install fuel pump hose into new end cap.
11. See Figure 4-47. Install fuel pump connector (1). Inspect
fuel pump wiring, (2) replace if damaged.
12. Install inlet sock. See 4.14 FUEL PUMP.
1. Tab (3)
2. Fuel pump lower retainer
Figure 4-48. Filter Retainer Clip
INSTALLATION
NOTE
Fuel pump sits in left side of fuel tank.
1. See Figure 4-49. Install fuel pump into left side of fuel tank
as shown.
2. Rotate pump counterclockwise and downward into posi-
tion.
3. See Figure 4-50. Install fuel pump so end cap (8) engages
mounting tabs (4).
4. Connect fuel pump connector (7).
5. Place fuel gauge wiring harness (5) into clip (6).
6. Install new O-ring on fuel line (1). Install fuel line.
7. Install new top plate gasket on fuel tank. Do not apply any
type of sealant to gasket.
2008 Dyna Service: Fuel System 4-25
