7. Tighten screw to secure bracket inside housing.
8. Route wire bundle to upper switch housing by gently
pressing conduit into channel next to angular arm of
bracket. Secure bundle to arm using third cable strap. Cut
any excess cable strap material. If necessary, bend
angular arm of bracket downward to firmly secure front
stoplight switch in position.
9. See 8.29 RIGHT HANDLEBAR SWITCH, Installation.
a. If lower housing switches were replaced, perform the
entire procedure.
b. If upper housing switches were replaced, begin with
step 11.
1. Cable strap
2. Bracket
3. Right turn signal switch

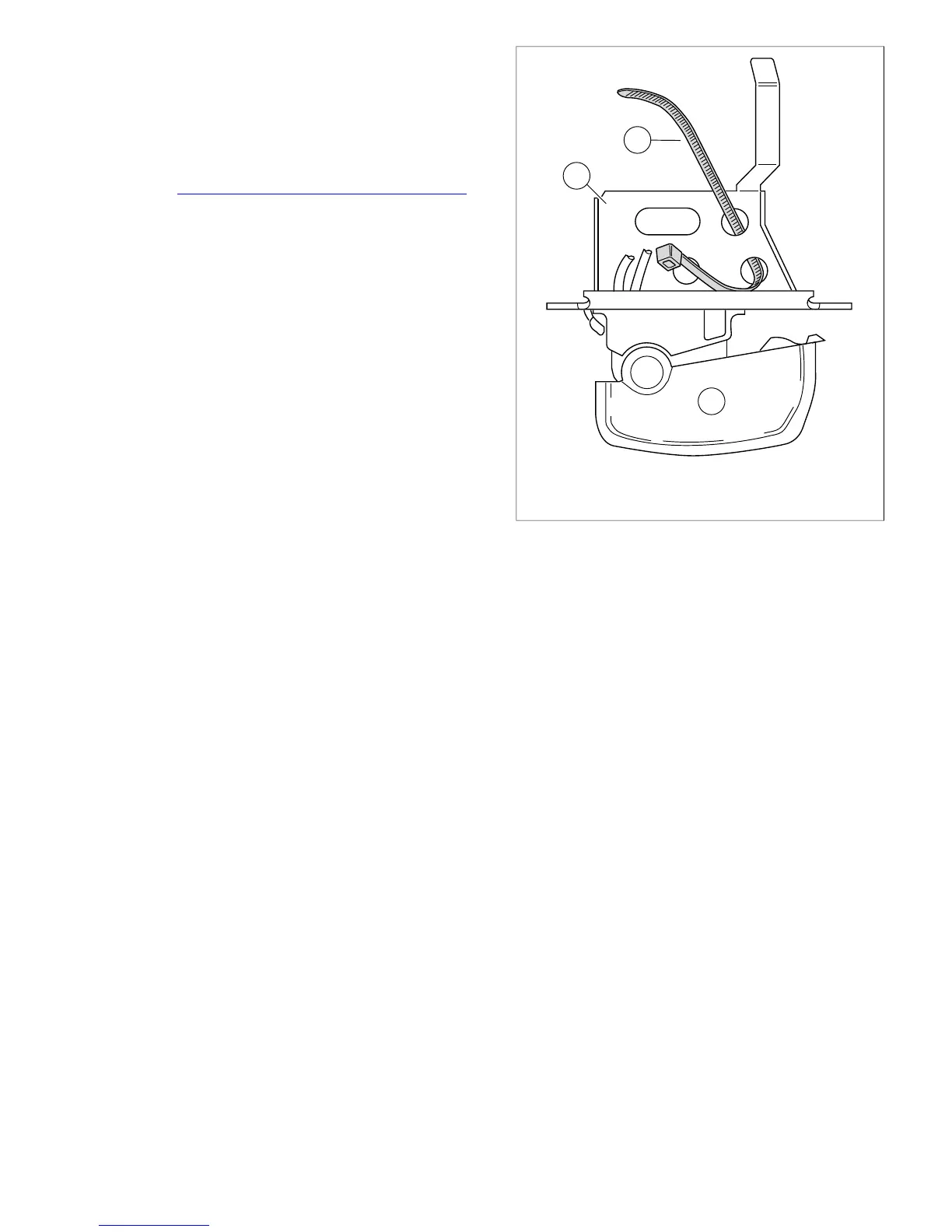

Figure 8-89. Insert Cable Strap in Switch Bracket
2008 Dyna Service: Electrical 8-59
