Harman Kardon 75+ - Bottom View

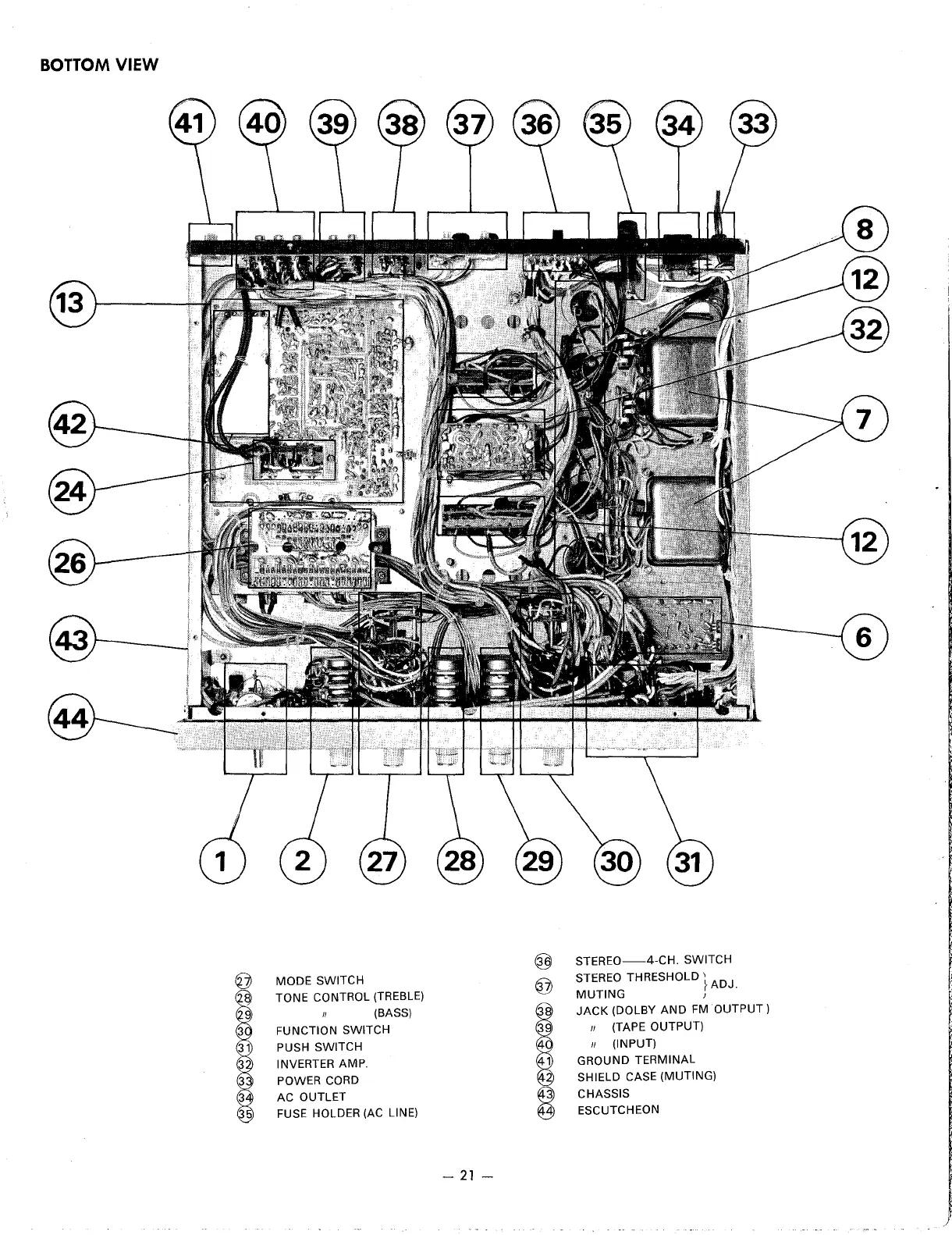

BOTTOM VIEW
I
@---___-) --t--:--~--+-1----++----F-+---M--++- ............... ~~
MODE SWITCH
TONE CONTROL (TREBLE)
(BASS)
FUNCTION SWITCH
PUSH SWITCH
INVERTER AMP.
POWER CORD
AC OUTLET
FUSE HOLDER (AC LINE)
-21-
STERE0-4-CH. SWITCH
STEREO THRESHOLD f ADJ.
MUTING ,
JACK (DOLBY AND FM OUTPUT)
11 (TAPE OUTPUT)
11 (INPUT)
GROUND TERMINAL
SHIELD CASE (MUTING)
CHASSIS
ESCUTCHEON
)
