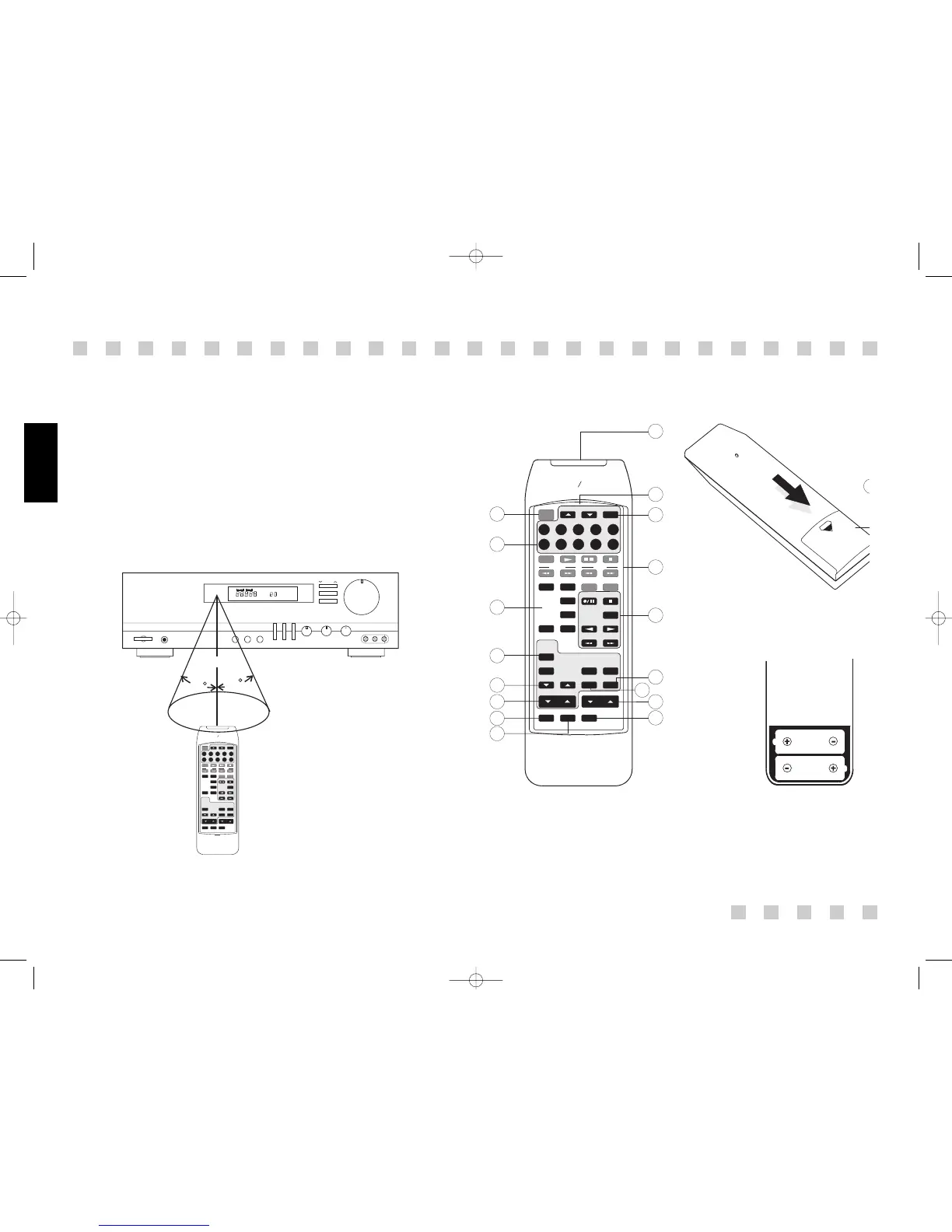

REMOTE CONTROL
OPERATION RANGE
8m
3
0
3
0
17. MUTE BUTTON
Press this button to silence the
speakers temporarliy. The volume
indicator blinks. Press again to
restore the same listening level as
before.
18. BATTERY COMPARTMENT
This battery case is provided as the
power source for the commander. To
remove the cover, press it down with
your thumb and pull it towards the
back side. Two UM-3, size ”AA” or
R6 1.5V dry batteries are used. When
loading the batteries, make sure that
the polarity is correct. Remove the
batteries from the case if the remote
commander will not be used for a
long time.
1
12
3
6
16
14
11
2
7
13
15
17
CD
Tape Mon
Aux
VCR 1
VCR 2
Cass Deck
Skip
Intro
Search
Tuner
A-B
Select
Off
Surround
3-Stereo
Pro-Logic
Display Sleep Mute
RearLevel MasterVolume
Center Level Cent Mode
Test
Standby
Tuning
PScan
TunerCD
1234
5
67890
harman kardon
1
4
8
Delay
9
5
10
/ ON
Disc
A/B
AVR10 engelsk 11/01/98 10:11 Side 15

Harman Kardon AVR 10 Specifications

Power

continuous average power stereo mode	35 Watts from 20Hz-20kHz @ <0.09% THD, both channels driven into 8 Ohms
continuous average power five channel surround mode front L&R channels	30 Watts from 20Hz-20kHz @ <0.3% THD, both channels driven into 8 Ohms
continuous average power five channel surround mode center channel	30 Watts at 1kHz @ <0.3% THD, driven into 8 Ohms

Amplifier Section

high-instantaneous current capability (HCC)	±20 Amps
negative feedback	20dB
frequency response @ 1W (+0/-3dB)	0.5Hz - 100kHz

Weight and Dimensions

dimensions (W × H × D) inches	17 [5]/16 × 4 [7]/8 × 14 [15]/16
dimensions (W × H × D) mm	440 × 138 × 360
weight	18 lbs, 8.2 kg
