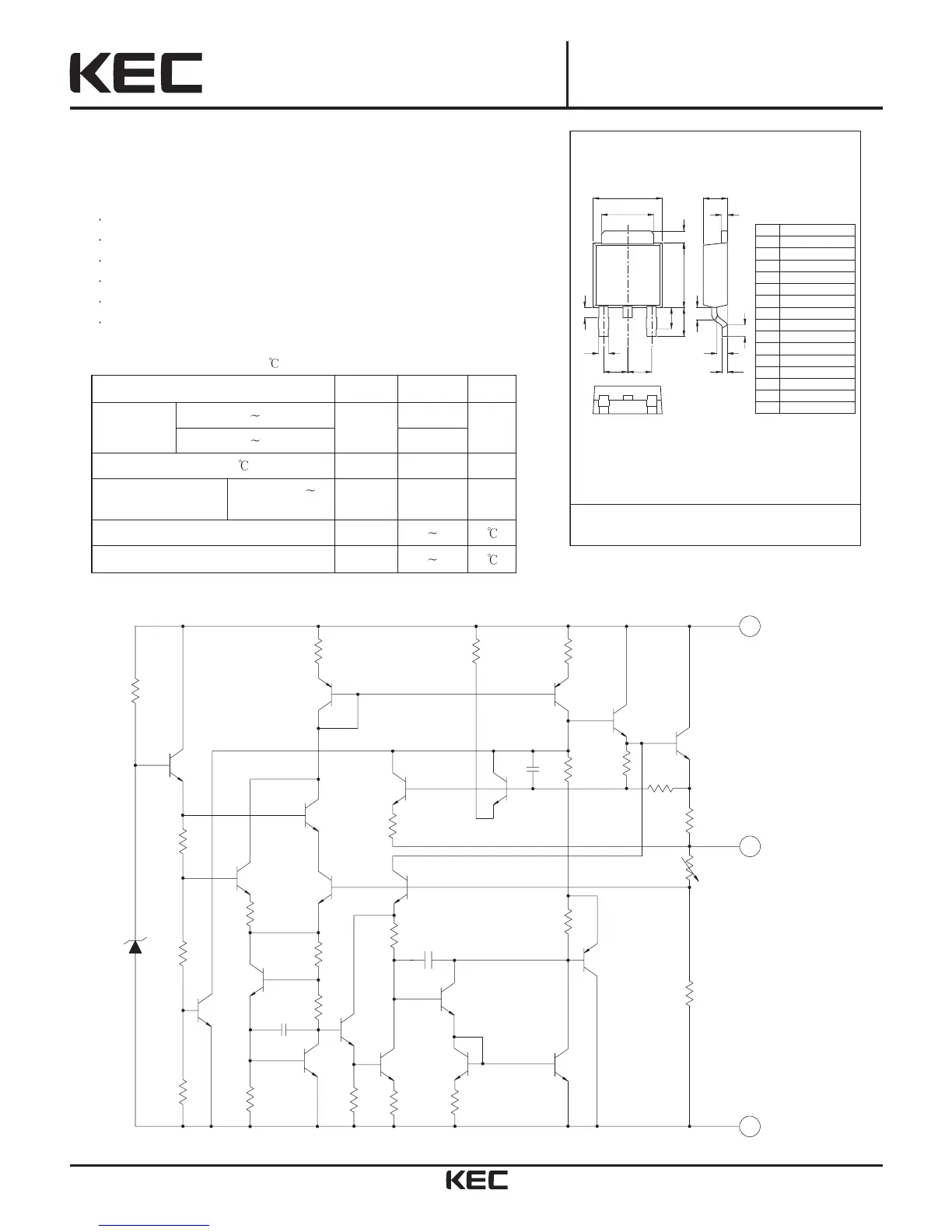

SEMICONDUCTOR
TECHNICAL DATA
KIA7805AF~KIA7824AF
BIPOLAR LINEAR INTEGRATED CIRCUIT
Revision No : 2
THREE TERMINAL POSITIVE VOLTAGE REGULATORS
5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V.
FEATURES
Suitable for C-MOS, TTL, the Other Digital IC's Power Supply.
Internal Thermal Overload Protection.
Internal Short Circuit Current Limiting.
Output Current in Excess of 1A.
Satisfies IEC-65 Specification. (International Electronical Commission).
Package is DPAK.
DPAK
DIM MILLIMETERS
A
B
C
D
F
H
I
J
K
L
6.60 0.2
6.10 0.2
5.0 0.2
1.10 0.2
2.70 0.2
2.30 0.1
1.00 MAX
2.30 0.2
0.50 0.1
2.00 0.20
0.50 0.10
E
0.91 0.10M
0.90 0.1O
A
C
D
B
E
K
I
J
Q
H
F
F
M
O
P
L
123
1. INPUT
2. COMMON
3. OUTPUT
1.00 0.10P
0.95 MAXQ
+
_
+
_
+
_
+
_
+
_
+
_
+
_
+
_
+
_
+
_
+
_
+
_
+
_
MAXIMUM RATINGS (Ta=25 )
CHARACTERISTIC SYMBOL RATING UNIT
Input Voltage
KIA7805AF KIA7815AF
V
IN
35
V
KIA7818AF KIA7824AF
40
Power Dissipation (Tc=25 )
P
D
12 W
Power Dissipation
(Without Heatsink)
KIA7805AF
KIA7824AF
P
D
1.3 W
Operating Junction Temperature
T
j
-30 150
Storage Temperature
T
stg
-55 150
R1
R22
Q11
R17
Q12
R12R11R13
Z1
1
3
2
INPUT
OUTPUT
COMMON (GND)
Q13
Q18
Q17
Q3
Q4
Q11-1
Q5
C1
Q7
Q8
Q10
Q1
Q6
Q19
Q14
Q9
Q2
R18
R2
R3
R4
R5
R6
R8
R21 R16
R20
R10
R23
R7
R19
Q16
R9
R14
R15
Q15
EQUIVALENT CIRCUIT
