Harman Kardon AVR 160 Service Manual

SANKEN ELECTRIC CO., LTD. ＳＩ－8005Q-TL
070926 SSJ-03532
14／17
61426-01
６ 外形
Package information

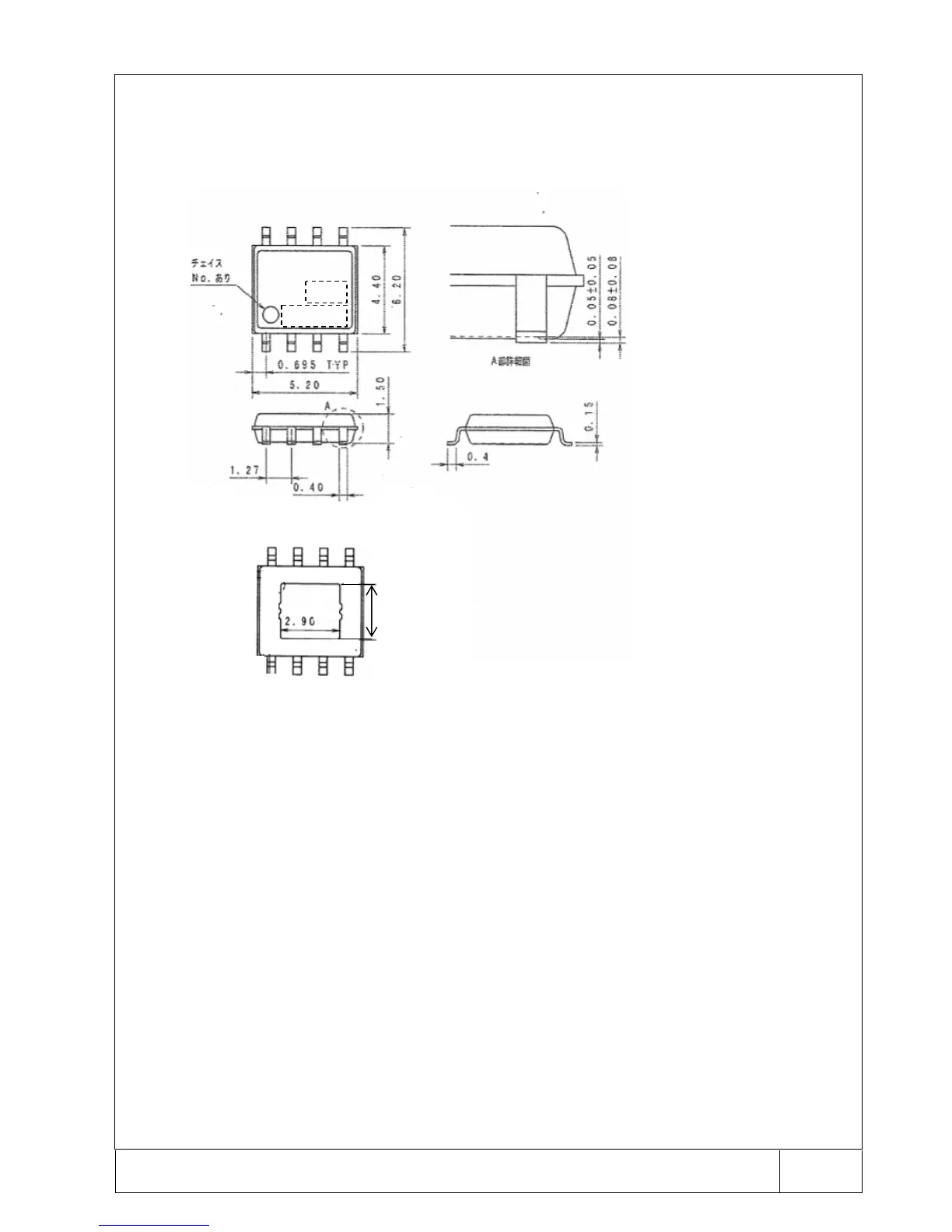

６-１外形、寸法
Package type, physical dimensions
６-２外観
Appearance
本体は、汚れ、傷、亀裂等なく綺麗であること。
The body shall be clean and shall not bear any stain, rust or flaw.
６-３標示
Marking
標示は本体に、品名及びロット番号を明瞭、かつ容易に消えぬようレーザーで捺印すること。
The type number and lot number shall be marked on the body by leaser which shall not be unreadable easily.
端子配列
PIN Assignment
1.BS
2.IN
3.SW
4.GND
5.FB
6.COMP
7.EN
8.SS
*1.品
名
標示
Type number
*2.ロット番号(3 桁)
Lot number (three digit)
第 1 文字 西暦年号下一桁
1
st
letter The last digit of year
第 2 文字 月
2
nd
letter Month
1～9 月：アラビア数字
10 月：O
11 月：N
12 月：D
(1 to 9 for Jan. to Sept.,
O for Oct. N for Nov. D for Dec.)
第 3,4 文字 製造週
3
rd
& 4
th
letter week
01～05：アラビア数字
Arabic Numerical
*3.管理番号(4 桁)
Control number (four digit)
8005Q
*2
SK
*3
*1
2.70
harman/kardon
AVR 160/230 Service Manual
89 of 116

Harman Kardon AVR 160 Specifications

General

Receiver type	Surround
RMS rated power	35 W
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.07 %
Power output per channel (1KHz@6 Ohm)	110 W
Digital audio coaxial out	1
Digital audio optical in	3
Connectivity technology	Wired
Speakers connectivity type	-
Ethernet LAN	No
Supported radio bands	AM, FM
Preset stations quantity	30
Product color	Black
Audio decoders	Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS 96/24, DTS Neo:6, DTS-ES, DTS-ES (Discrete 6.1), DTS-HD, DTS-HD Master Audio
Apple docking compatibility	Not supported

Weight and Dimensions

Depth	382 mm
Width	440 mm
Height	165 mm
Weight	10500 g
