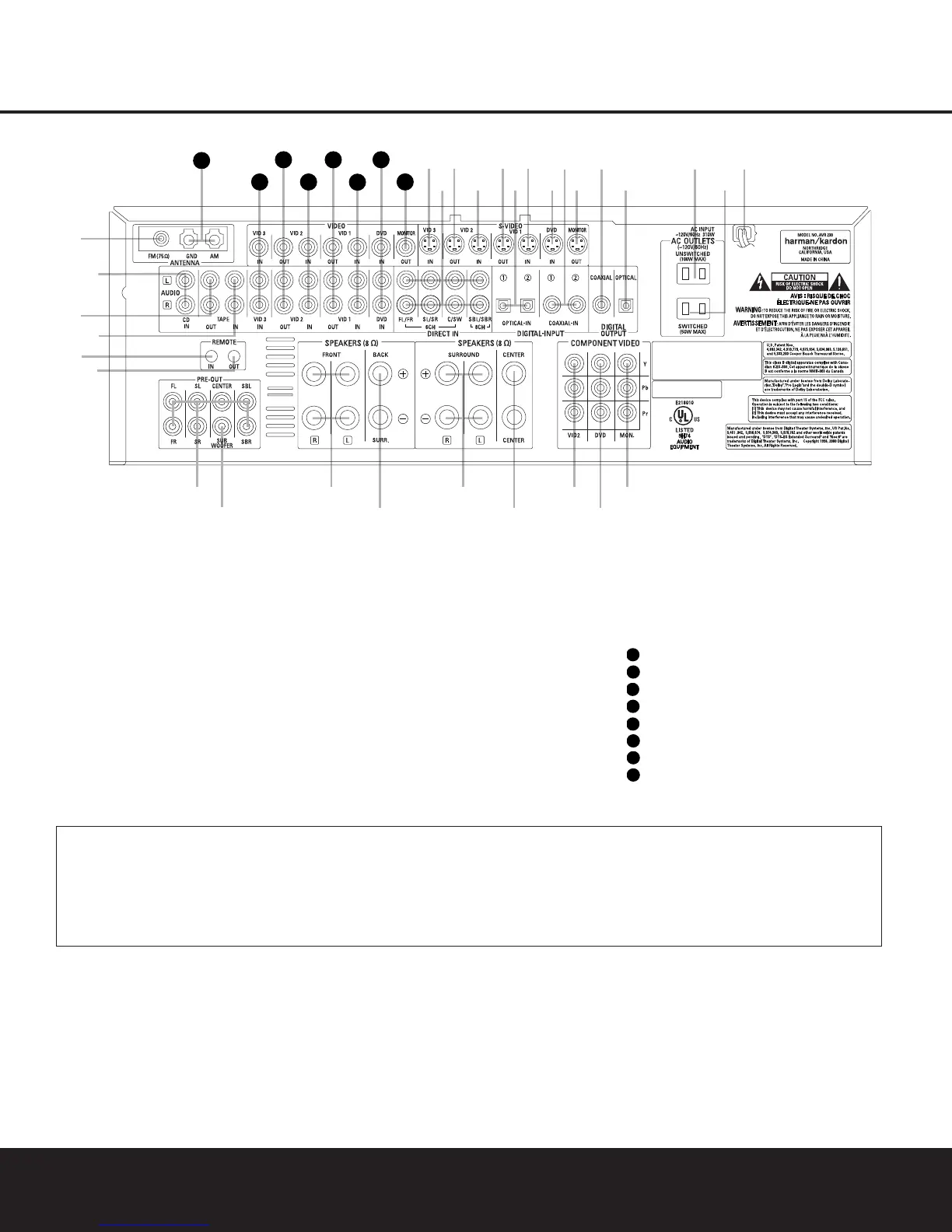

REAR-PANEL CONNECTIONS
¡ FM Antenna Jack
™ CD Audio Inputs
£ Tape Outputs
¢ Tape Inputs
∞ Remote IR Input
§ Remote IR Output
¶ Preamp Outputs
• Subwoofer Output
ª Front Speaker Outputs
‚ Surround Back Speaker Outputs
⁄ Surround Speaker Outputs
¤ Center Speaker Outputs
‹ Video 2 Component Video Inputs
› DVD Component Video Inputs
fi Component Video Monitor Outputs
fl AC Power Cord
‡ Switched AC Accessory Outlet
° Unswitched AC Accessory Outlet
· Optical Digital Audio Output
a Coaxial Digital Audio Output
b S-Video Monitor Output
c Coaxial Digital Audio Inputs
d DVD S-Video Input
e Video 1 S-Video Input
f Optical Digital Audio Inputs
g Video 1 S-Video Output
h Video 2 S-Video Input
i Video 2 S-Video Output
j 6/8-Channel Direct Inputs
k Video 3 S-Video Input
Video Monitor Output
DVD Audio/Video Inputs
Video 1 Audio/Video Inputs
Video 1 Audio/Video Outputs
Video 2 Audio/Video Inputs
Video 2 Audio/Video Outputs
Video 3 Audio/Video Inputs
AM Antenna Terminals
38
37
36
35
34
33
32
31
NOTE: To assist in making the correct connections for
multichannel input, output and speaker connections,
all connection jacks and terminals are color-coded
in conformance with the CEA standards as follows:
Front Left: White
Front Right: Red
Center: Green
Surround Left: Blue
Surround Right: Gray
Surround Back Left: Brown
Surround Back Right: Tan
Subwoofer: Purple
Coaxial Digital Audio: Orange
Composite Video: Yellow
Component Video “Y”: Green
Component Video “Pr”: Red
Component Video “Pb”: Blue
¡ FM Antenna Jack: Connect the supplied indoor (or
an optional external) FM antenna to this terminal.
™ CD Audio Inputs: Connect these jacks to the
analog audio output of a compact disc player or CD
changer.
£ Tape Outputs: Connect these jacks to the
RECORD/INPUT jacks of an audio recorder.
¢ Tape Inputs: Connect these jacks to the
PLAY/OUT jacks of an audio recorder.
∞ Remote IR Input: If the AVR 230’s front-panel
IR sensor is blocked due to cabinet doors or other
obstructions, an external IR sensor may be used.
Connect the output of the sensor to this jack.
§ Remote IR Output: This connection permits the
IR sensor in the receiver to serve other remote con-
trolled devices. Connect this jack to the “IR IN” jack on
Harman Kardon (or other compatible) equipment.
¶ Preamp Outputs: Connect these jacks to an
optional, external power amplifier for applications
where higher power is desired.
NOTE: To make it easier to follow the instructions that refer to this illustration, a larger copy may be downloaded from the Product Support section for this product
at www.harmankardon.com.

Harman Kardon AVR 230 Specifications

General

Dolby Digital	Yes
DTS	Yes
Input Sensitivity	200mV
Signal-to-Noise Ratio	100dB
Impedance	8 ohms
Type	AV Receiver
Input Impedance	47k ohms
Total Harmonic Distortion	0.07%
Surround Sound Formats	Dolby Digital, DTS, Dolby Pro Logic II
Digital outputs	1 optical
Width	440mm
Height	165mm
Power Output per Channel	50W
Frequency Response	10Hz – 100kHz
Audio D/A Converter	24-bit/192kHz
Digital inputs	3 Optical, 3 Coaxial
Video Inputs	4 Composite
Video Outputs	1 Composite, 1 S-Video
Audio Inputs	6 x RCA
Depth	376mm
Audio Outputs	1 Analog
