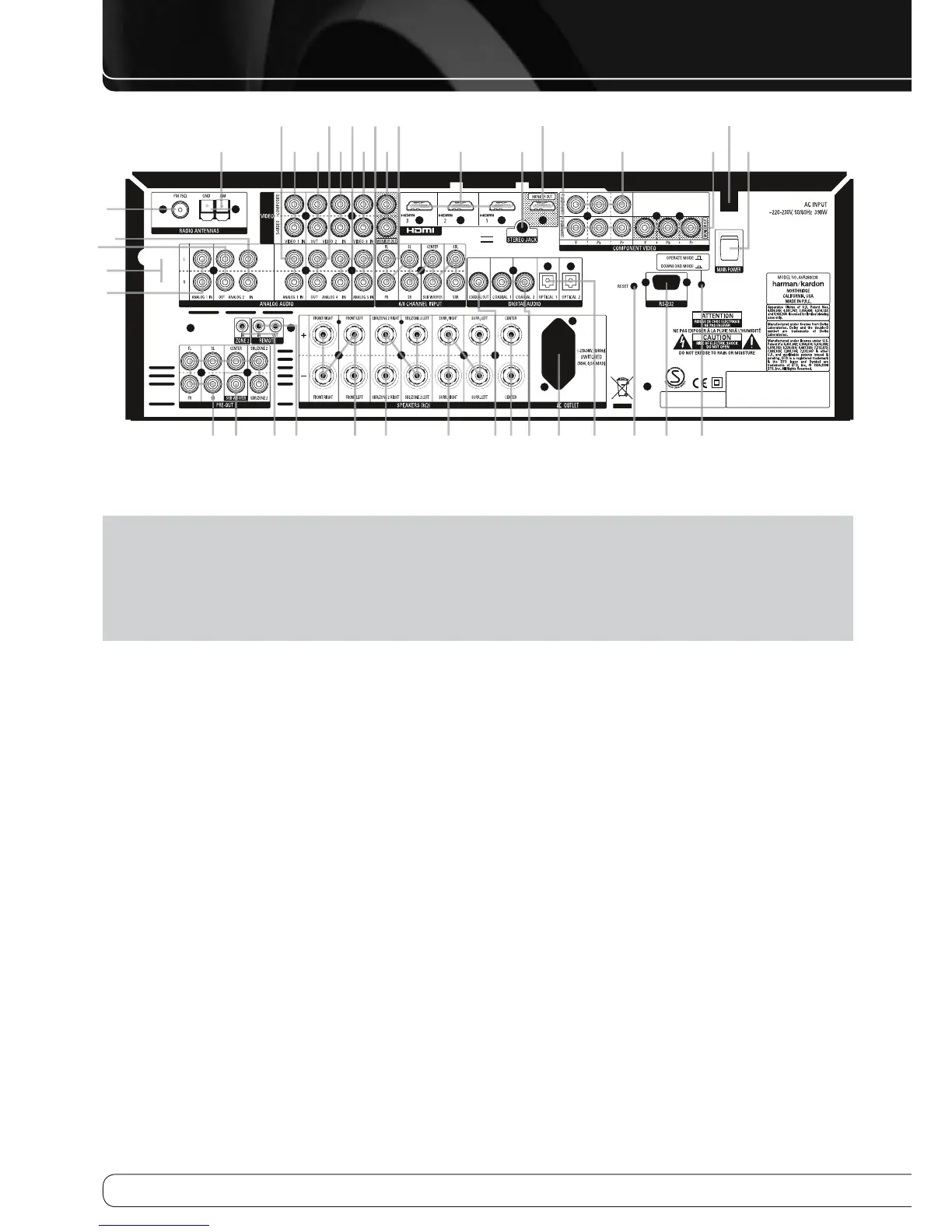

REAR-PANEL CONNECTIONS
0
AM Antenna:
Connect the AM loop antenna supplied with the
receiver to these terminals. If an external AM antenna is used, make
connections to the AM and GND terminals in accordance with the
instructions supplied with the antenna.
1
FM Antenna:
Connect the supplied indoor or an optional external FM
antenna to this terminal.
2
Analog 2 IN:
Connect these jacks to the PLAY/OUT audio jacks on any
audio or video source.
3
Analog 2 OUT:
Connect these jacks to the REC/IN audio jacks on any
audio or video source.
4
Subwoofer Output:
Connect this jack to the line-level input of a
powered subwoofer. If an external subwoofer amplifier is used, connect
this jack to the subwoofer amplifier input.
5
Analog 5 IN:
Connect these jacks to the PLAY/OUT audio jacks on any
audio or video source.
6
Analog 1 IN:
Connect these jacks to the PLAY/OUT audio jacks on any
audio or video source.
7
Analog 4 OUT:
Connect these jacks to the REC/IN audio jacks on any
audio or video source.
8
Stereo Jack IN:
This input is an extra Audio Input, where you can
connect any device with a stereo mini-jack such as an MP3-player or
portable CD player from its headphone output jack or line out jack.
9
8-Channel Direct Inputs:
These jacks are used for connection to
source devices such as DVD-Audio, Blu-ray, HD-DVD or SACD players with
discrete analog outputs. Depending on the source device in use, all eight
jacks may be used, though in many cases only connections to the front
left/right, center, surround left/right and LFE (subwoofer input) jacks
will be used for standard 5.1 audio signals.
A
Digital Audio Output:
Connect this jack to the matching digital
input connector on a digital recorder such as a CD-R or MiniDisc recorder.
B
Video Monitor Outputs:
Connect these jacks to the composite
and/or S-Video input of a TV monitor or video projector to view the
on-screen menus and the output of any standard Video or S-Video
source selected by the receiver’s video switcher.
NOTE:
To assist in making the
correct connections for multichannel
input/output and speaker
connections, all connection jacks
and terminals have been color coded
in conformance with the latest CEA
standards as follows:
Front Left:......................White
Front Right: ...................Red
Center: ..........................Green
Surround Left: ...............Blue
Surround Right: ............Gray
Surround Back Left: ......Brown
Surround Back Right: ....Tan
Subwoofer (LFE): ..........Purple
Digital Audio: ...............Orange
Composite Video: ..........Yellow
Component Video “Y”: ..Green
Component Video “Pr”: . Red
Component Video “Pb”: . Blue
To Next Page
