Harman Kardon AVR 2650 Quick Start Guide

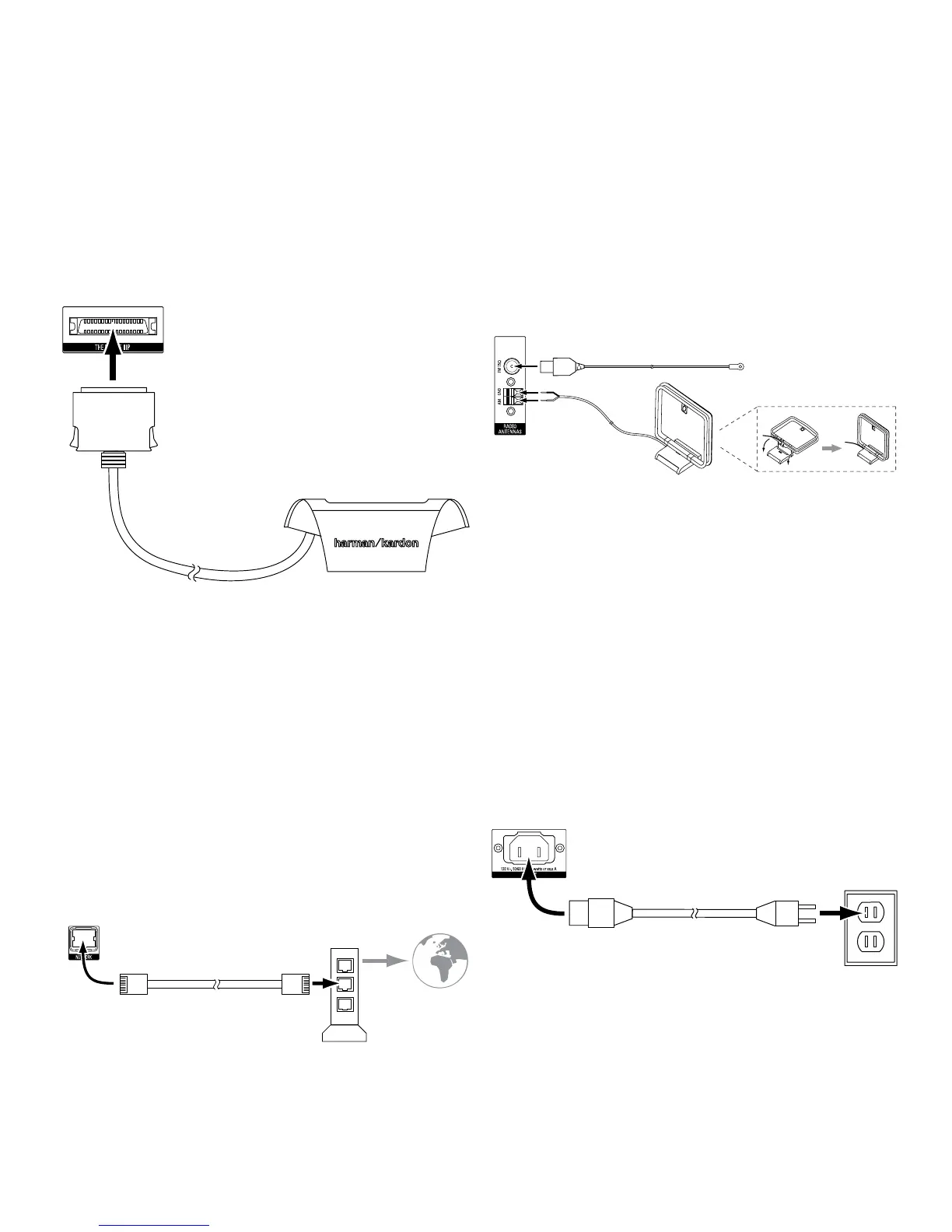

Connections
AVR
Connect The Bridge IIIP
Connect an optional The Bridge IIIP to the receiver’s The Bridge IIIP connector. Insert the plug all
the way until it snaps into place in the connector. IMPORTANT: Connect The Bridge IIIP only
with the receiver’s power turned OFF.
Connect Your Local Area Network
Use a Cat. 5 or Cat. 5E cable (not supplied) to connect the receiver’s Network connector to your
home network to enjoy Internet radio and content from DLNA
®
-compatible devices that are
connected to the network.
Connect the Radio Antennas
• Connect the supplied FM antenna to the receiver’s FM 75Ω antenna connector. For the best
reception, extend the FM antenna as far as possible.
• Bend and fold the base of the supplied AM antenna as shown and connect the antenna wires
to the receiver’s AM and Gnd connectors. (You can connect either wire to either connector.)
Rotate the antenna as necessary to minimize background noise.
NOTE: To connect an optional SIRIUS Connect™ home tuner (AVR 3650 and AVR 2650 only),
RS-232, multi-zone, remote IR and trigger equipment, please download the AVR 3650, AVR
365, AVR 2650, AVR 265 Owner’s Manual from www.harmankardon.com.
Connect to AC Power
Connect the AC power cord to the receiver’s AC Input connector and then to a working,
non-switched AC power outlet.
Receiver
The Bridge IIIP
Connector
The Bridge IIIP
To
Internet
and LAN
Receiver
Network
Connector
Network
Modem
Cat. 5/5E Cable
(not supplied)
FM Antenna
(supplied)
AM Antenna
(supplied)
Bend and fold base
Receiver
Antenna
Connectors
Receiver
AC Input
Connector
AC Power
Outlet
Power Cord
(supplied)
7
