Harman Kardon AVR 3000 User Manual

REAR PANEL CONNECTIONS 9

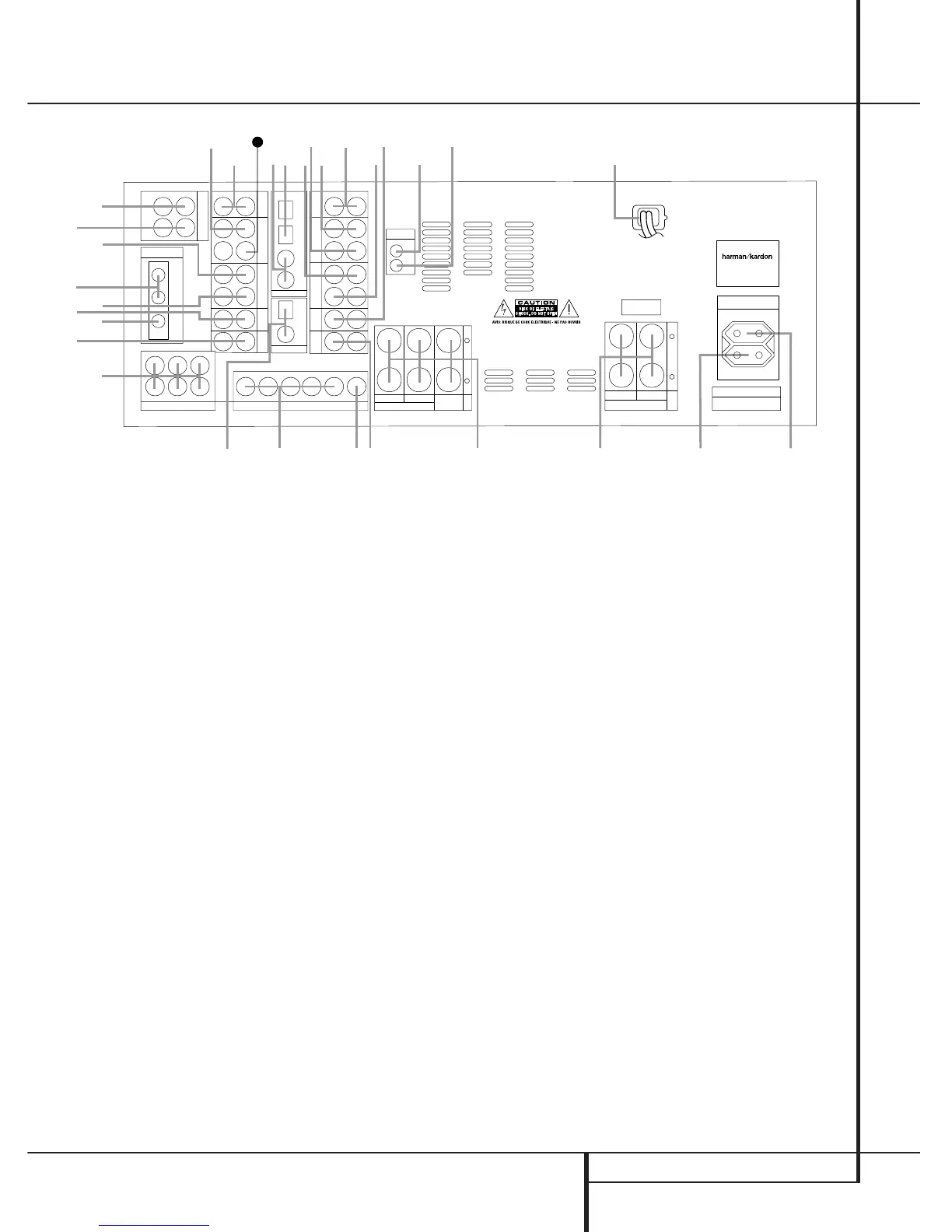

Rear Panel Connections
AC INPUT
~230V/50HZ A
TAPE
FRONT SPKRS (8Ω)
RIGHT LEFT
CENTER
SPKR (8Ω)
PRE OUT
6 CH. DIRECT INPUT
ANTENNA
DIGITAL IN
DIGITAL OUT
VID 3 VID 3
REMOTE
VID 2 VID 2
OPT
OPT
COAX
COAX
VID 1 VID 1
DVD DVD
CD
MON.
OUT
IN
OUT
AM
GND
FM
75Ω
IN
OUT
1
2
1
2
IN
OUT
IN
OUT
IN
OUT
L R
CENTER SL FL
SUBWOOFER SR FR
L R
VIDEO S-VIDEO
+
–
+
–
SURR. SPKRS (8Ω)
SERIAL NO.
RIGHT LEFT
⁄
¤
‹
›
fi
fl
°
a
b
c
d
e
f
g
j
‡
¢
§
•
FL FR SL SR CENTER SUBWOOFER
31
IN
OUT
h
k
‚
¡
™
£
∞
¶
ª
i
·
MODEL NO. AVR 3000
NORTHRIDGE
CALIFORNIA, USA
MADE IN CHINA
AC OUTLETS
~230V/50Hz
UNSWITCHED / 100W MAX
SWITCHED / 50W MAX






























Tape Inputs
Tape Outputs
Video 1 Audio Inputs
AM Antenna
Video 1 Audio Outputs
DVD Audio Inputs
FM Antenna
CD Inputs
6-Channel Direct Inputs
Digital Audio Outputs
Preamp Outputs
Subwoofer Output
Video Monitor Outputs
Front/Center Speaker Outputs
Surround Speaker Outputs
Switched AC Accessory Outlet
Unswitched AC Accessory Outlet
AC Power Cord
Remote IR Output
Remote IR Input
DVD Video Inputs
Video 1 Video Outputs
Video 3 Video Inputs
Video 2 Video Inputs
Video 2 Video Outputs
Video 1 Video Inputs
Optical Digital Inputs
Coaxial Digital Inputs
Video 3 Audio Inputs
Video 2 Audio Inputs
Video 2 Audio Outputs
 Tape Inputs: Connect these jacks to the
PLAY/OUT jacks of an audio recorder.
 Tape Outputs: Connect these jacks to the
RECORD/INPUT jacks of an audio recorder.
 Video 1 Audio Inputs: Connect these jacks
to the PLAY/OUT audio jacks on a VCR or other
video source.
 AM Antenna: Connect theAM loop antenna
supplied with the receiver to these terminals. If an
external AM antenna is used, make connections to
the AM and GND terminals in accordance with
the instructions supplied with the antenna.
 Video 1 Audio Outputs: Connect these
jacks to the RECORD/INPUT audio jacks on
a VCR or any other Audio recorder.
 DVD Audio Inputs: Connect these jacks to
the analog audio jacks on a DVD or other video
source.
 FM Antenna: Connect the supplied indoor or
an optional external FM antenna to this terminal.
 CD Inputs: Connect these jacks to the ana-
log output of a compact disc player or CD
changer.
 6-Channel Direct Inputs: If an external
digital audio decoder is used, connect the out-
puts of that decoder to these jacks.
 Digital Audio Outputs: Connect these
jacks to the matching digital input connector on
a digital recorder such as a CD-R or MiniDisc
recorder.
 Preamp Outputs: These jacks may be con-
nected to an external power amplifier.
 Subwoofer Output: Connect this jack to
the line-level input of a powered subwoofer. If
an external subwoofer amplifier is used, connect
this jack to the subwoofer amplifier input.
