Harman Kardon AVR 40 User Manual

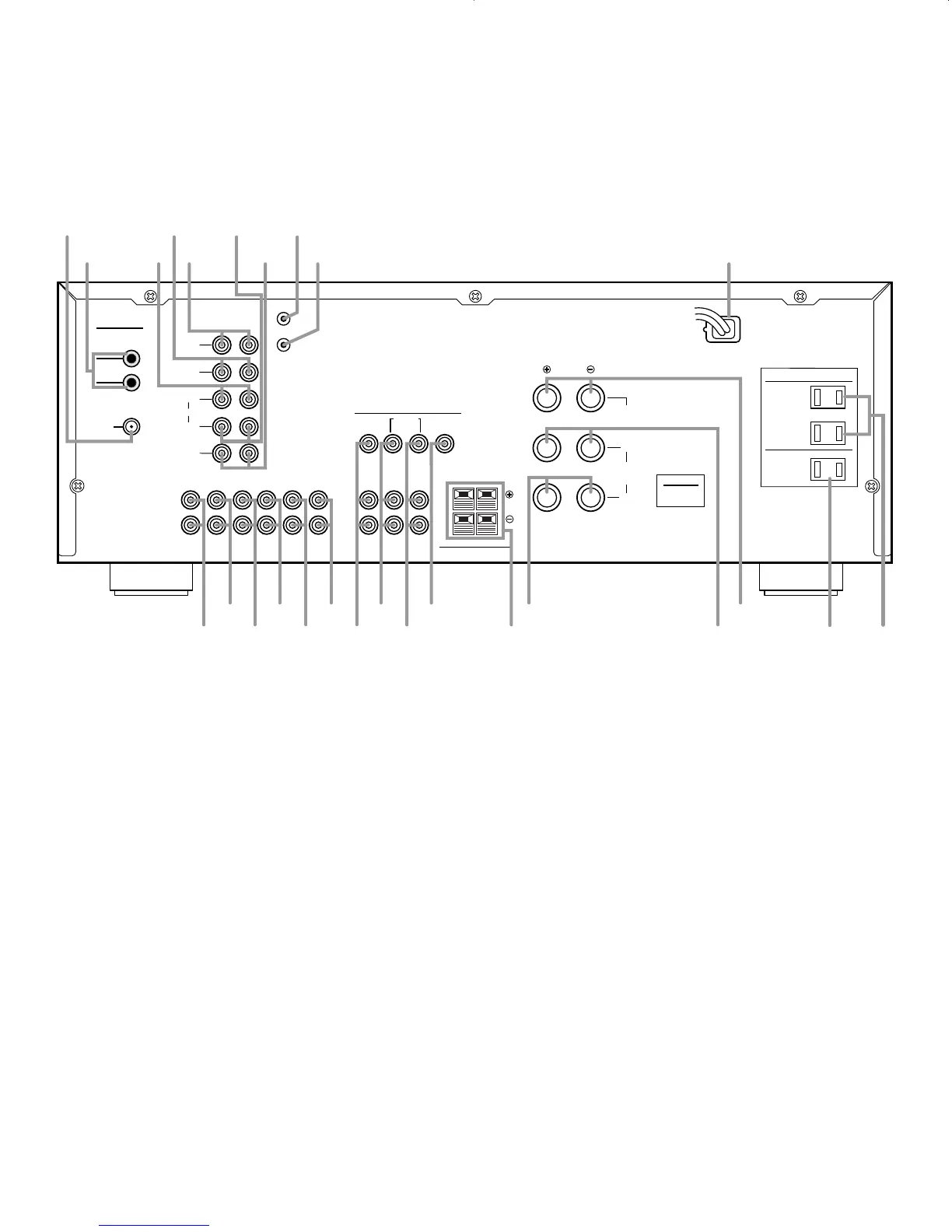

Rear Panel Connections
7
AVR40 rev (j) 4/16/97
SWITCHED
TOTAL
1A MAX 100W
AC 120V/60Hz
UN-
SWITCHED
1A MAX 100W
AC 120V/60Hz
AC OUTLETS
AC INPUT
AC 120V/60HZ
2A
IN
OUT
FM
75Ω
AM
LOOP
ANTENNA
REMOTE
CONTROL
LEFT
RIGHT
CD TV TAPE 2
PLAY REC PLAY REC
IN IN
(USE 8 OHM MIN SPEAKERS)
OUT OUT
LEFTRIGHT
PLAYPLAY REC
VIDEO 2 VIDEO 1 MONITOR
TAPE 1 MON VIDEO 2 VIDEO 1
"Please Note: Sound will not be produced through the rear speakers
unless BOTH L&R speakers are connected"
VIDEO
REAR SPEAKERS (4Ω)
SERIAL NO.
MODEL NO.: AVR40
HARMAN KARDON
NORTHRIDGE
CALIFORNIA U.S.A.
RIGHT
MAIN IN
FRONT
LEFT
PRE OUT
CENTER
PRE OUT
SUB
WOOFER
OUT
REAR
PRE OUT
LEFT
RIGHT
CENTER
SPEAKER
8Ω
FRONT
SPEAKERS
8Ω
MADE IN KOREA
¡ £ ∞ ª
¶
‹ fi fl⁄
™ ¢ § • ‚ ¤ ›
‡°a
·
b
ef
dg
c
"Please Note: Sound will not be produced through the rear speakers
unless BOTH L&R speakers are connected"
VIDEO 2 VIDEO 1
¡ CD Input
™ TV Input
£ Tape 2 Input
¢ Tape 2 Output
∞ Tape 1 Monitor Input
§ Tape 1 Monitor Output
¶ Video 2 A/V Inputs
• Video 1 A/V Inputs
ª Video 1 A/V Outputs
‚ Video Monitor Output
⁄ Rear Speaker Outputs
¤ Front Right Speaker
‹ Front Left Speaker
› Center Speaker
fi Unswitched Accessory AC Power Outlet
fl Switched Accessory AC Power Outlets
‡ AC Power Cord
° Remote Control Extension Output
· Remote Control Extension Input
a Subwoofer Outputs
b Front Preamp Outputs
c Main In
d Rear (Surround) Outputs
e Center Preamp Outputs
f AM Antenna Input
g FM Antenna Input
