HCF4053B
2/10

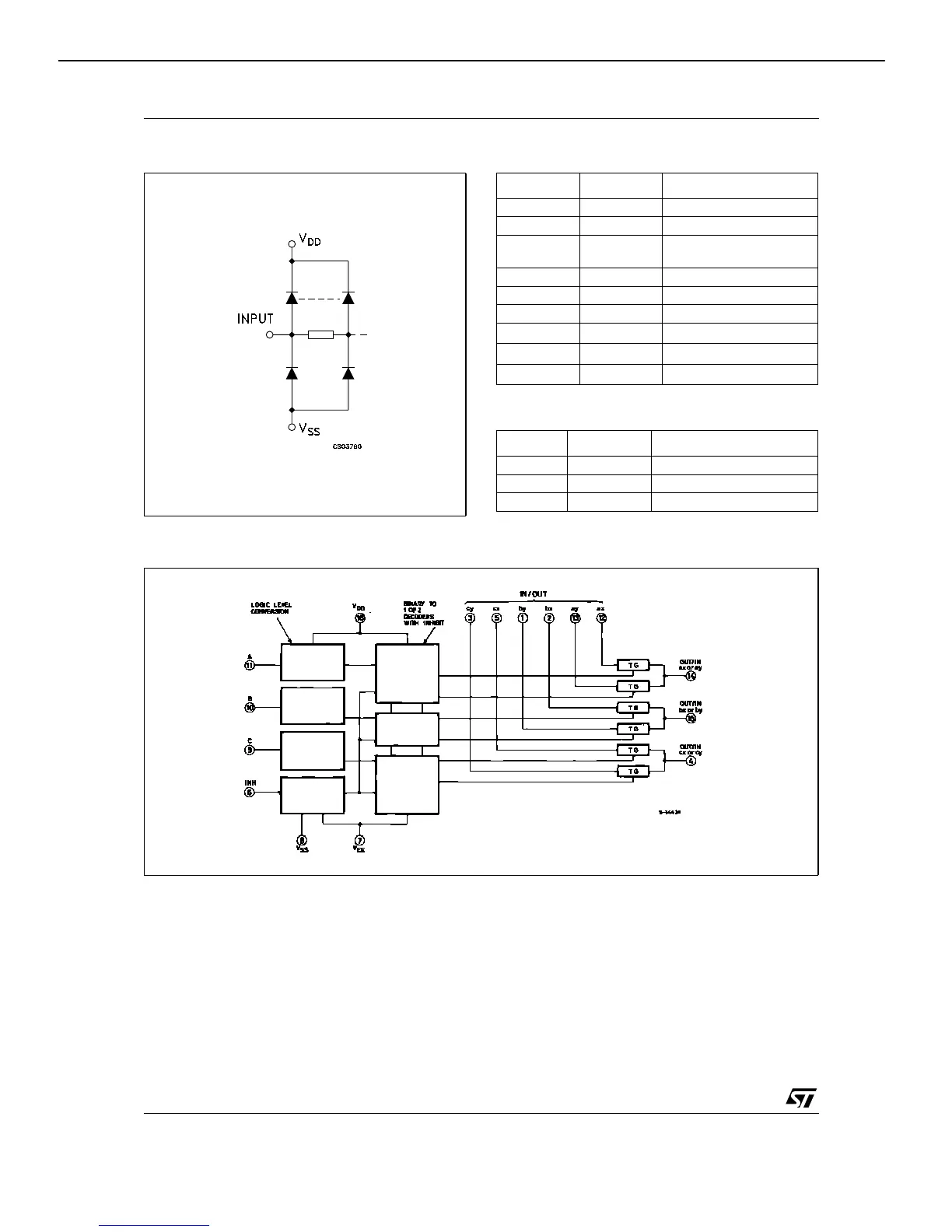

INPUT EQUIVALENT CIRCUIT PIN DESCRIPTION
TRUTH TABLE
X : Don’t Care
FUNCTIONAL DIAGRAM
PIN No SYMBOL NAME AND FUNCTION
11, 10, 9 A, B, C Binary Control Inputs
6 INH Inhibit Inputs
12, 13, 2, 1,
5, 3
IN/OUT
ax,ay,bx,by,cx,cy Input/
Output
14 OUT/IN ax or ay
15 OUT/IN bx or by
4 OUT/IN cx or cy
7
V
EE
Supply Voltage
8
V
SS
Negative Supply Voltage
16
V
DD
Positive Supply Voltage
INHIBIT C or B or A
0 0 ax or bx or cx
0 1 ay or by or cy
1 X NONE
