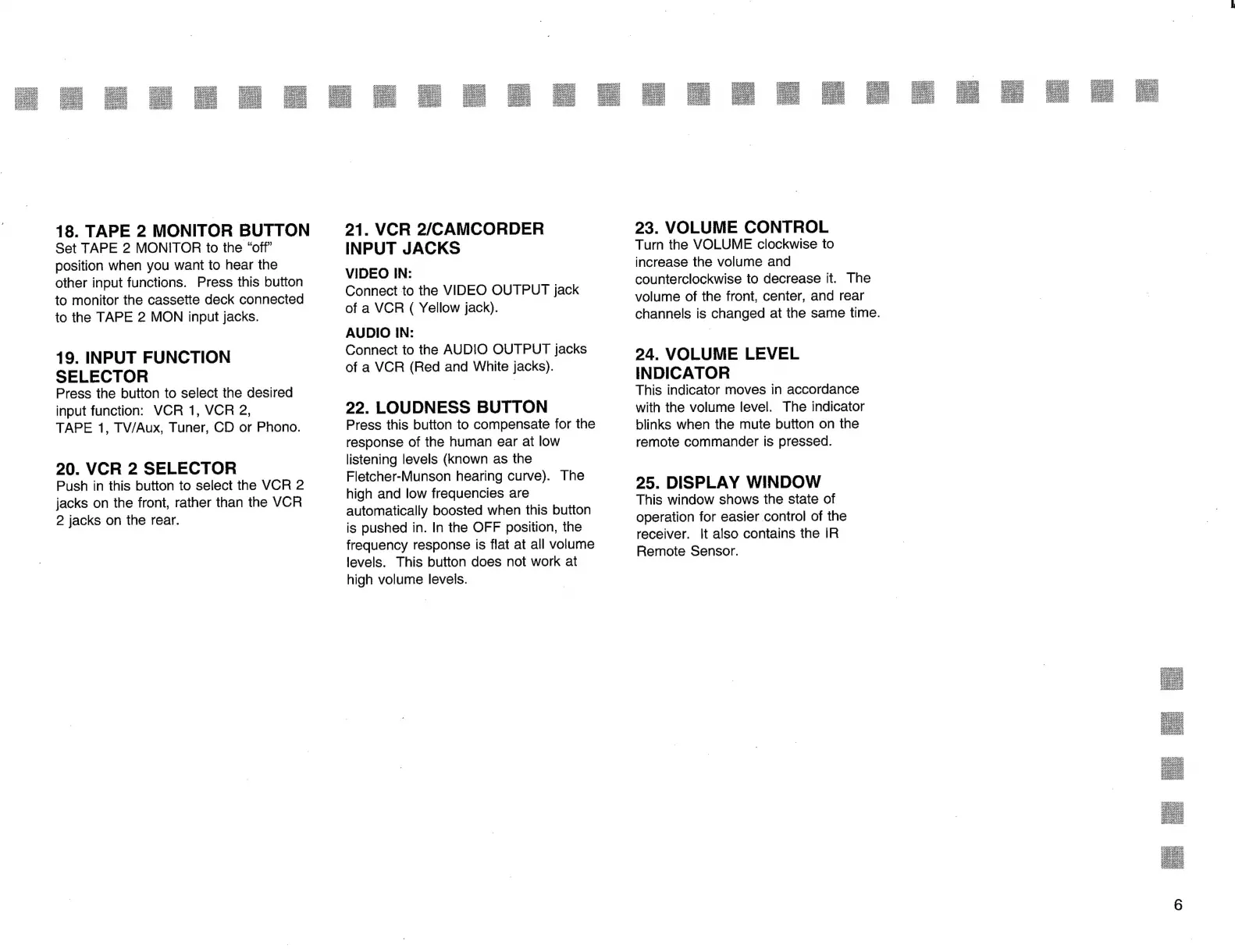

18. TAPE 2 MONITOR BUTTON
Set TAPE 2 MONITOR to the “off”
position when you want to hear the
other input functions. Press this button
to monitor the cassette deck connected
to the TAPE 2 MON input jacks.
19. INPUT FUNCTION
SELECTOR
Press the button to select the desired
input function: VCR 1, VCR 2,
TAPE 1, TV/Aux, Tuner, CD or Phono.
20. VCR 2 SELECTOR
Push in this button to select the VCR 2
jacks on the front, rather than the VCR
2 jacks on the rear.
ee
<2 ms
FF
21. VCR 2/CAMCORDER
INPUT JACKS
VIDEO IN:
Connect to the VIDEO OUTPUT jack
of a VCR ( Yellow jack).
AUDIO IN:
Connect to the AUDIO OUTPUT jacks
of a VCR (Red and White jacks).
22. LOUDNESS BUTTON
Press this button to compensate for the
response of the human ear at low
listening levels (known as the
Fletcher-Munson hearing curve). The
high and low frequencies are
automatically boosted when this button
is pushed in. In the OFF position, the
frequency response is flat at all volume
levels. This button does not work at
high volume levels.
23. VOLUME CONTROL
Turn the VOLUME clockwise to
increase the volume and
counterclockwise to decrease it. The
volume of the front, center, and rear
channels is changed at the same time.
24. VOLUME LEVEL
INDICATOR
This indicator moves in accordance
with the volume level. The indicator
blinks when the mute button on the
remote commander is pressed.
25. DISPLAY WINDOW
This window shows the state of
operation for easier control of the
receiver. It also contains the IR
Remote Sensor.
