- 60 -
REF.NO. PART NO DESCRIPTION
1 4940S-6939A KNOB POWER
2 3790S-M079A WINDOW POWER
3 3300S-X002A PLATE PET
4 6871RZ1963A PCB ASSY LED
5 4510S-1019A LEVER POWER
6 3580S-C108A DOOR PLAY
7 3580S-C105A DOOR ACDR
8 6721R-0301A MECHA Q1(PLAYER)
9 4405H-1068C MECHA E2
10 3610S-0192A FOOT BOTTOM
11 3140S-P913B CHASSIS MAIN
12 3790S-M072A WINDOW FL
13 4350S-0001A RING 3 KEY
14 4350S-0002A RING 6 KEY
15 3858S-X170A SHEET FL
16 3720S-M113A PANEL FRONT
17 3858S-X171A SHEET LCD
18 4940S-6938A KNOB PLAY 3K
19 4940S-6937A KNOB SEESAW 4K
20 4940S-6940A KNOB REC 8K
21 4940S-6941A KNOB VOLUME
22 6871RJ1963A PCB ASSY HEADPHONE
23 6871RU0001A PCB ASSY VOLUME
24 6871SF42GAA PCB ASSY FL/KEY
25 6871RP42NAA PCB ASSY POWER
26 6871S-429AB PCB ASSY IO
27 3720S-P014A PANEL BACK
28 3140S-P911C CHASSIS TOP
29 353-046K SCREW(M3)
30 353-633A SCREW(M4)
31 3846S-0208A MARK BADGE
32 6871S-423AB PCB PLAY
33 6871S-42QAA PCB REC
34 4766R-0003A FELT FOOT
35 3550S-1027B COVER-RW DECK

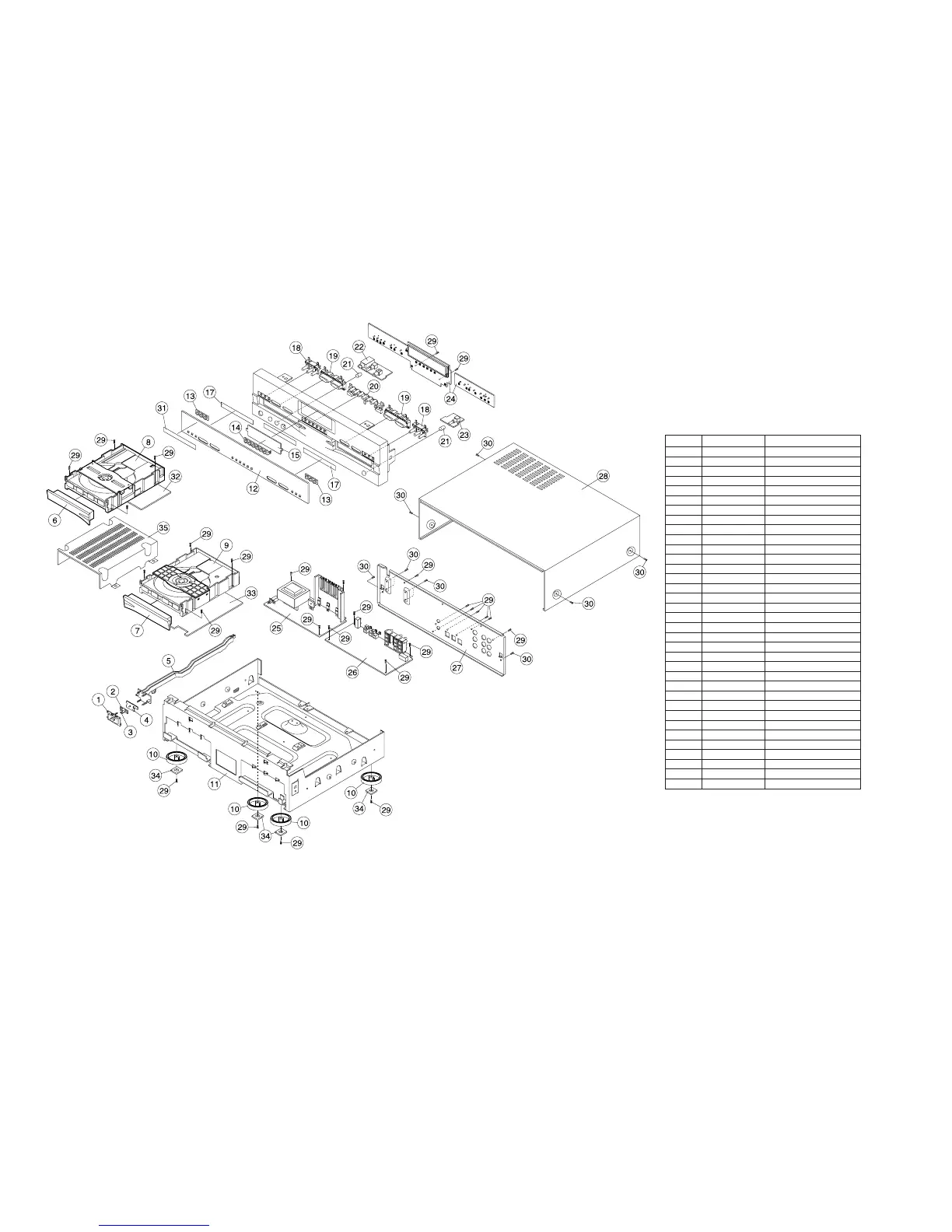

EXPLODED VIEW/PARTS LIST
●
MAIN SECTION
