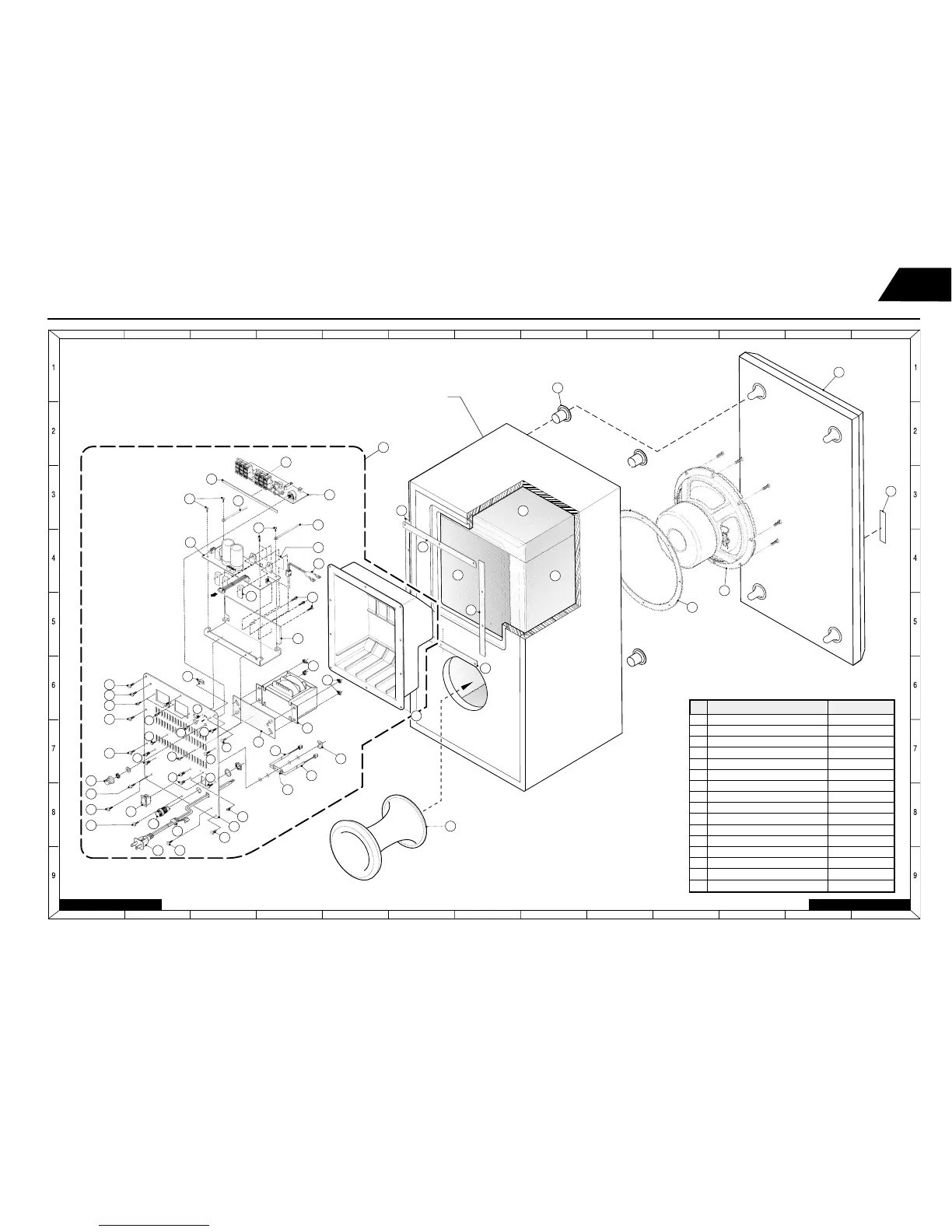

SUB-TS1 EXPLODED VIEW
25
27
41
25
26
24
24
21
22
23
17
14
14
8
11
10
12
36
2
35
35
32
31
31
32
35
9
38
28
28
16
29
24
18
18
13
29
28
11
13
11
28
38
6
5
4
28
38
28
28
28
28
15
38
29
3
7
19
20
42
44
43
34
40
39
VIEWING
CABINET
BOTTOM
HGFEDCBA
ABC
LMK
J
I
FGH
DE LMI
J
K
DESCRIPTION PART NUMBER
#3 PLASTIC KNOB 700KB800
#4 POWER SWITCH 180PBR12C11S
#5 FUSE HOLDER 15552001
#6 POWER CORD 120V 152U602015
#8 POWER TRANSFORMER 150E8604104
#11 AMPLIFIER PLATE 640RP125-4
#15 SLIDE SWITCH AUTO-ON 180SMS50126
#21 FULLY LOADED MAIN PCB 1010SUB125A
#22 MICA INSULATOR 1933M2520
#34 HARMAN KARDON LOGO SZ5162
#36 PORT TUBE 700PT125
#40 8" WOOFER 20MF10DJ-DW04
#41 SPEAKER TERMINALS 1742-CJ9030
#42 AMPLIFIER ASSEMBLY 106HKTS1-1
#43 GRILLE XC085000
#44 GRILLE CUPS (RETAINERS) WI5192
Ref.
No.
SUB-TS1
Exploded View
CABINET
NOT FOR SALE
SUB-TS1 PAGE 11-1of2 SUB-TS1 PAGE 11-2of2
