Dolby* Digital or DTS
®
(or Other
Digital Surround Mode) Connection
USE THIS INSTALLATION METHOD FOR
DOLBY DIGITAL, DTS OR OTHER DIGITAL
SURROUND PROCESSORS:
Use the line-level input jack marked SUB
∞ for the Low-Frequency Effects channel.
Connect this jack to the subwoofer output
or LFE output on your receiver or amplifier.
Connect each speaker to the corresponding
speaker terminals on your receiver or
amplifier.
Make sure you’ve configured your surround
sound processor for “Subwoofer On.” The
front left, front right, center and surround
speakers should all be set to “Small.”
When all connections have been made, plug
the AC power cord on the subwoofer into
an AC outlet.

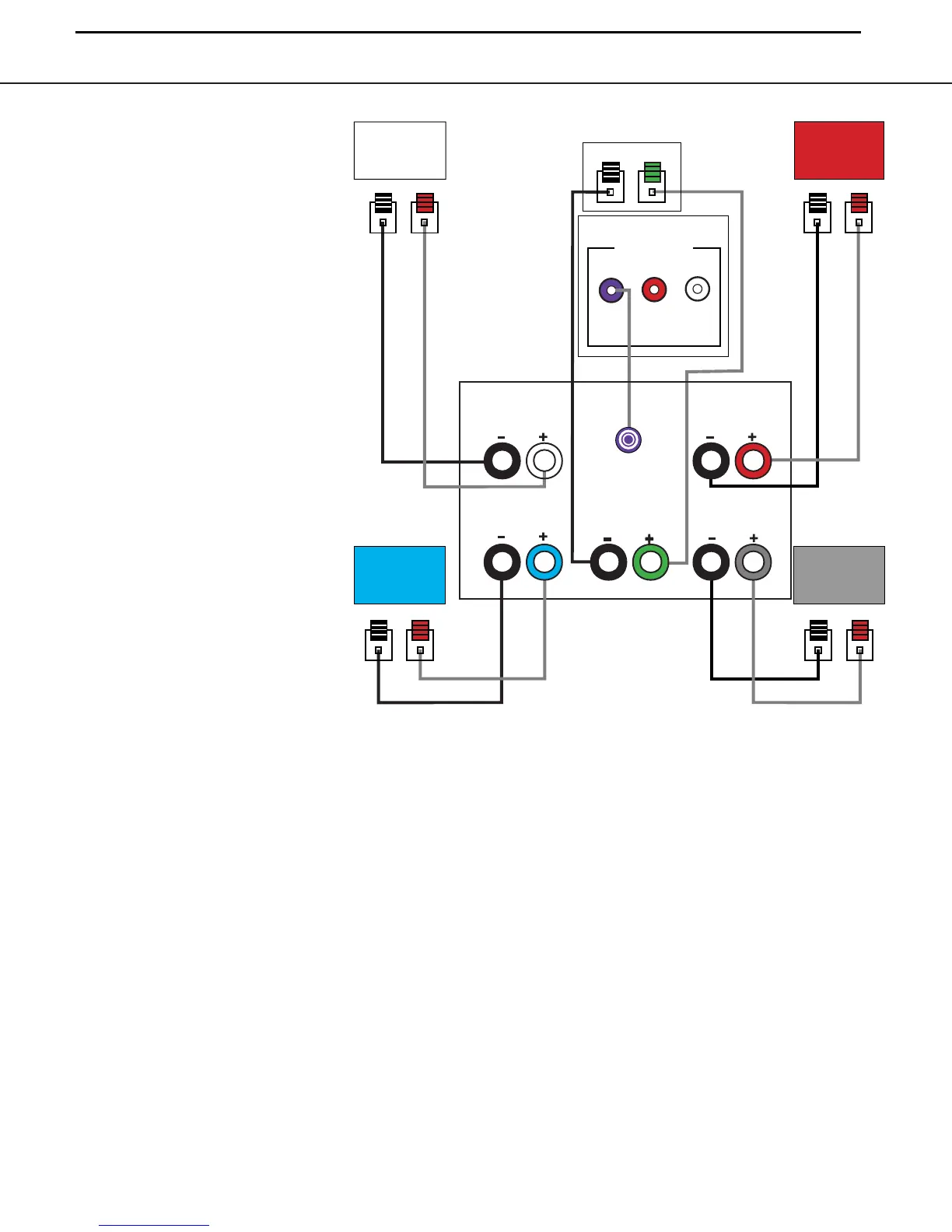

SPEAKER CONNECTIONS
LINE LEVEL IN
L
R
SUB
SUB/LFE
Out
SUB-TS14 Subwoofer
Receiver
Front
Left
Surround
Left
Front
Right
Surround
Right
Center
Surround
Right
Front
Right
Surround
Left
Front
Left
Center
– +
– +
– +
– +
– +
