SUB-TS14 SUBWOOFER AMPLIFIER PANEL CONTROLS AND CONNECTIONS 5

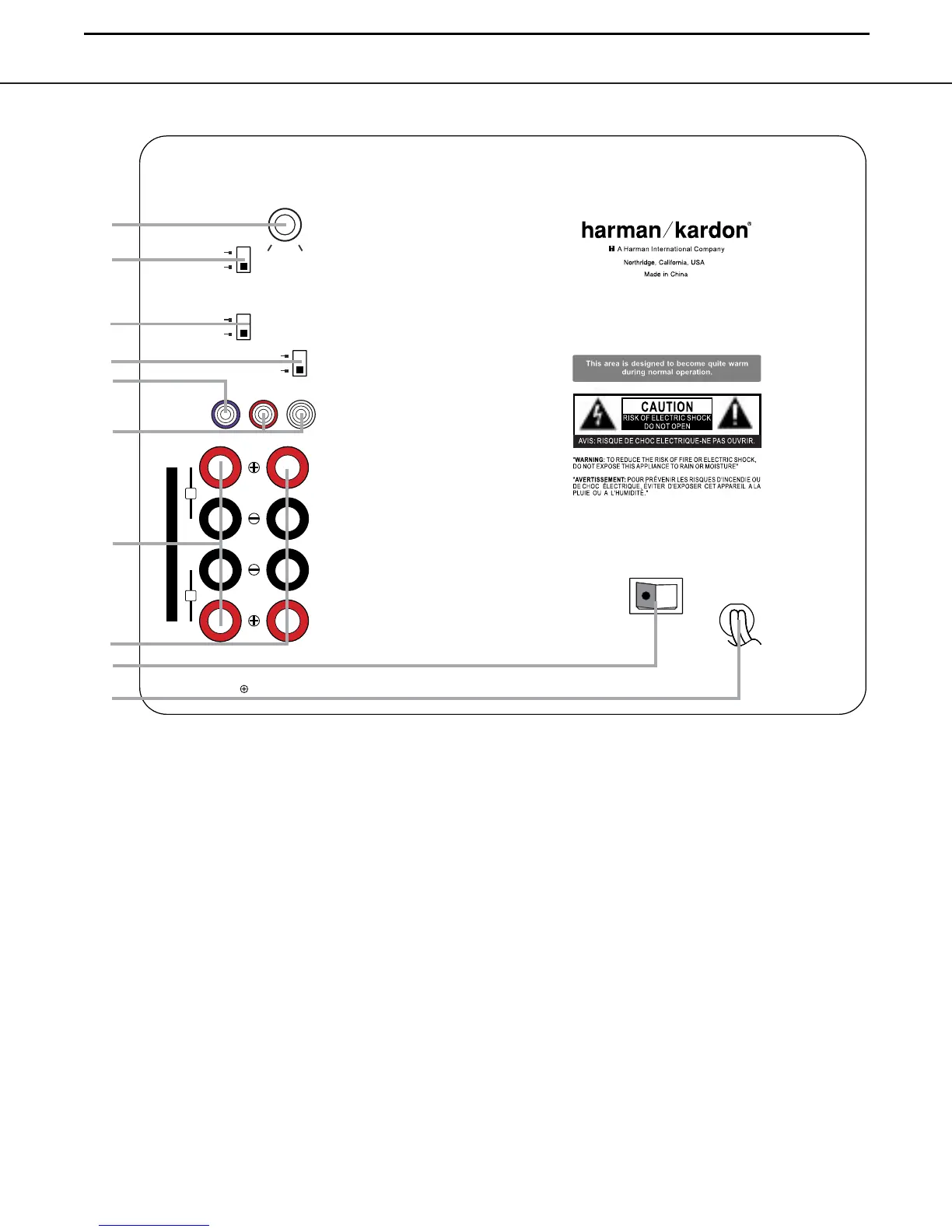

SUB-TS 14 SUBWOOFER AMPLIFIER PANEL CONTROLS AND CONNECTIONS
OFF
ON
AUTO
ON
FILTER
NORMAL
REVERSE
PHASE
INOUT
AC 120V~60Hz
POWER
R
L
LINE
LEVEL
IN
MAXMIN
IMPORTANT: CONNECT STRIPED WIRE
TO RED ( ) SPEAKER TERMINAL.
L
R
SUBWOOFER
LEVEL
SUB-TS14
For use with
HKTS 14 System
RISK OF ELECTRIC SHO CK
DO NOT OPEN
CAUTION
RISK OF ELECTRIC SH O CK
DO NOT OPEN
CAUTION
RISK OF ELECTRIC SH O CK
DO NOT OPEN
H
I
G
H
L
E
V
E
L
∞
™
£
¢
SUB
¡
§
ª
‚
¶
•
¡ Subwoofer-Level Control: Volume
may be adjusted using the Subwoofer-
Level Control.Turn the control clockwise
to increase the SUB-TS14’s volume, or
counterclockwise to decrease it.
™ High-Cut (Low-Pass) Filter Switch:
Placing this switch in the ON position acti-
vates circuitry that cuts out all audio input
signals above 120Hz.This allows the SUB-
TS14 to focus its power on reproducing the
low-frequency portion of the signal, avoiding
inefficiency and distortion. Engage this filter
when using the Speaker-Level Inputs •,
or when using the Line-Level Full-Range
Inputs §, unless your receiver or processor
processes its line-level output using a low-
pass filter.The filter has no effect when the
SUB Input ∞ is used.
£ Music-Sense On/Off Switch:When
placed in the AUTO position, and when the
Master Power Switch ª is turned on, the
SUB-TS14 will automatically turn itself on or
place itself in the Standby mode, depending on
whether it is receiving an audio signal.When
this switch is placed in the ON position, the
SUB-TS14 will remain on,whether or not it is
receiving an audio signal.
An LED located on top of the SUB-TS14
indicates whether the SUB-TS14 is in the
ON or STANDBY state when used with the
Music-Sense On/Off Switch £ in the
AUTO position.The LED is lit blue to indi-
cate that the SUB-TS14 is receiving an
¡ Subwoofer-Level Control
™ High-Cut (Low-Pass) Filter Switch
£ Music-Sense On/Off Switch
¢ Phase Switch
∞ Line-Level Subwoofer (SUB) Input
§ Line-Level Full-Range Inputs
¶ Speaker-Level Outputs
• Speaker-Level Inputs
ª Master Power Switch
‚ AC Power Cord
HKTS 14 OM 11/4/03 11:32 AM Page 7
SUB-TS14
harman/kardon
4
