Harman® • Absolute63 Owner’s Manual_R6 • 2016 -___ • 11/1718
3-90-999000c
Service Parts
Absolute63
Beginning Manufacturing Date: Dec 2016
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. Parts must be ordered from a dealer
or distributor. Hearth and Home Technologies does not sell directly to consum-
ers. Provide model number and serial number when requesting service parts from your
dealer or distributor.
Stocked at
Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
11 Load Door
11.1 Cast Latch, Knob & Screw 1-00-0119 Y
Wood Handle 3-40-00247
11.2 Load Door Rope
Black 4-00-999144P Y
Majolica Brown 1-00-999144-14 Y
11.3 Latch Bracket w/Hardware 1 Set 1-00-777665 Y
11.4 Gasket 3/16 RD Blk LD W/PSA 10 Feet 1-00-1186258229 Y
11.5 Glass w/Gasket 1-00-999146 Y
11.6 Glass Clips w/Hardware 1 Set 1-00-999145 Y
11.7 Load Door Hinge w/Hardware 1 Set 1-00-999114 Y
11.8 Gasket 3/8 4 Strand 30 Feet 1-00-00888 Y
12 Ashlip
Black 3-00-999129P
Majolica Brown 1-00-999129-14
13 Ash Door Handle Assembly 1 Set 1-00-777149 Y
Rollers & Hardware 1 Set 1-00-77723 Y
14 Ash Door, Complete 1-10-999135A
Gasket 3/8 4 Strand 30 Feet 1-00-00888 Y
15 Ash Pan 1-10-999133A Y
16 Inlet Cover 1-00-777607
17 Combustion Blower Fan Blade 1-10-574500A Y
18 Leg w/Hardware
Black
1-00-249100 Y
Majolica Brown
1-00-249100-14 Y
Leg Leveling Kit 1 Set 1-00-12302
19 Right Side Cast
Black 4-00-999131P
Majolica Brown 1-00-999131-14
20 Gasket, Burn Pot / Tailpipe Pkg of 5 1-00-07381 Y
Additional service parts on following page.

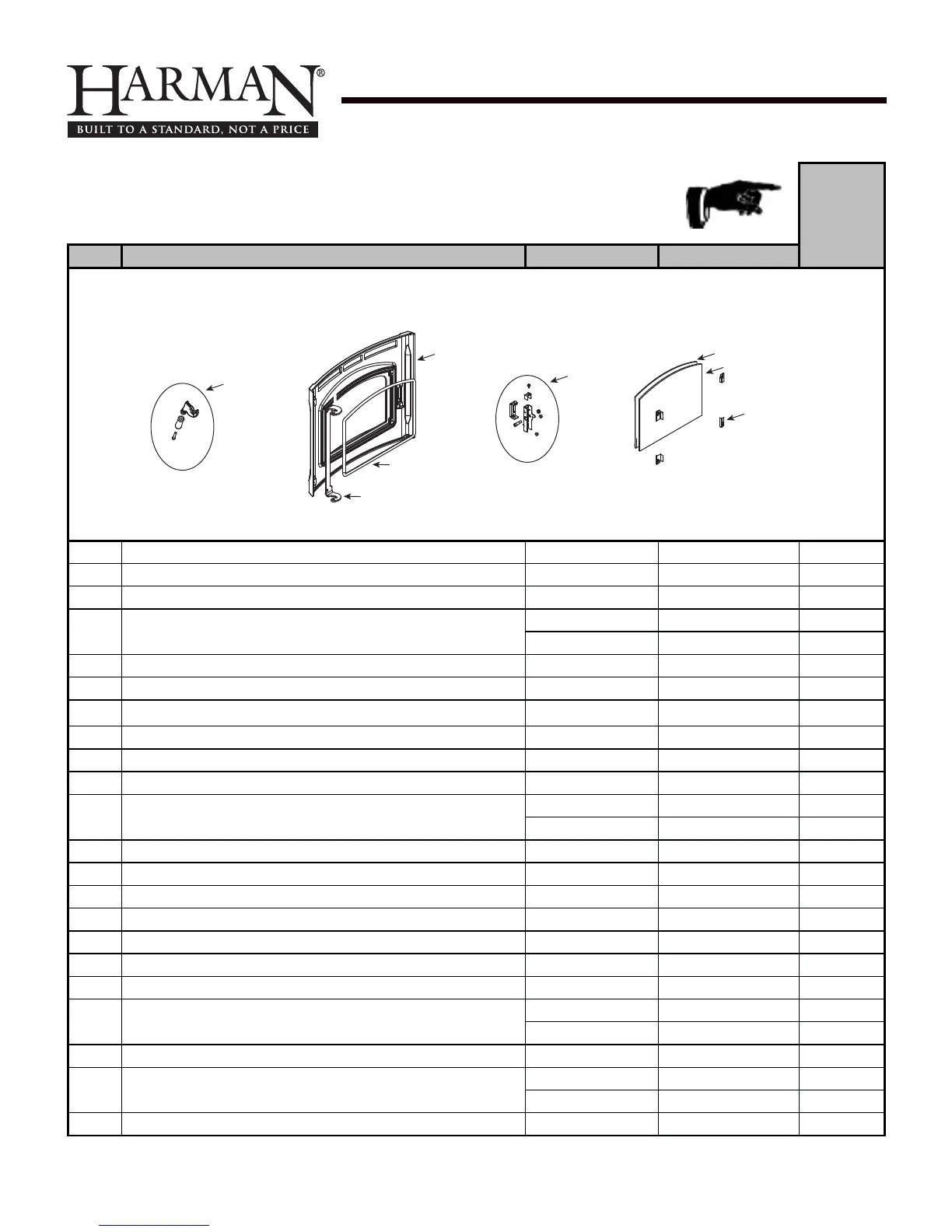

#11 Load Door
11.1
11.2
11.3
11.4
11.5
11.6
11.7
11.8
