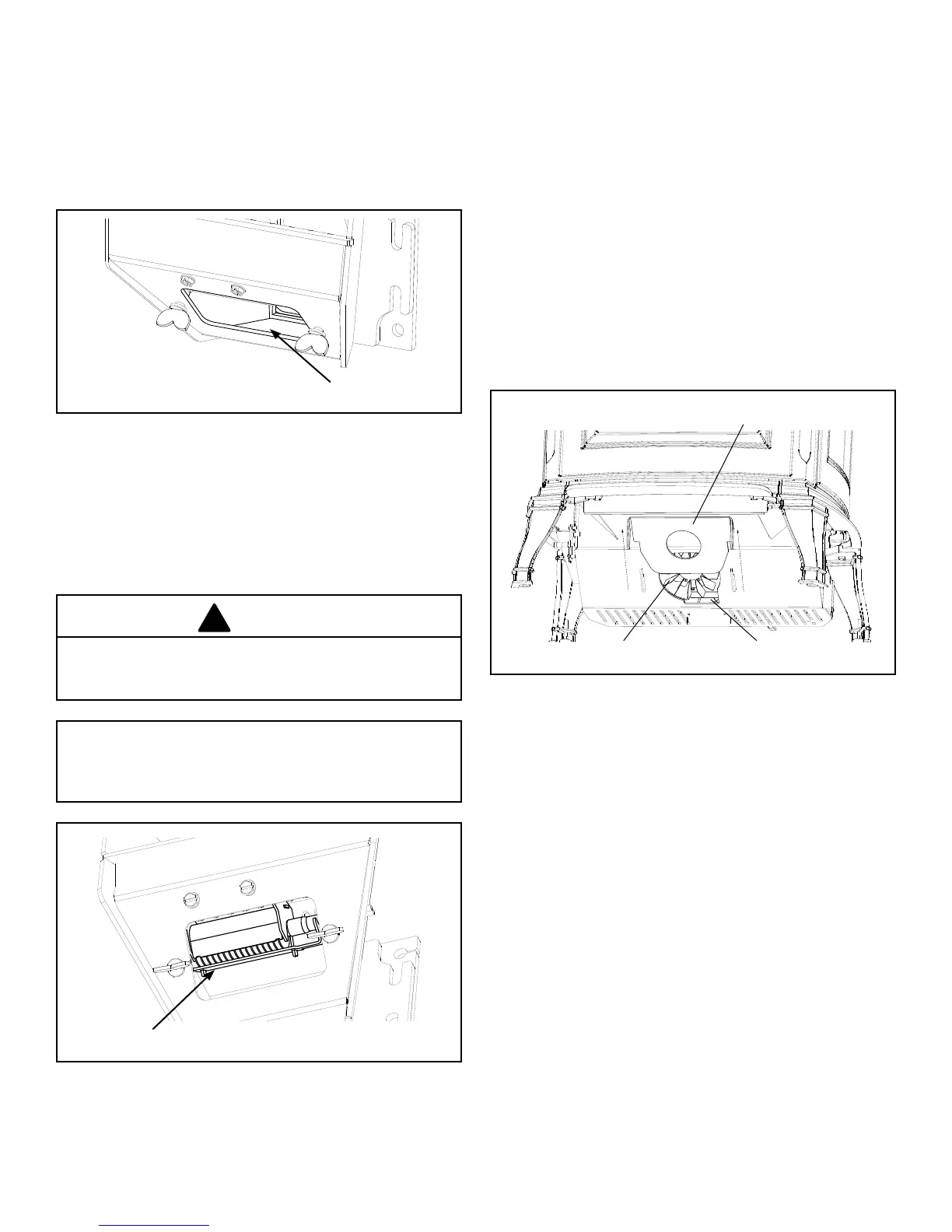

Figure 2.6
• Liftofftheclean-outcovertoopenthebottomclean-out
chamber. Figure 2.5
• Clean ash buildup from inside the chamber while cover
is off. Use the scraper to tap on the top front edge of the
burn pot. This will help knock pieces of ash, loosened by
the scraping process, down through the holes. It also helps
knock ash buildup from the igniter element and bracket.
Clean Ash Accumulation
Figure 2.5
Cleaning Igniter Bracket-
Check cleanliness of the igniter and inner burnpot. If the
igniter has ash buildup it must be removed to insure proper
ignition. Use the provided brush to remove ash buildup from
inandaroundtheigniter.Onceashisloosevacuumaround
igniter and at the base of burn pot. Figure 2.6.
Note: The hot lead/cold lead connection must always
be pulled to the rear of the feeder body before
operation.
Use caution when cleaning burn pot clean-out
chamber. Do not damage the high temperature igniter
wires.
WARNING
!
Clean Ash Accumulation
Figure 2.6
Yearly Maintenance: Cleaning the Combustion Fan
Chamber-
The combustion inlet cover is located behind the ash pan
that must be removed to properly clean the combustion fan
blade. Figure 2.7.
• Remove combustion inlet cover by pulling up on cover.
This allows access to the combustion fan blade and
exhaustpath.Figure2.7.
• Removeanyyashordebristhathascollectedaround
combustion fan blade with the provided paint brush.
• Cleanexhaustpassage.Figure2.7.
NOTE: The ESP Sensor is located just inside the exhaust
passage. Be sure not to damage the ESP Sensor while
cleaning the exhaust passage.
• Oncecleanedreplacecombustioninletcoverandashpan.
Exhaust PassageCombustion Fan Blade
Combustion Inlet Cover
Figure 2.7
