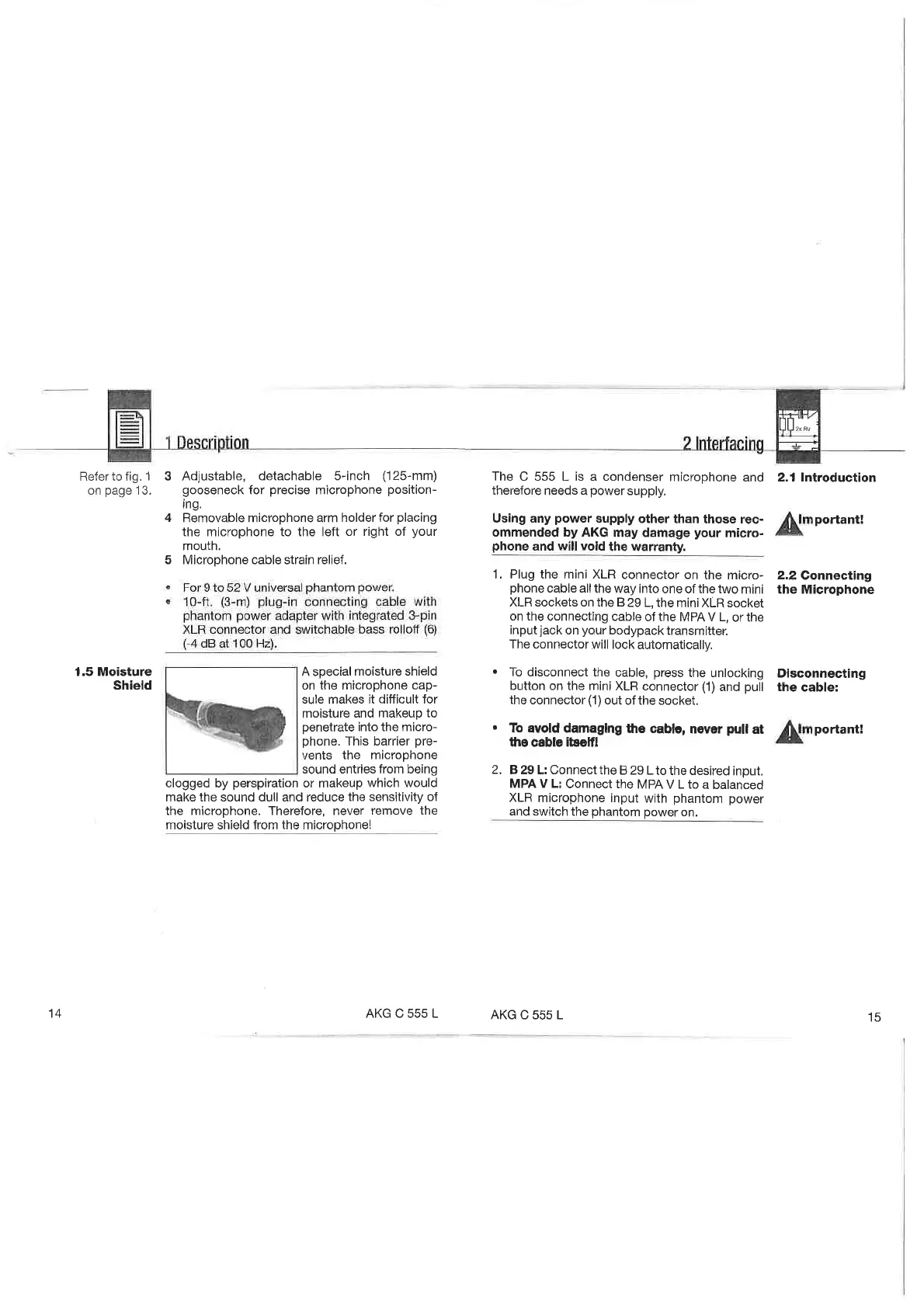

Refer to fig.
1
on
page
1 3.
1.5 Mo¡sture
Shield
.
For 9 to 52 V universal
phantom
power.
.
10-ft.
(3-m)
plug-in
connecting
cable with
phantom power
adapter with
integrated S-pin
XLR connector and switchable
bass rolloff
(6)
(-4
dB at 100 Hz).
3 Adjustable,
detachable 5-inch
(125-mm)
gooseneck
for
precise
microphone
position-
ing.
4 Removable microphone arm
holder for
placing
the microphone to the left
or right of
your
mouth.
5 Microphone cable strain relief.
A special
moisture shield
on the microphone
cap-
sule makes
it difficult for
moisture
and makeup to
penetrate
into the micro-
phone.
This barrier
pre-
vents the
microphone
sound
entries from being
clogged by
perspiration
or makeup
which would
make the sound dull and reduce
the sensitivity of
the microphone. Therefore, never
remove the
moisture shield from the microphonel
AKG
C
555 L
The
C 555 L is a condenser
microphone
and 2.1 lntroduction
therefore
needs a
power
supply.
¡[mnortant!
Using any
power
supply other
than those reo-
ommended
by
AKG
may
damage
your
micro-
phone
and will vold
the warranty.
1. Plug the mini XLR
connector on
the micro-
phone
cable all the way into
one of the two
mini
XLR sockets on the
B 29 L, the
mini XLR
socket
on
the
connecting cable
of the MPA
V L, or the
input
jack
on
your
bodypack
transmitter.
The connector
will
lock
automatically.
r
To disconnect the
cable,
press
the unlocking
button
on
the mini
XLR
connector
(1)
and
pull
the
connector
(1
)
out of the socket.
2.2 Gonnecting
the Microphone
Disconnecting
the cable:
.
To avóld
the
cable
damaglng
¡ts6lfl
füe
cablc, never
pull
at
¡l¡mnortantl
14
2. B29Lt Connect
the B 29 L
to the desired
input,
MPA V
Ll Connect the
MPA V L
to a balanced
XLR
microphone input
with
phantom
power
and
switch the
phantom
power
on.
AKG C
555
L
15
