Harman dbx DJdi User Manual

3
DJdi DIRECT BOX

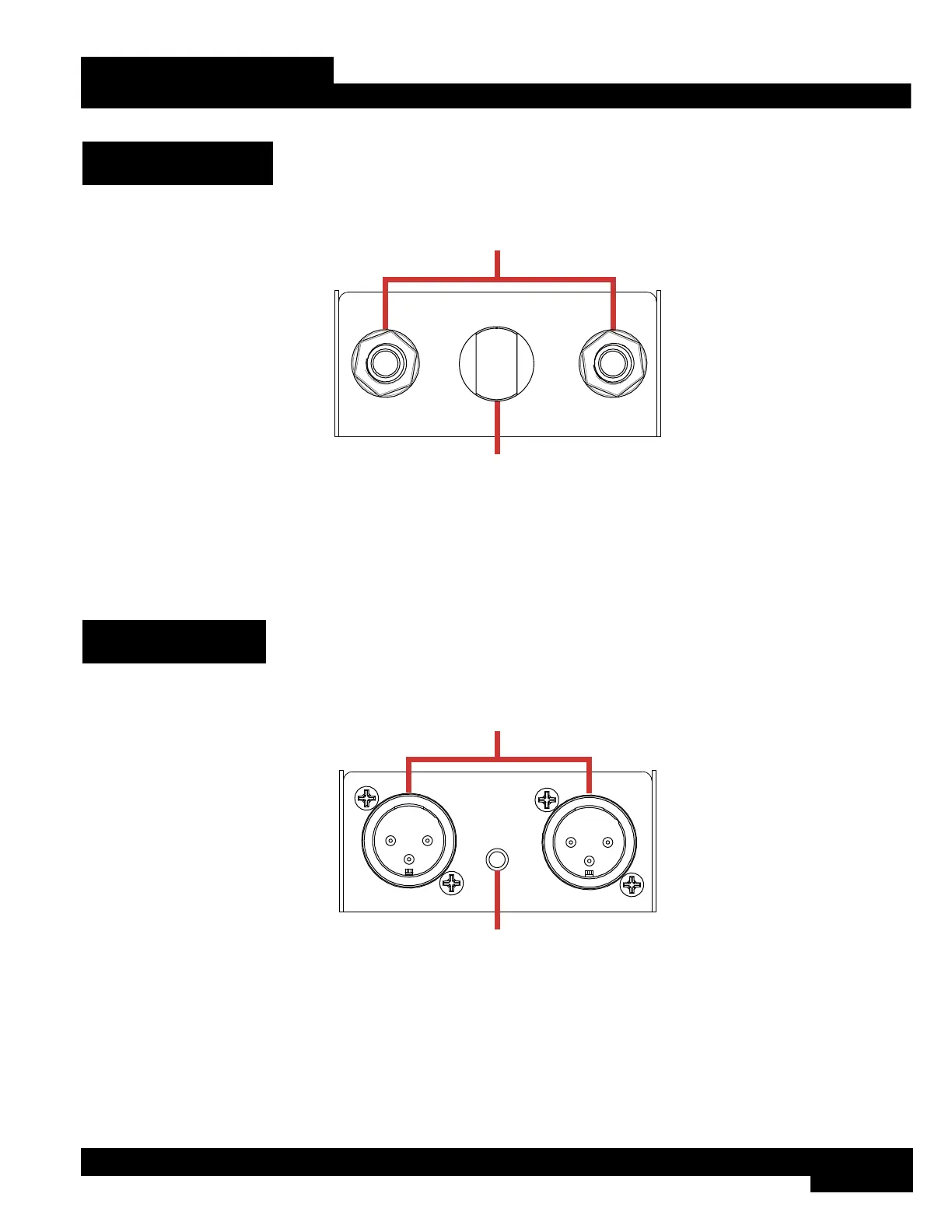

Front Panel
1
2
1� INPUTS - Connect your signal sources to these 1/4” unbalanced TS connectors
2� VARIABLE INPUT ATTENUATOR CONTROL – Use this control (if necessary) to attenuate high signal level sources.
Rear Panel
1
2
1� BALANCED OUTPUTS - Connect these balanced XLR connectors to an XLR input on your mixer
2� GROUND LIFT SWITCH – By switching this out to the ON position, the internal connection to the output pin 1 is
removed, isolating the DJdi’s grounding system from the rest of the system. This eliminates many “hum” or “buzz”
problems due to ground loops.

Harman dbx DJdi Specifications

General

Brand	Harman
Model	dbx DJdi
Category	Recording Equipment
Language	English
