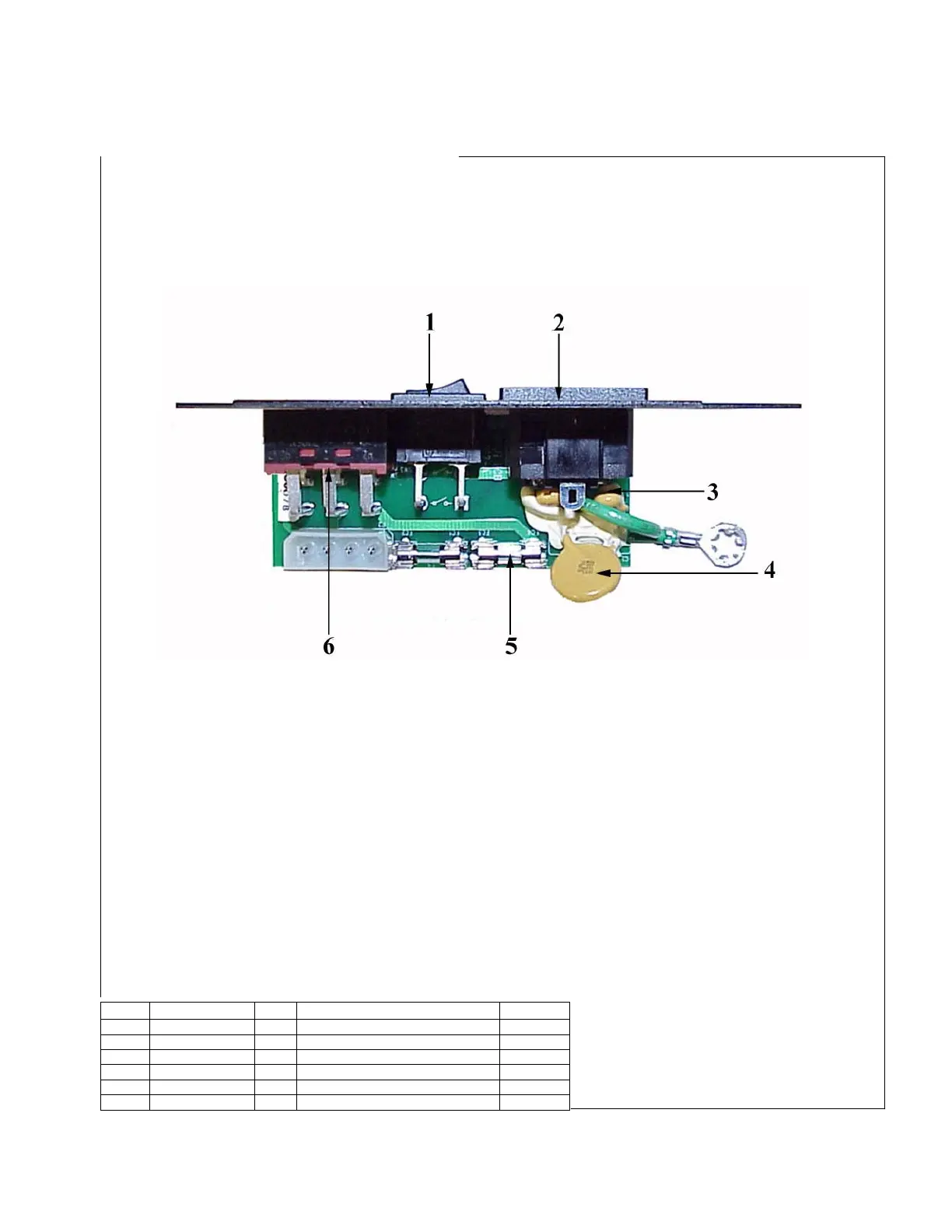

Pictorial Of Power Input PCB Assembly

Component Parts List

Item Part No. Qty Description Ref.Des

1 44-0004 1 Switch Power SW3

2 32-1244 1 Con Plug AC Receptacle 3 Pin P1

3 62-0049 2 Cap 1000 pf Cer 250 V 20% C2,C3

4 62-0048 1 Cap 0.01 Mf Cer 250V 20% C1

5 32-3189 2 Fuse 2.5A Time Lag AV 2AG F3,F4

6 44-0015 1 Switch Voltage Select 115V /230V SW2
