Harman JBL EON10-G2 User Manual

EON10G2

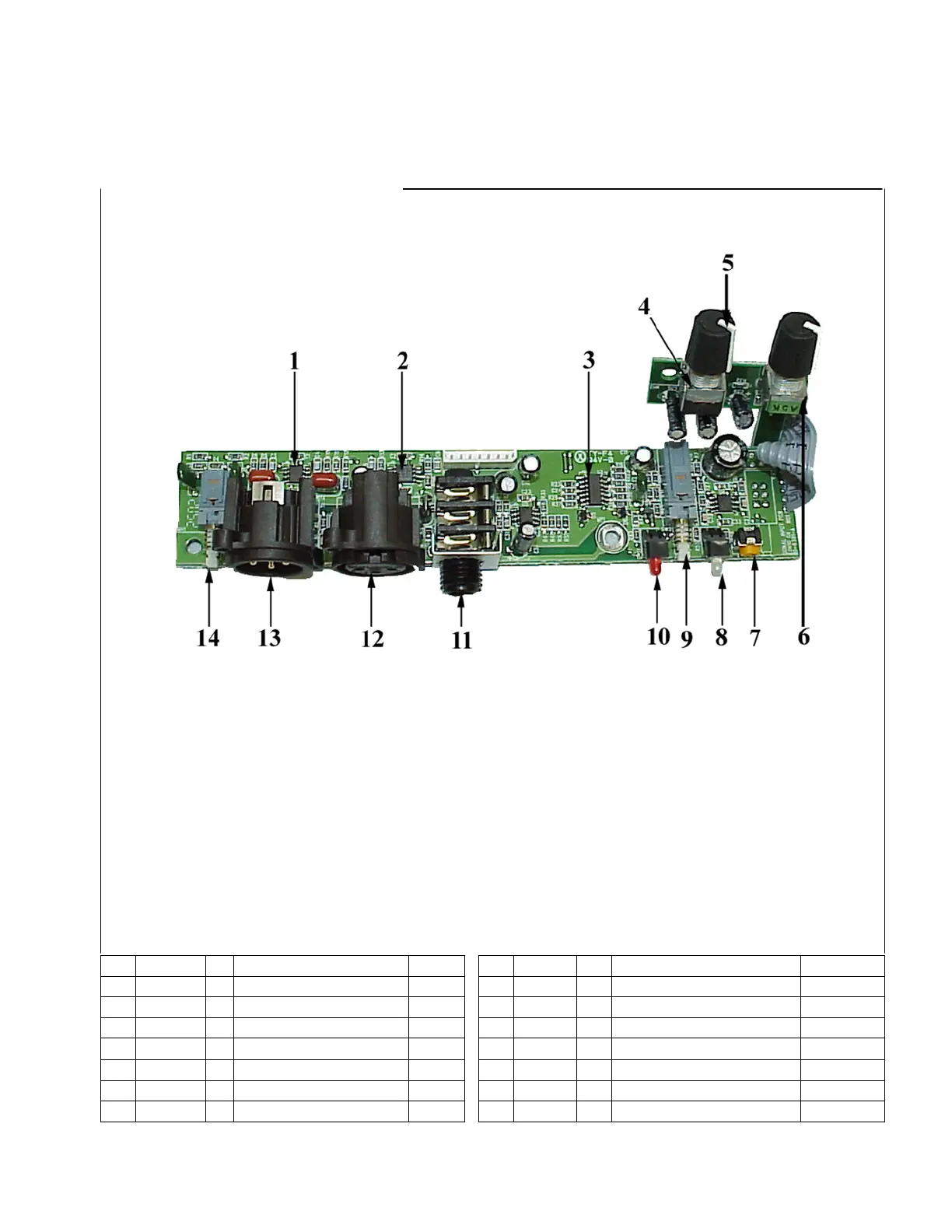

Pictorial Of Input PCB Assembly
Component Parts List
Item Part No. Qty. Description Ref.Des. Item Part No. Qty. Description Ref.Des.
1 72-1480 3 IC NJM 4580 SM U1,U4,U5 8 70-1911 1 LED Multi-color Red/Grn DS2
2 72-1439 1 IC 5532 SM U2 9 44-0051 1 Switch 4 PDT , 12 Pin E switch SW2
3 72-1450 1 IC TL074 SM U3 10 70-1902 1 LED Red DS1
4 40-0083 1 Pot 5k C 9mm Hor 15mm VR3 11 32-0119 1 Con,Jack ¼ Phone J3
5 34-0043 2 Knob 12 32-213 1 Con Jack XLR R/A PCA A Series J2
6 40-0082 1 Pot 5K A 9mm Rot 12.5 mm VR2 13 32-0204 1 Con, Plug XLR J1
7 42-0006 1 Pot 10K Side Adjust BK VR1 14 44-0050 1 Switch DPDT , 6 Pin SW1
