EON10G2

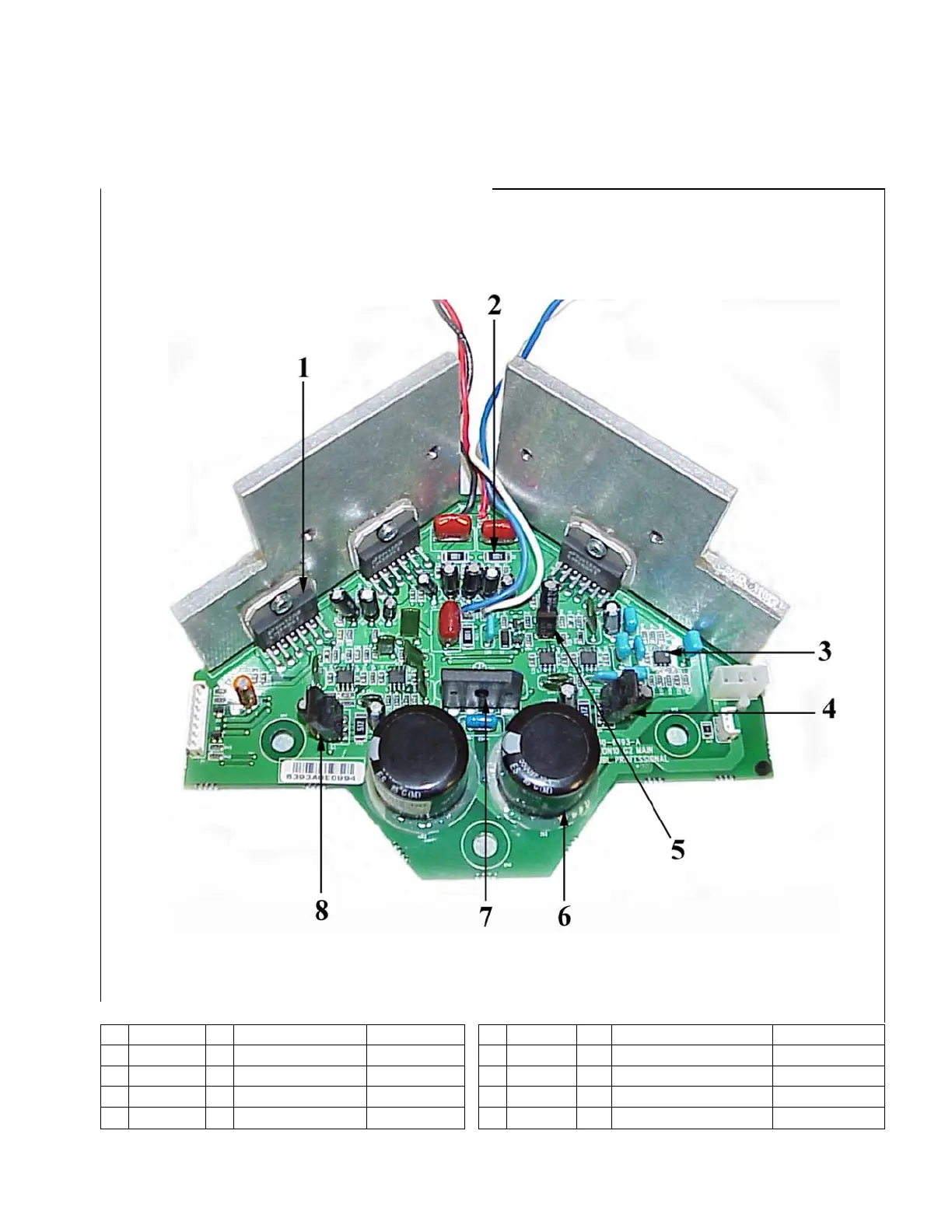

Pictorial Of Main Amplifier PCB Assembly

Component Parts List

Item Part No. Qty. Description Ref.Des. Item Part No. Qty. Description Ref.Des.

1 72-0015 3 IC LM 3886T U3,U1,U2

5 70-0037 1 XSTR 2SA1370 PNP Q2

2 50-0057 3 Res 10 Ohm 5% SM R1,R2,R23

6 60-0003 2 Cap 5600 MF 50V 20% C62,C63

3 72-0148 5 IC NJM 4580 U4-U8

7 70-0094 1 Diode Bridge Rect 200V 10A BR1

4 70-0034 1 XSTR 2SD1763A NPN Q4 8 70-0033 1 XSTR 2SB1186A PNP Q3
