Harman JBL EON700 Series - Mixer Panel; Mixer Panel Component Identification

13

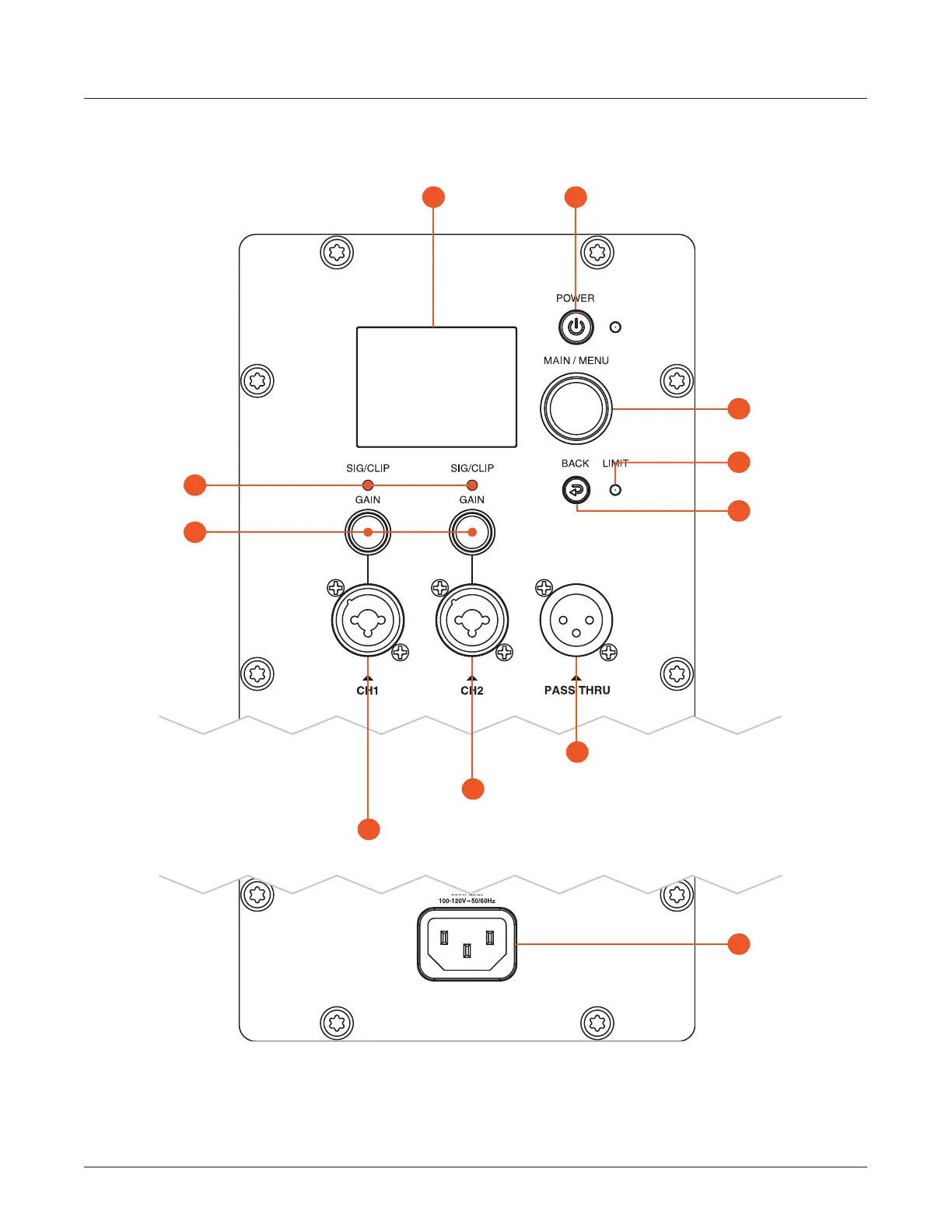

MIXER PANEL
LCD Panel
CH 1 &
CH 2
Signal
Clip LED
CH 1 &
CH 2
Gain
Power
XLR Male Loop Thru
CH 2 XLR-1/4” Combo
CH 1 XLR-1/4” Combo Input
Main
Volume
/ Menu
Navigation
Limit LED
Back Button
AC Power
Connector
BA
F
C
E
J
K
I
H
G
D
