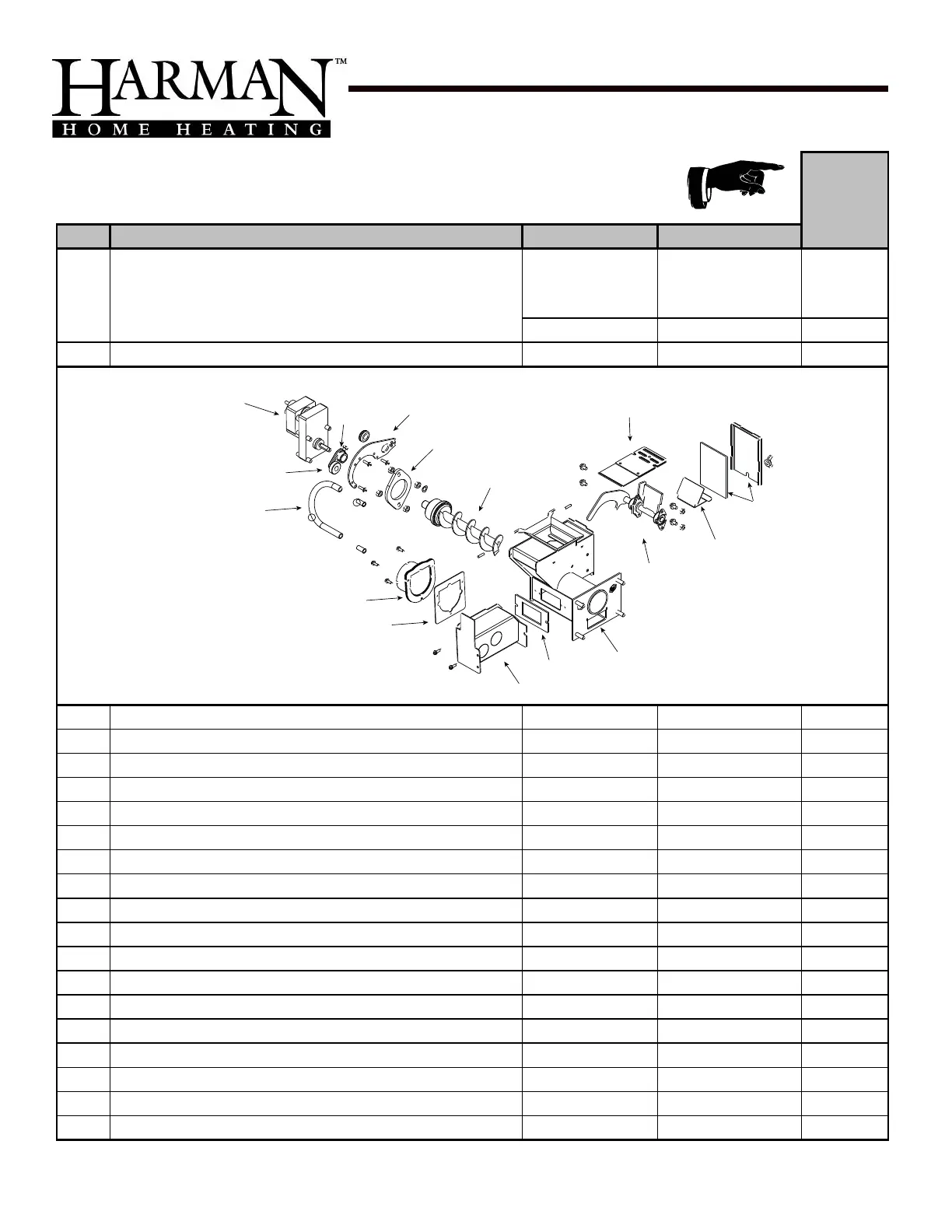

1 Hopper Assembly
Pre 008084166,
must order all parts
1-10-09537A
1-00-232108
2-00-06952B
Post 008084166 1-10-09537A
Hopper Switch 48” Post 008084166 3-20-232108
2 Feeder Assembly 1-10-09535A
2.1
Pellet Feeder Gear Motor, 4RPM 3-20-60906
2.2
UL Feeder Cam Bearing 3-31-3014
2.3
9MM Silicone Tube 1-00-511427
2.4
Pellet Air Intake Assembly 1-10-06810A
2.5
Gasket Feeder Air Intake Pkg of 6 3-44-72224-6
2.6
UL Feeder Air Intake 1-10-72222
2.7
Gasket Ultra Air Intake Pkg of 10 3-44-677160-10
2.8
Ultra Feeder Weldment 1-10-724132
2.9
UL Feeder Pusher Arm 1-10-677131W
2.10
Fines De ector
2-00-677138-10
2.11
Gasket, UL Feeder 1-00-677122
2.12
Slide Plate Assembly 1-10-677121A
2.13
UL Feeder Auger Assembly 3-50-00565
2.14
Bearing Flange w/Hardware 1-00-04035
2.15
UL Feeder Gear Motor Bracket w/Grommet 1-00-247406
2.16
UL Feeder Cam Block 3-00-677154
Gasket, Hopper Throat 3-44-677185
Additional service parts on following page.
