Harman P61 Installation Manual

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/1818 3-90-436168i
Outside air ex
pipe goes here.
Outside Air:
Hearth & Home Technologies recommend attaching
outside air in all installations, especially lower level and
main oor locations.
Per national building codes, consideration must be given to
combustion air supply to all combustion appliances. Failure
to supply adequate combustion air for all appliance demands,
may lead to back-drafting of those and other appliances.
When the appliance is side-wall vented: The air intake is best
located on the same exterior wall as the exhaust vent outlet
and located lower on the wall than the exhaust vent outlet.
When the appliance is roof vented: The air intake is best
located on the exterior wall oriented towards the prevailing
wind direction during the heating season.
The outside air connection will supply the demands of the
pellet appliance, but consideration must be given to the
total house demand. House demand may consume some
air needed for the stove, especially during a power failure. It
may be necessary to add additional ventilation to the space in
which the pellet appliance is located. Consult with your local
HVAC professional to determine the ventilation demands for
your house.

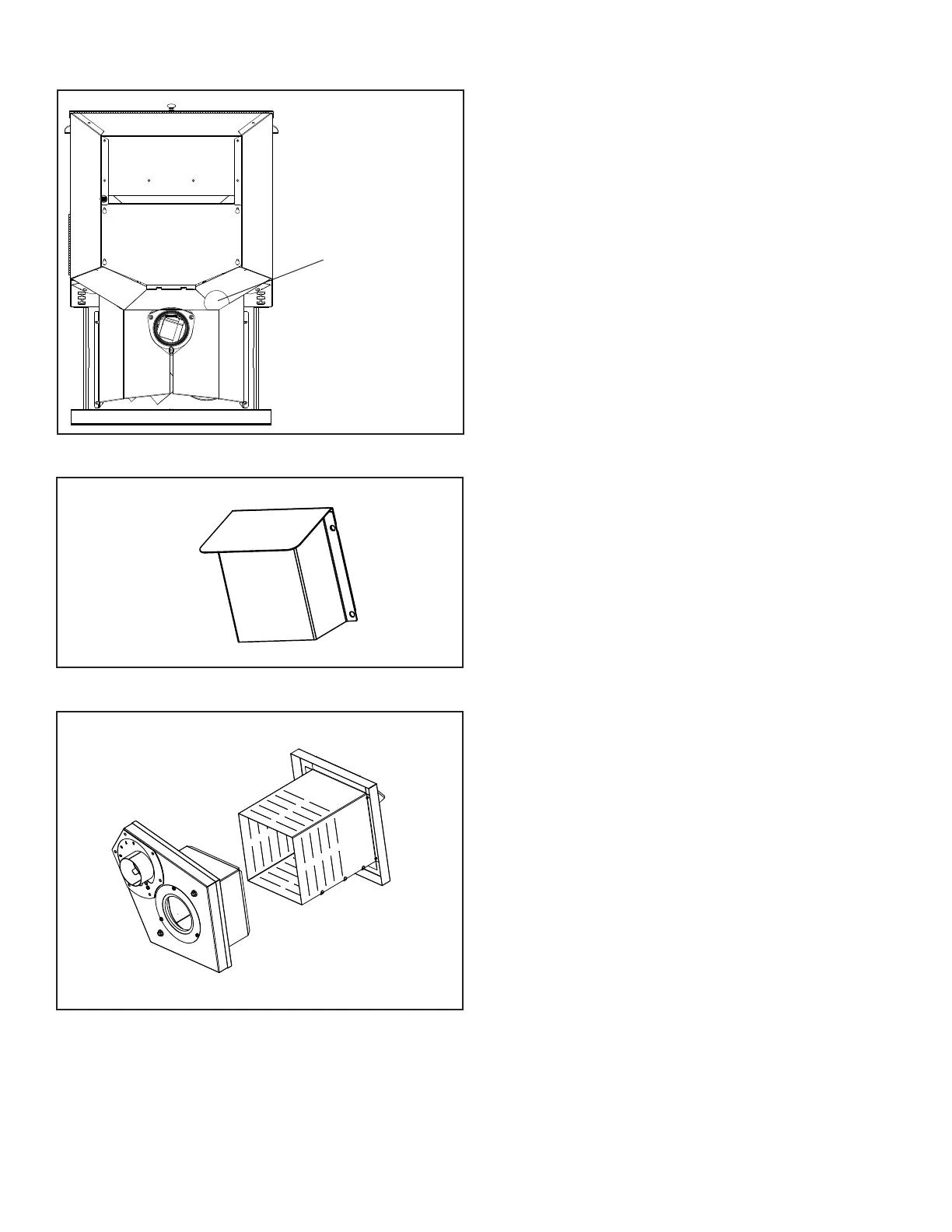

Toinstalloutsideairuse3".non-combustibleexpipeFigure
4.13. There is a break-away hole on the rear panel of the
P-Series stove which must be removed before connecting
theexpipe.Figure4.12.Thepipeshouldberunoutsideand
terminatetothesideorbelowtheventpipeoutletsotheue
outlet is more than 12" from the inlet cover. The Termination
Cap should be used to keep birds, rodents, etc. out of the
pipe Figure 4.13.
You may choose to use the optional Direct Vent Wall Pass-
through Kit which incorporates the venting pass-through and
outside air inlet into one component. Figure 4.14.
Use silicone to create an effective vapor barrier at the
location where the chimney or outside air ducting passes
through to the exterior of the structure.
Direct Vent Wall Pass-through Kit
(Part #1-00-677177)
D. Outside Air
Figure 4.12
Figure 4.14
Termination Cap
part# 1-10-09542
Figure 4.13

Harman P61 Specifications

General

Blower	Yes
Ash Pan	Yes
EPA Certified	Yes
Type	Pellet
Weight	320 lb
