Harman P61 - Appliance Dimension Diagram

Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/188 3-90-436168i
3
Clearances
Figure 3.1

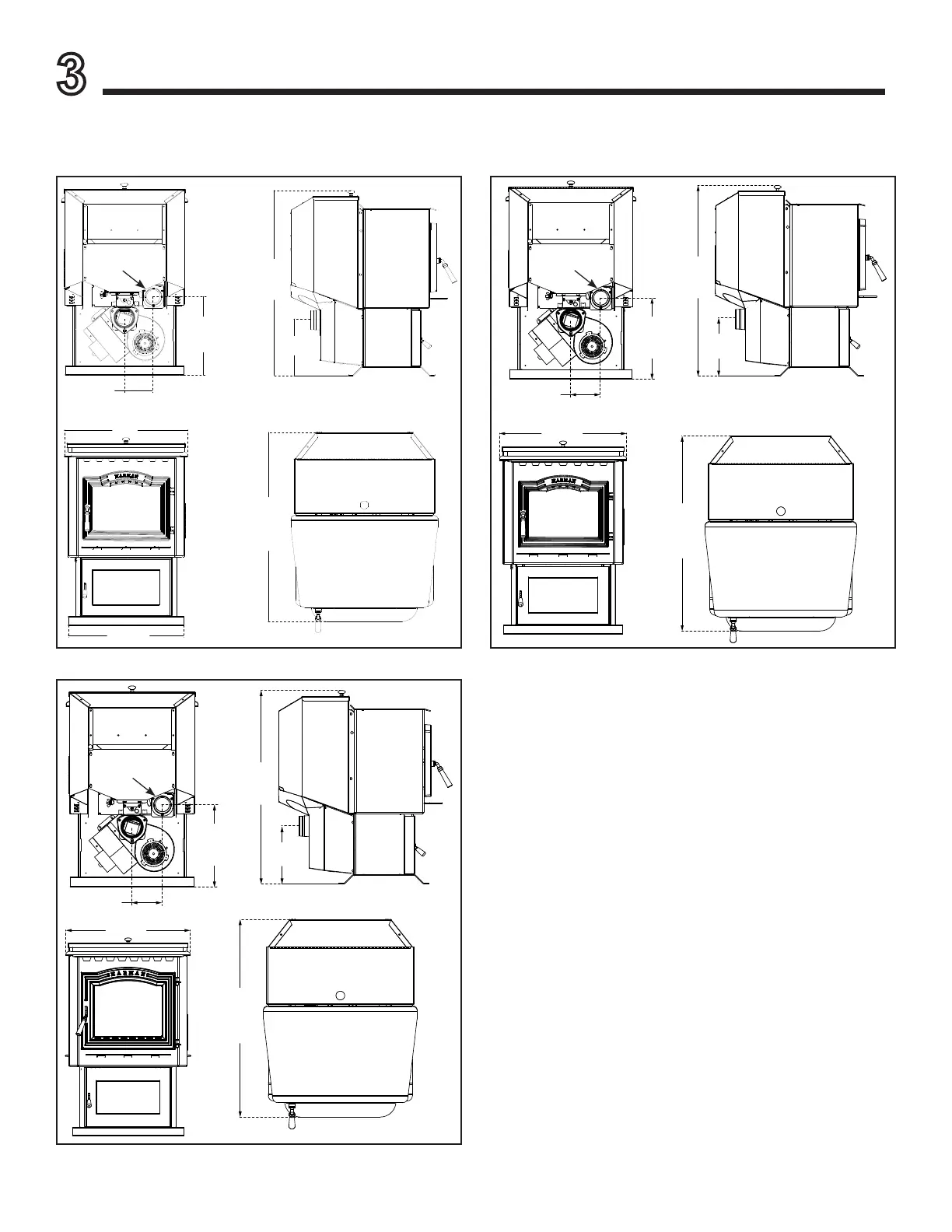

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only.
20 3/4"
22"
10"
33 1/2"
5 1/8"
13 3/4"
28 5/16"
Outside
Air Intake
P43 Freestanding Pellet Stove
23 1/2"
10 "
36 1/2"
5 1/8"
13 3/4”
29 3/8"
Outside
Air Intake
P61A Freestanding Pellet Stove
10 "
37 1/2”
5 1/4"
13 3/4”
29 3/8"
23-1/2”
Outside
Air Intake
P68 Freestanding Pellet Stove
