Feeder Chamber
This chamber may get a buildup of nes fromthe feeder
mechanism movement. This area should be checked and
cleaned at least once a year.
To remove the feeder cover:
• Loosen the 5/16" wing nut. Figure 5.8.
• Lift up and slide the cover off of the threaded stud.
• Inspect and clean the inner chamber if necessary Figure
5.9.
• Reinstall the cover making certain it is seated properly on
the feeder body and tighten as tightly as you can by hand.
NOTE: Views are shown with the rear motor covers
removed.

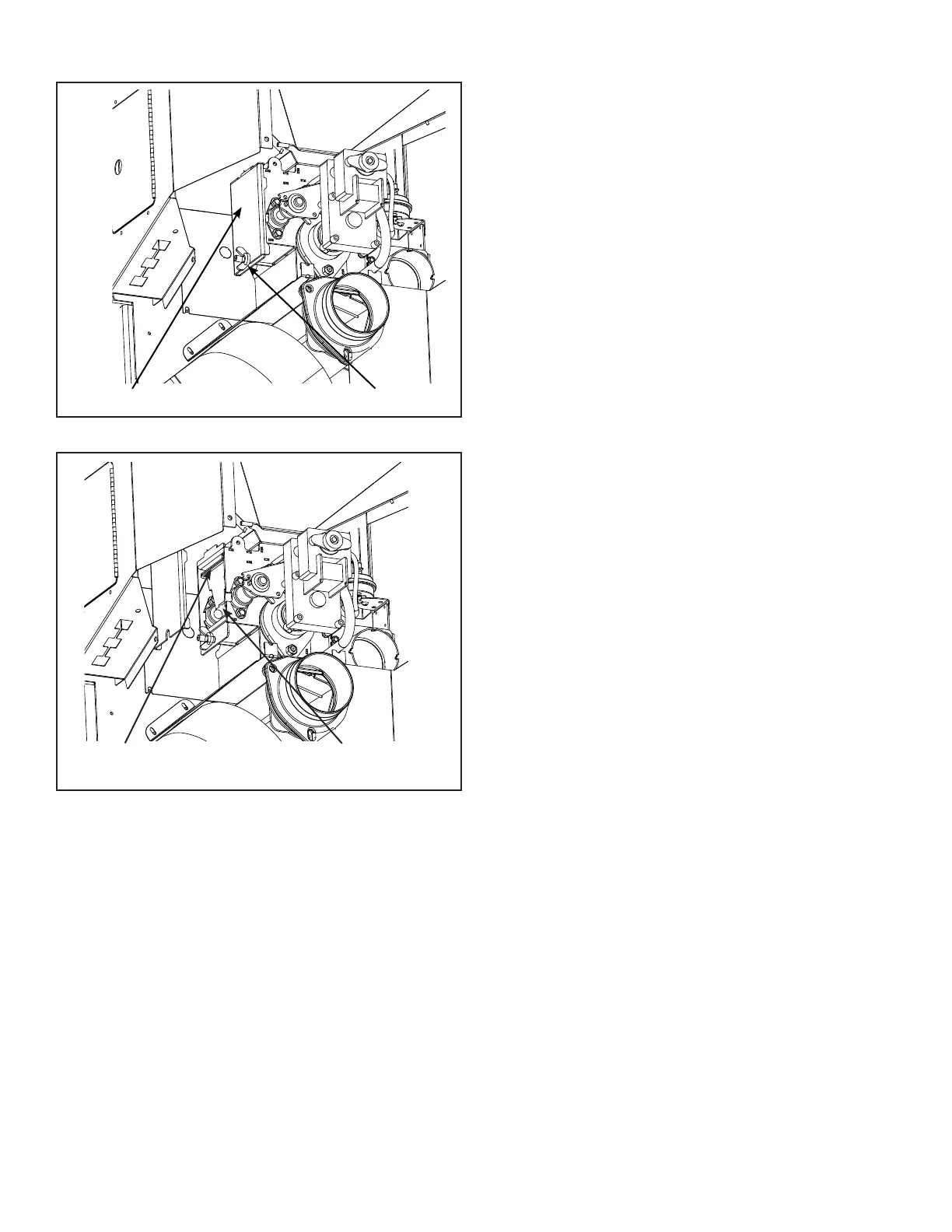

Figure 5.9
Pellet Metering
Slide Plate
Possible pellet nes
buildup area.
5/16" Wing NutFeeder clean out cover
Figure 5.8
G. Pellet Feeder Chamber
