Harman P68 - Venting; Vent Configurations; Venting Recommendations

10
P68 Pellet Stove
#2 Preferred method
This method also provides excellent venting
for normal operation but requires the stove to be
installed farther from the wall. The vertical portion
oftheventshouldbethreetovefeethighandat
least three inches from a combustible wall. This
vertical section will provide natural draft in the event
of a power failure.
If the stove is installed below grade be sure the
vent termination is at least 18" above grade. The
outlet must also be 1 foot from the house/building.
Note: Do not place joints within wall pass-
throughs.
CAUTION
Keep combustible materials (such as grass,
leaves, etc.) at least 3 feet away from the ue
outlet on the outside of the building.

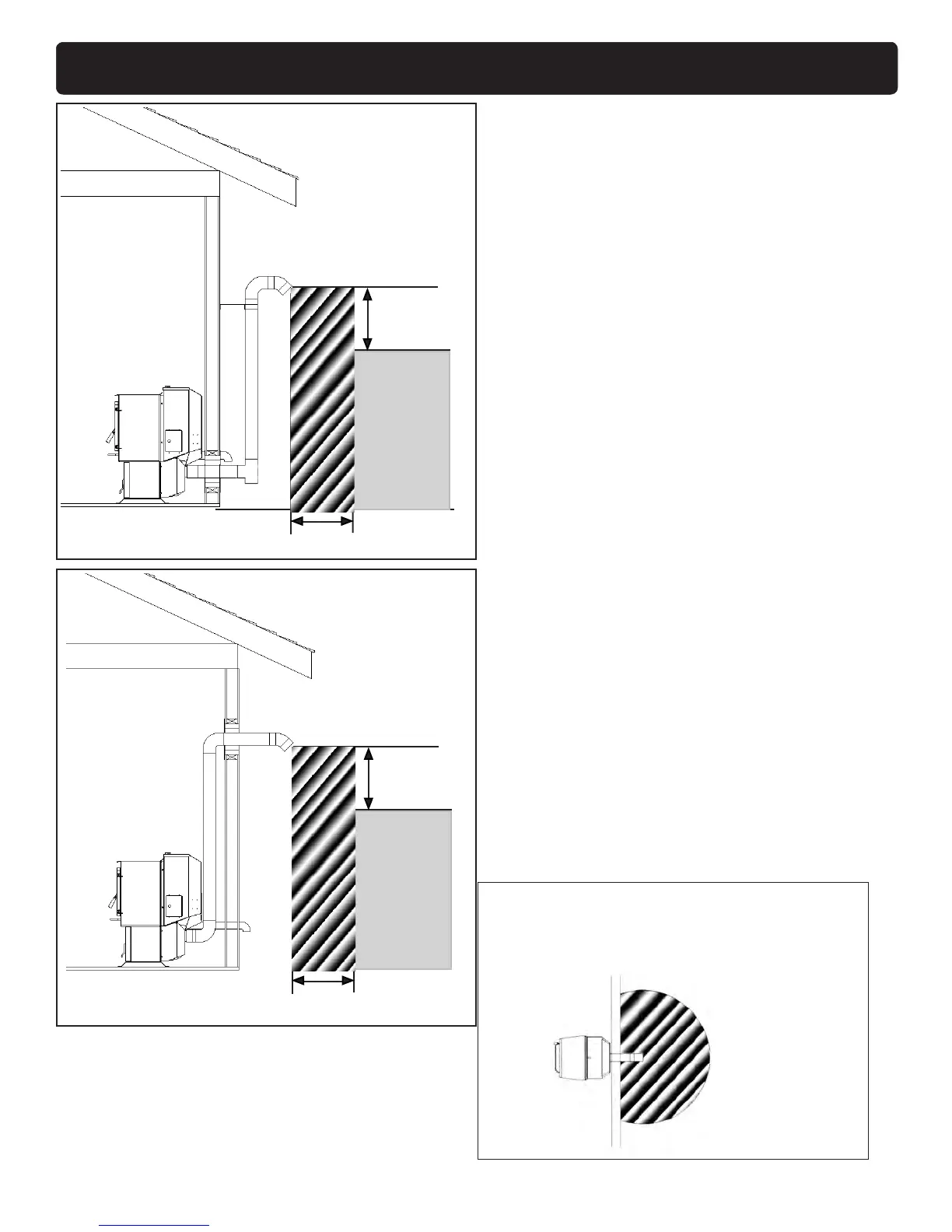

#1 Preferred method
This method provides excellent venting for
normal operation and allows the stove to be in-
stalled closest to the wall. Two inches from the wall
is safe; however, four inches allows better access
to remove the rear panel. The vertical portion of the
ventshouldbethreetovefeethigh.Thisvertical
section will help provide natural draft in the event of
a power failure.
Note: Do not place joints within
wall pass-throughs.
Venting
Fig. 8
3 ft.
to combustibles
Fig. 9
3 ft.
to combustibles
3 ft.
to combustibles
36" min
clearance to any
combustible
material
12" min. wall to outlet
3 ft.
to combustibles
