P68 Pellet Stove
#4 Installing into an existing
chimney
This method provides excellent venting for
normal operation. This method also provides
natural draft in the event of a power failure. If the
chimney condition is questionable* you may want
to install a liner as in method #7.
*The chimney should be inspected and cleaned
before installing your stove. If you discover that the
chimney does not have a clay tile liner or has cracks
orakingofthetilelineryouwillneedtoinstalla
stainless steel liner within the chimney. In most cases
the inside diameter of this liner should be 4". Either
exibleorrigidlinermaybeusedforthispurpose.
Refer to Method 6 & 7.
Be sure to design the venting so that it can be easily
cleaned.
#5 Installing into an existing
replace chimney
This method provides excellent venting for
normal operation. This method also provides natural
draft in the event of a power failure. If the chimney
condition is questionable* you may want to install a
liner as in method #6.
*The chimney should be inspected and cleaned
before installing your stove. If you discover that the
chimney does not have a clay tile liner or has cracks
orakingofthetilelineryouwillneedtoinstalla
stainless steel liner within the chimney. In most cases
the inside diameter of this liner should be 4". Either
exibleorrigidlinermaybeusedforthispurpose.
Refer to Fig. 6 & 7.
The chimney should be sealed at the damper
usingasteelplate,orwithinsulationattherstue
tile. In both cases the connector pipe should extend
through the smoke chamber to the base or into the
rstuetile.
Be sure to design the venting so that it can be
easily cleaned.

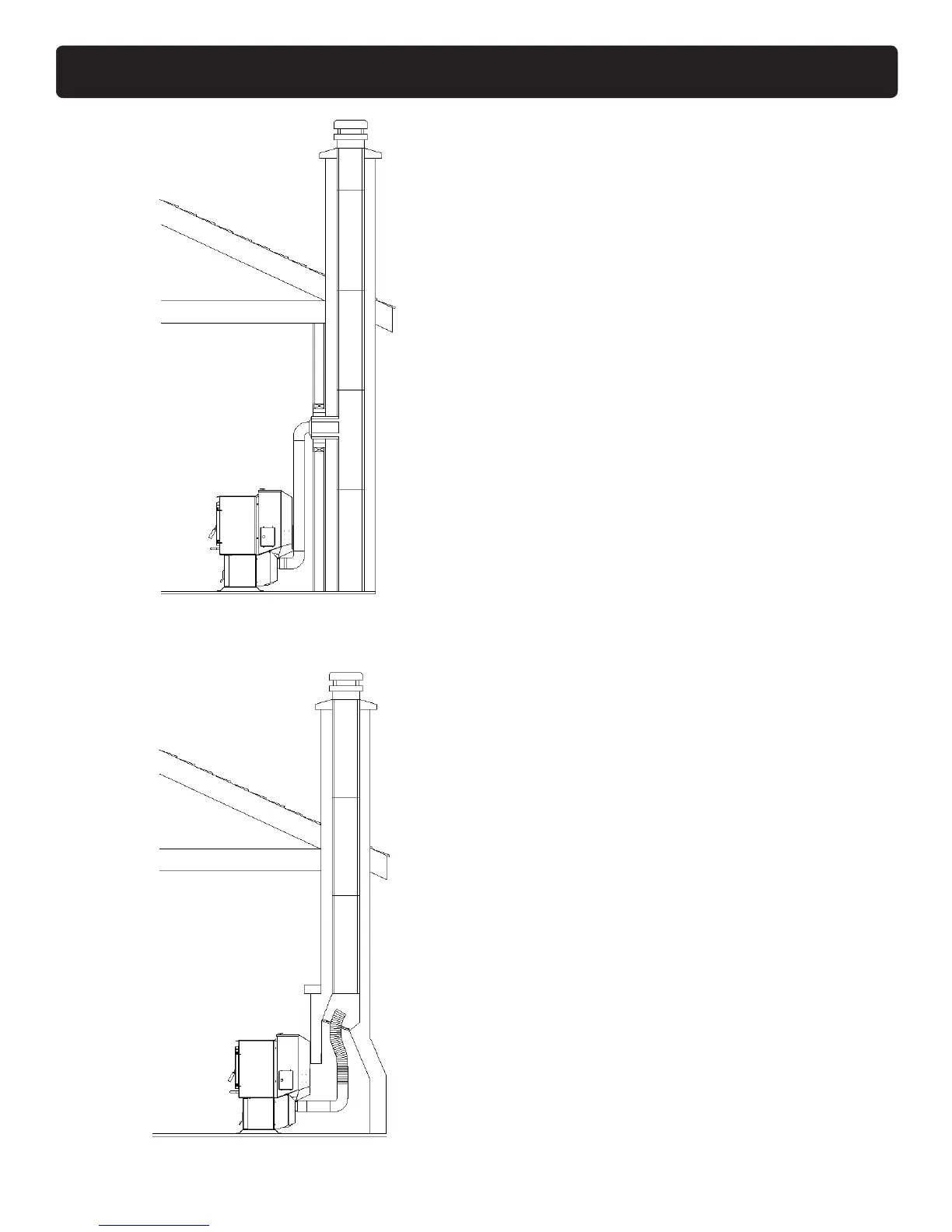

Fig. 10
Fig. 11
Venting
