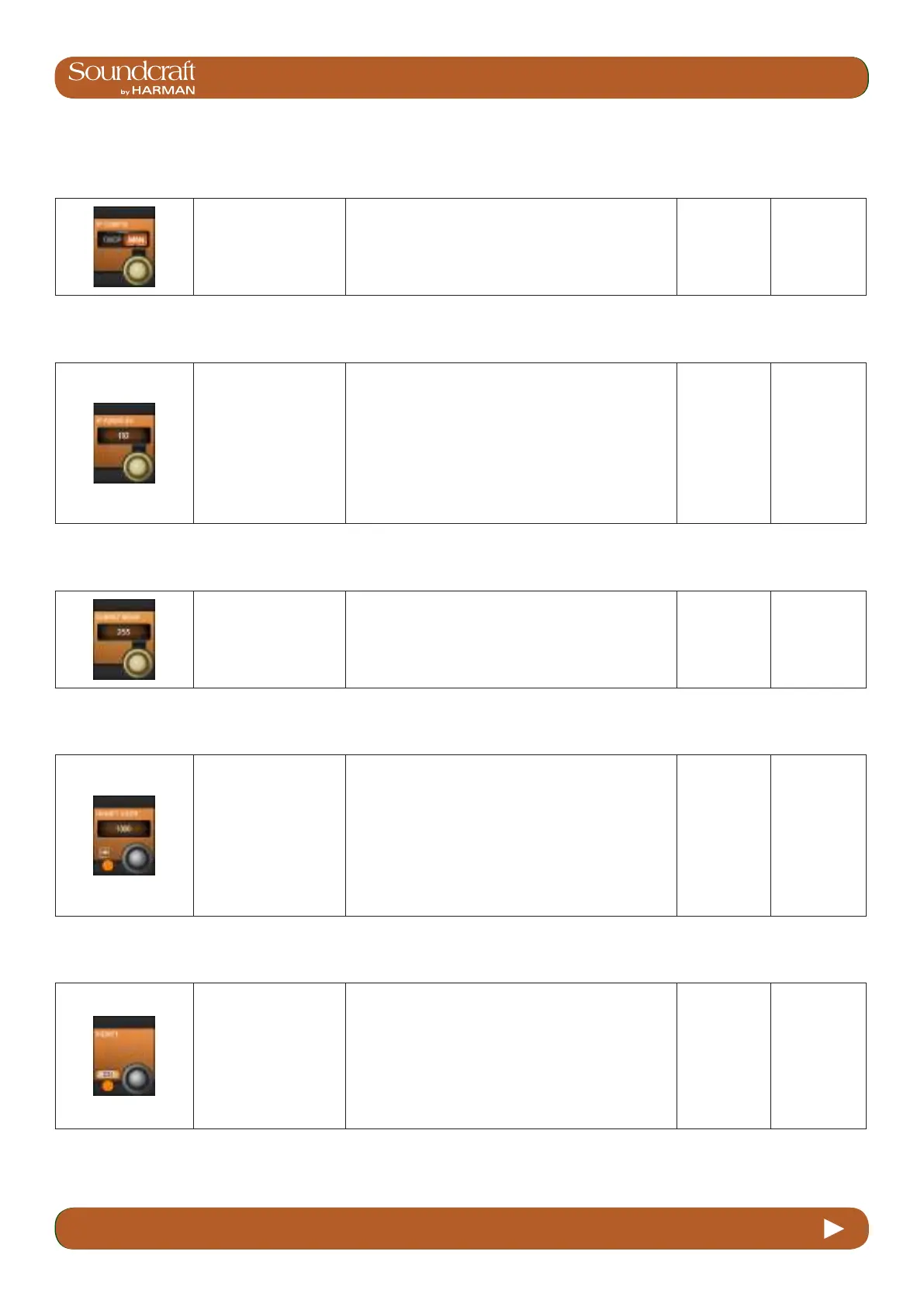

18.1 18.1: VM ² > HIQNET CONFIGURATION
18.1: VM ² > HIQNET CONFIGURATION
IP Congura-
tion Range Low Range High
Select either Dynamic
(DHCP) or Manual
(MAN) IP conifguration.
If you are using a DHCP server to automatically con-
gure the IP setup, wait for several seconds until an IP
address appears in the IP ADDRESS Vistonics control
elds. You will also see it on the far left of the HiQnet
page.
DHCP Manual
IP Address
Entry
Set IP address for the
console.
For use with Manual (MAN) IP Conguration. Use the
row of VST encoders to dial-in the required IP address
for the console.
The available ranges of valid IP addresses are 10.0.0.0
- 10.255.255.255; 172.16.0.0 - 172.31.255.255;
192.168.0.0 - 192.168.255.255. Some IP addresses
within the ranges show are not allowed due to conicts
with other parts of the Vi system – they will be greyed out
and not available for selection.
Subnet Mask
Entry
Set the subnet mask.
For use with Manual (MAN) IP Conguration. Use the
row of VST encoders to dial-in the subnet mask.
HiQnet node
address entry Active
Set the console's
HiQnet Node Address
using the keyboard edi-
tor on the touchscreen.
The HiQnet node address can be any number in the
range 1 – 65,535 but it must be a unique number within
the network in order to avoid conicts with other HPro
devices. You can use Audio Architect to nd out what the
node addresses of other equipment are.
Note that it will take up to 10 seconds for the new ad-
dress to appear after the Enter button on the keyboard
is pressed, and the console will be unresponsive during
this time –this is normal.
Activate
keyboard
entry screen.
HiQnet On Inactive Active
Enable HiQnet func-
tionality.
Once the IP address is set and the HiQnet node address
has been conrmed as unique in the network, you can
enable the HiQnet functionality by pressing the ON but-
ton in the far left Vistonics control. Enabling HiQnet will
cause all the Vistonics controls in the section to change
from greyed-out to orange. A list of information relating to
the current HiQnet setup including a green ‘OK’ indicator
is now displayed on the left side of the HiQnet Setup
page, indicating a healthy connection.
HiQnet
disabled
HiQnet
Enabled
