Harman Studer D21m User Manual

Date printed: 24.01.12
14
D21m System

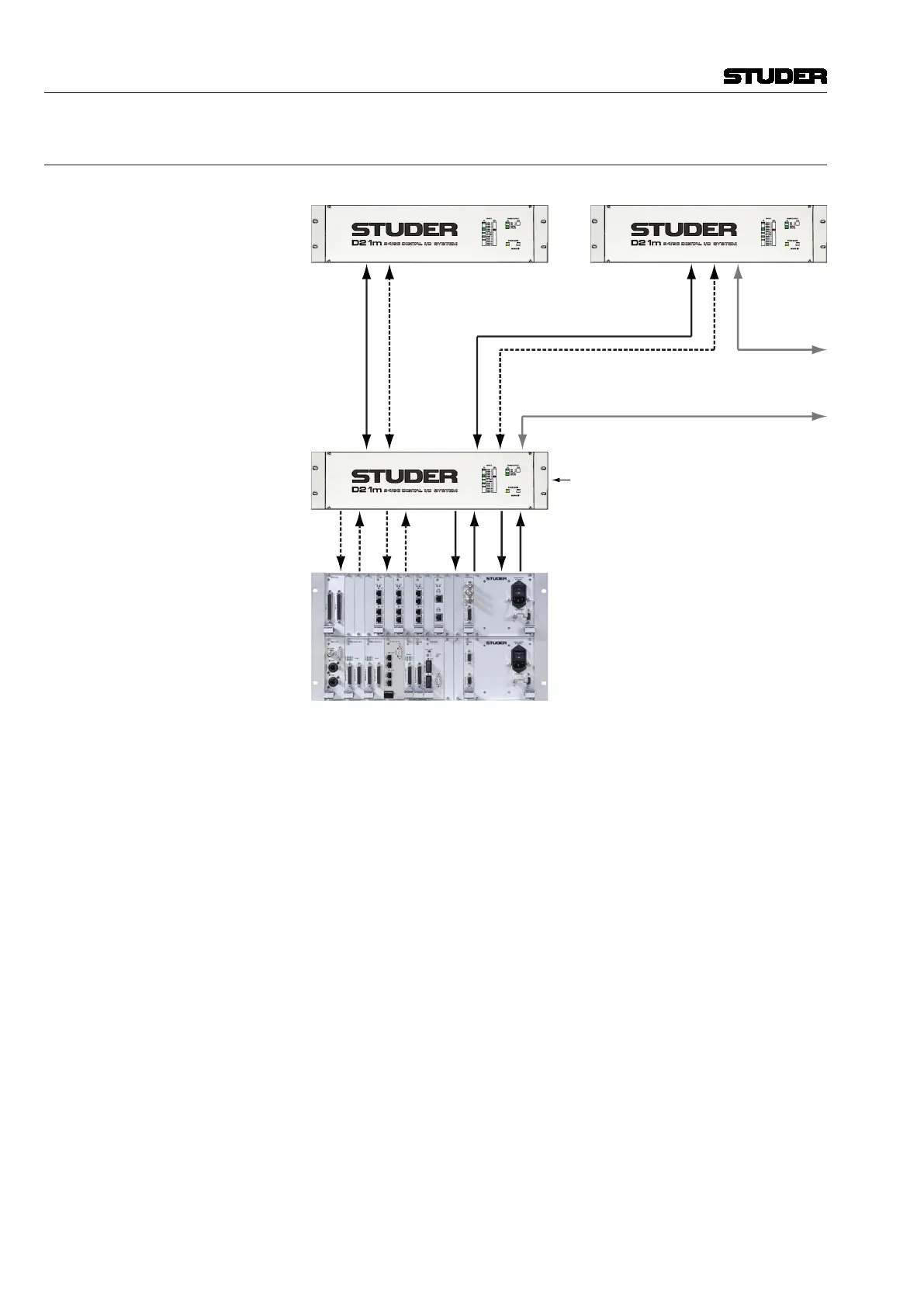

4.2 System with Remote MIDI Connection
RS422 for Mic Control
Hub
(and I/O)
Remote
I/O Boxes
96 Ch In
96 Ch Out
96 Ch In
96 Ch Out
96 Ch In
96 Ch Out
I/O Frames with Different
Types of I/O Cards
. . . .
Remote I/O Box 1 ... ... Remote I/O Box 5
0...64 Ch Optical MADI 0...64 Ch Optical MADI
(Redundancy)
96 Ch In
96 Ch Out
4...6 AES/EBU Outputs
to Monitoring Frame
0...64 Ch Optical MADI, incl. MIDI
MIDI Signal into
‘AUX’ RS422 of
Remote I/O Box
MIDI Signal to ‘AUX’ RS422 of MADI I/O Card
SCore &
I/O Frame
Any serial signal, such as MIDI or Sony 9-pin (machine control) may be
transmitted through a MADI connection without losing any audio bandwidth
or microphone control of the remote I/O box. An RS422 connector labeled
‘Aux’ can be found on the MADI I/O card (hub frame side) as well as on the
serial card of the remote I/O frame. This card is located between slot 12 and
the power supplies. The required baud rate is set on the MADI I/O (local)
and MADI HD (remote) cards.
