Dry Seasoned Wood Only! Save These InstructionsHarman® • TL300 Owner's Manual_R25 • 2007 -___ • 08/15

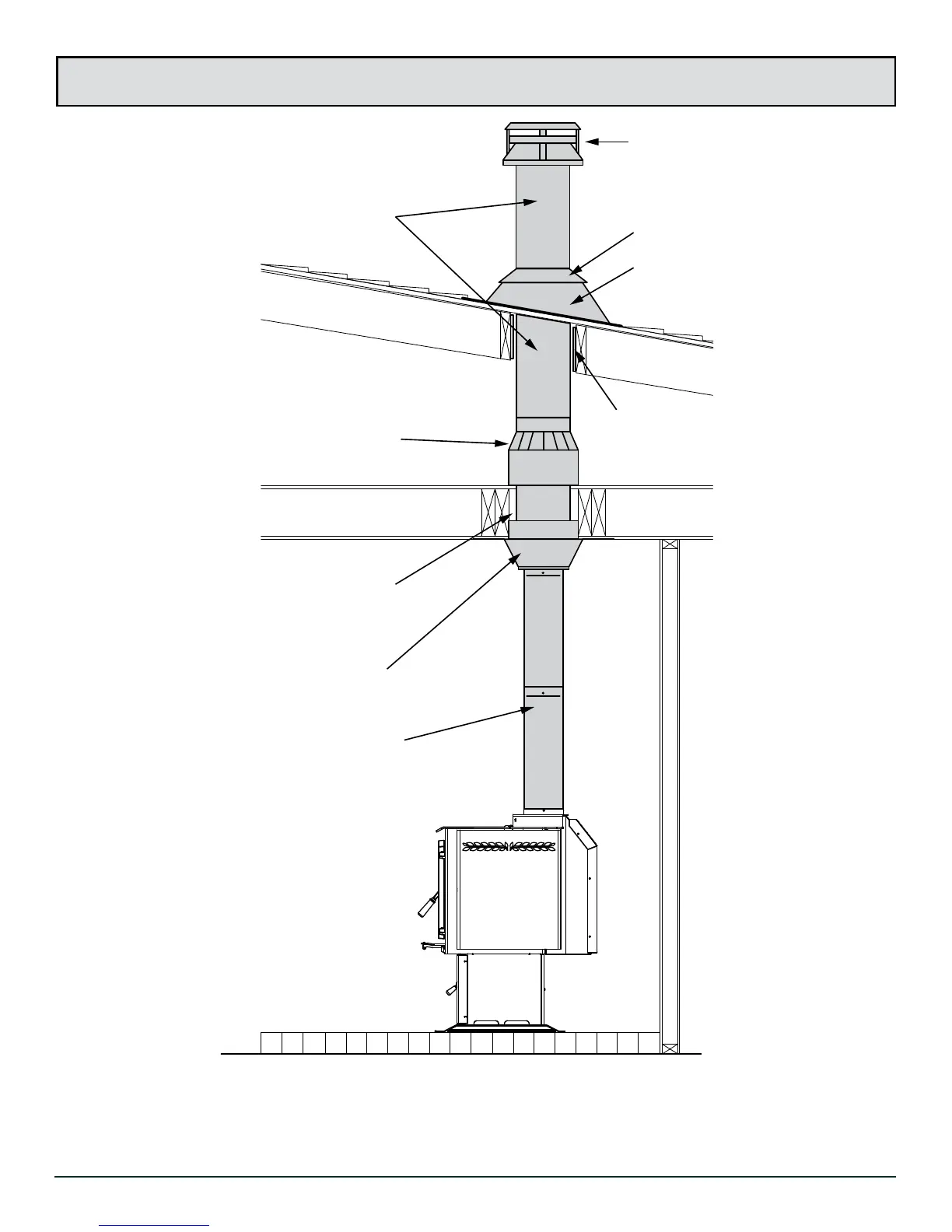

Standard Ceiling Installation with Factory Built Chimney
The Chimney Connector Shall Not Pass Through an Attic or Roof
Space, Closet or Similar Concealed Space, a Floor or Ceiling.
Chimney Connector
Minimum air space
with chimney listing
Chimney support
Attic radiation shield
Chimney sections
Chimney cap
Storm collar
Roof flashing
Roof radiation
shield
